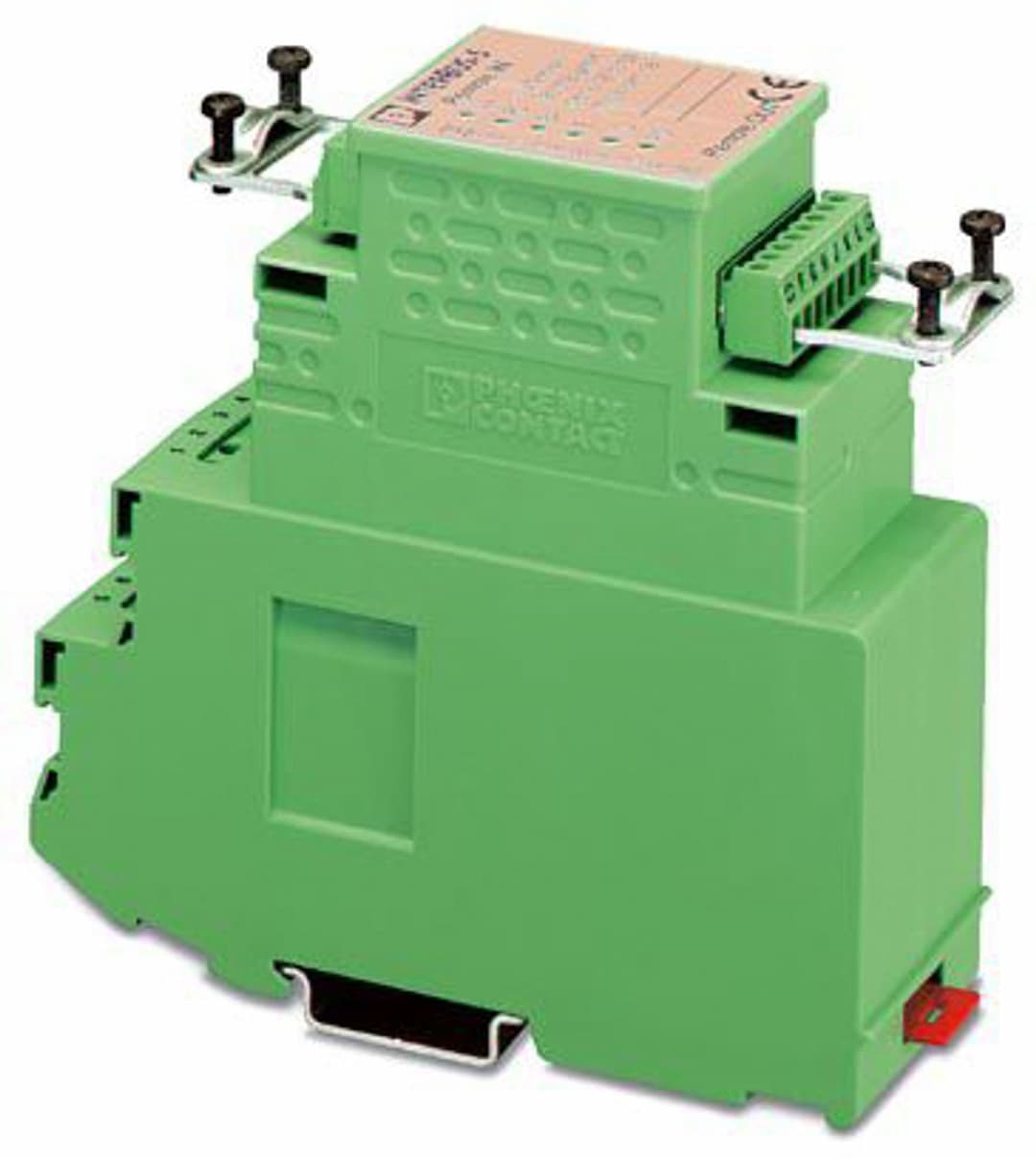

Product Model
IB ST 24 V.24
Selling Points
- 1High-current output: 500 mA per channel for demanding applications.
- 2Robust short-circuit protection: Separate electronic protection for each output channel.
- 3DIN rail mounting: Easy and secure installation on standard DIN rails.
- 4Multi-wire connection: Supports both 2-wire and multi-wire connection methods.
- 5Diagnostic indicators: Provides status and diagnostic indicators for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 44 mm | Height | 117 mm |
Color | green | Output buffer | 4 kByte |
Input buffer | 4 kByte | Connection method | ST local bus connector |
Transmission speed | 110 ... 19200 bps (programmable) | Product type | I/O component |
Product family | Smart Terminal ST | Type | modular
INTERBUS Smart Terminal |
Hardware handshake | RTS/CTS and DTR/DSR at RS-232-C | Connection method | ST local bus connector |
Designation | Communications power | Supply voltage | 9 V DC (from the ST local bus) |
Current consumption | typ. 130 mA (from the ST local bus) | Designation | U |
Supply voltage | 24 V DC | Supply voltage range | 20 V DC ... 30 V DC |
Test voltage: Interfaces/Logic | 500 V AC, 50 Hz, 1 min | Test voltage: Interfaces/24 V supply | 500 V AC, 50 Hz, 1 min |
Test voltage: Interfaces/Bus | 500 V AC, 50 Hz, 1 min | Test voltage: Interfaces/Ground conductor | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply/Bus | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply/Ground conductor | 500 V AC, 50 Hz, 1 min |
Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 8 mm | Connection method | Screw connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 8 mm |
Degree of protection | IP20 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
