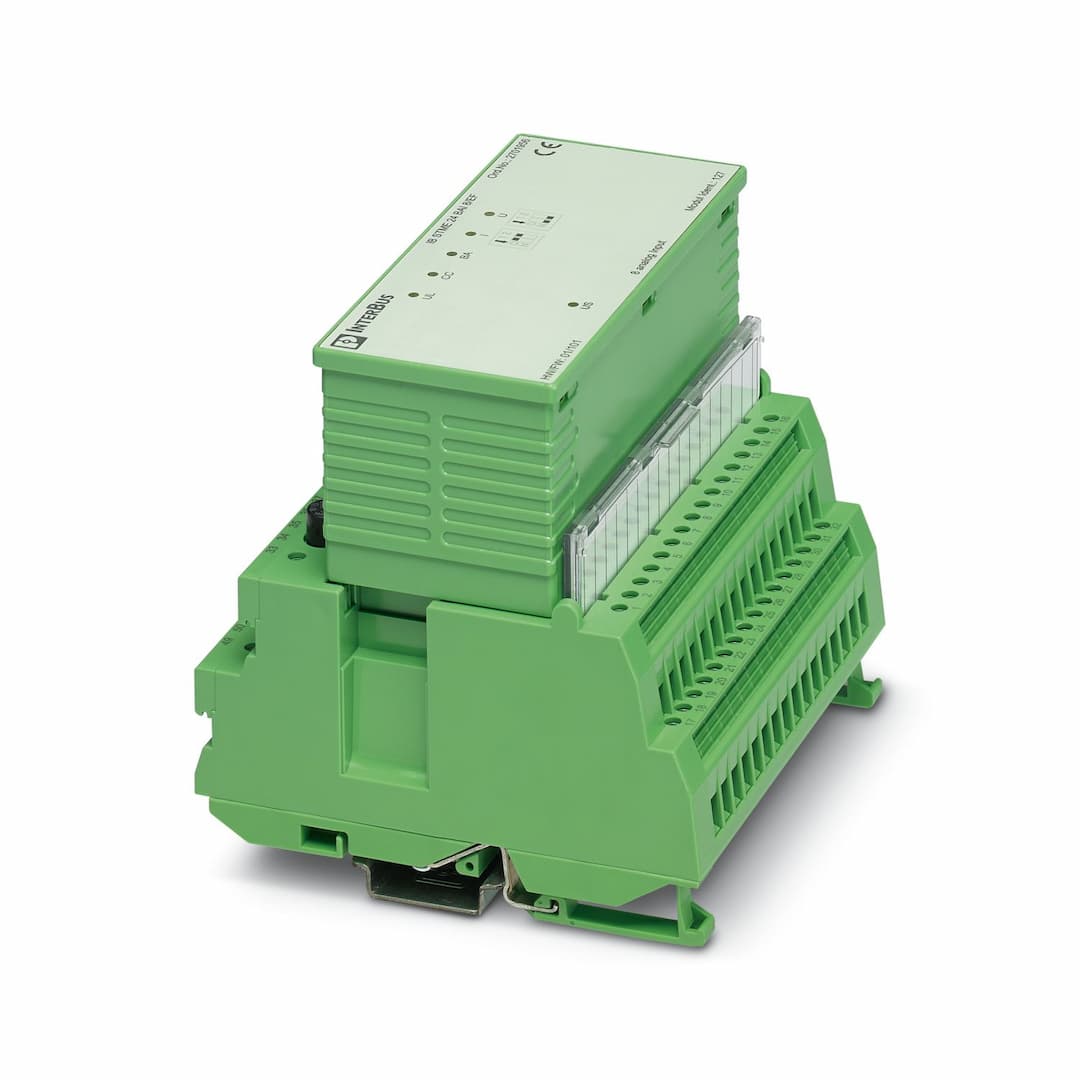

Phoenix Contact IB ST ZF 24 BAI 8/EF

Selling Points

  • 1Supports 0 - 5 V, 0 - 10 V, 0 - 25 V, 0 - 50 V, and 0 - 60 mA.
  • 2IP20 degree of protection ensures reliable operation in various environments.
  • 3Easy and secure connection of sensors using spring-cage technology.
  • 4Convenient mounting on DIN rail for easy integration into control systems.
  • 5Meets EMC class A standards for electromagnetic compatibility.
Product Details
IB ST ZF 24 BAI 8/EF
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Width
118 mm
Height
116 mm
Depth
117 mm
No. of channels
2
Connection method
ST local bus connector
Transmission speed
500 kbps
Transmission physics
Copper
ID code (dec.)
127
ID code (hex)
7F
Length code (hex)
4
Length code (dec)
4
Input address area
8 Byte
Output address area
0 Byte
Register length
8 Byte
Input name
Analog inputs
Number of inputs
max. 8 (Voltage or current)
A/D conversion time
max. 10 µs (per channel)
Connection technology
2, 3-conductor
Measuring principle
Successive approximation
Measured value representation
8 bit straight binary (default) or 12 bit two’s complement (can be parameterized)
Number of inputs
8 (Voltage inputs)
A/D converter resolution
12 bit (4096 steps; 2.44 mV/quantization steps) 8 bit (256 steps; 39 mV/quantization steps)
Voltage input signal
0 V ... 10 V 0 V ... 5 V 0 V ... 25 V 0 V ... 50 V
Input resistance of voltage input
150 kΩ
Number of inputs
8 (Current inputs)
A/D conversion time
max. 10 µs
A/D converter resolution
12 bit (4096 steps; 3.91 µA/quantization steps) 8 bit (256 steps; 62.7 µA/quantization steps)
Current input signal
4 mA ... 20 mA 0 mA ... 20 mA 0 mA ... 40 mA 0 mA ... 60 mA (rms) 0 mA ... 100 mA (peak)
Input resistance current input
77 Ω
Product type
I/O component
Type
modular INTERBUS Smart Terminal
Operating mode
Process data mode with 4 words
Diagnostics messages
Failure of the internal I/O supply I/O error message sent to the bus coupler F1 fuse failure I/O error message sent to the bus coupler I/O supply failure I/O error message sent to the bus coupler
Maximum power dissipation for nominal condition
0.5 W
Connection method
ST local bus connector
Designation
Communications power
Supply voltage
9 V DC (from the ST local bus)
Current consumption
typ. 54 mA max. 80 mA
Power consumption
typ. 0.5 W
Designation
U
Supply voltage
24 V DC
Supply voltage range
19.5 V DC ... 30.2 V DC (including all tolerances, including ripple)
Current consumption
typ. 45 mA (I typ. 120 mA (I
Designation
U
Supply voltage
15 V ±6 %
Current consumption
max. 100 mA (Total for all channels)
Test voltage: Bus/Inputs
500 V AC, 50 Hz, 1 min
Test voltage: Supply voltage/inputs
500 V AC, 50 Hz, 1 min
Test voltage: Supply voltage/Ground conductor
500 V AC, 50 Hz, 1 min
Test voltage: I/O voltage/Ground conductor
500 V AC, 50 Hz, 1 min
Connection name
Terminal block
Connection method
Spring-cage connection
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Stripping length
8 mm
Connection method
Spring-cage connection
Conductor cross section, rigid
0.2 mm² ... 2.5 mm²
Conductor cross section, flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Stripping length
8 mm
Ambient temperature (operation)
-25 °C ... 55 °C
Degree of protection
IP20
Air pressure (operation)
80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)
80 kPa ... 106 kPa (up to 2000 m above sea level)
Ambient temperature (storage/transport)
-25 °C ... 70 °C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Protection class
III (IEC 61140, EN 61140, VDE 0140-1)
Mounting type
DIN rail mounting
