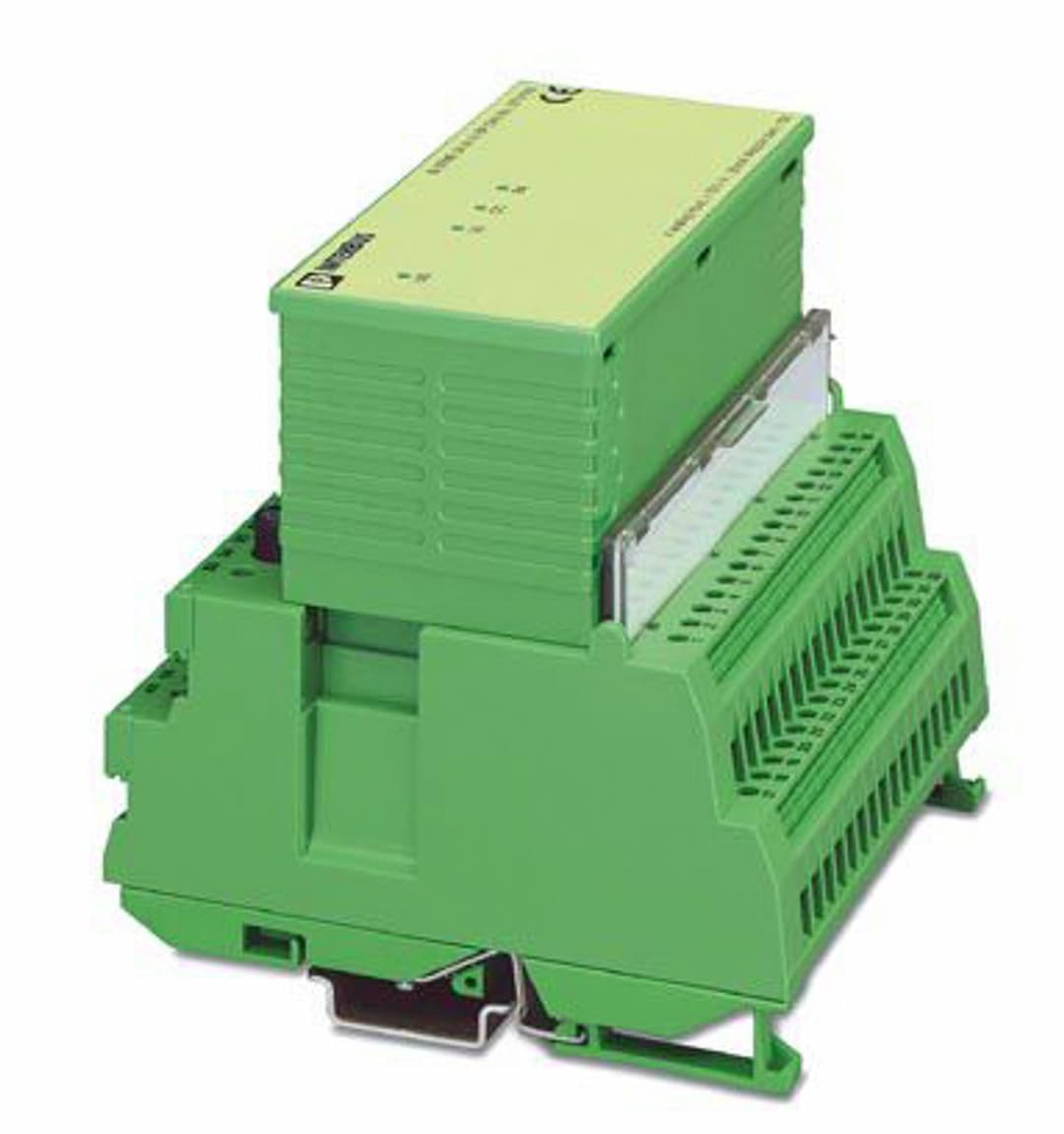

Product Model
IB ST ZF 24 BAI 8/U
Selling Points
- 18 Analog Inputs: Connects up to 8 analog signals for voltage or current inputs.
- 2IP20 Protection: Ensures reliable operation in industrial environments with IP20 protection.
- 3Spring-Cage Connections: Easy and secure connection of sensors using spring-cage technology.
- 4Wide Signal Range: Supports signals from 0 to 10 V, 0 to 5 V, 0 to 25 V, and 0 to 50 V.
- 5Compact Design: Dimensions are 118 mm x 117 mm x 116 mm, ideal for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 118 mm | Height | 117 mm |
Length | 116 mm | Connection method | ST local bus connector |
Transmission speed | 500 kbps | Transmission physics | Copper |
Product type | I/O component | Product family | Smart Terminal ST |
Type | modular | No. of channels | 8 |
Test section | Bus/Inputs 500 V AC 50 Hz 1 min
Supply voltage/inputs 500 V AC 50 Hz 1 min
Supply voltage/Ground conductor 500 V AC 50 Hz 1 min
I/O voltage/Ground conductor 500 V AC 50 Hz 1 min | Communications power U | 9 V DC (from the ST local bus) |
I/O voltage | ± 24 V DC 5 % (ripple) | I/O voltage range | 18.5 V DC ... 30.2 V DC |
Max. current consumption | 160 mA (without passive sensors) | Typical current consumption | 68 mA (without passive sensors) |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² | Conductor cross section AWG | 24 ... 16 |
Degree of protection | IP20 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
