Product Model

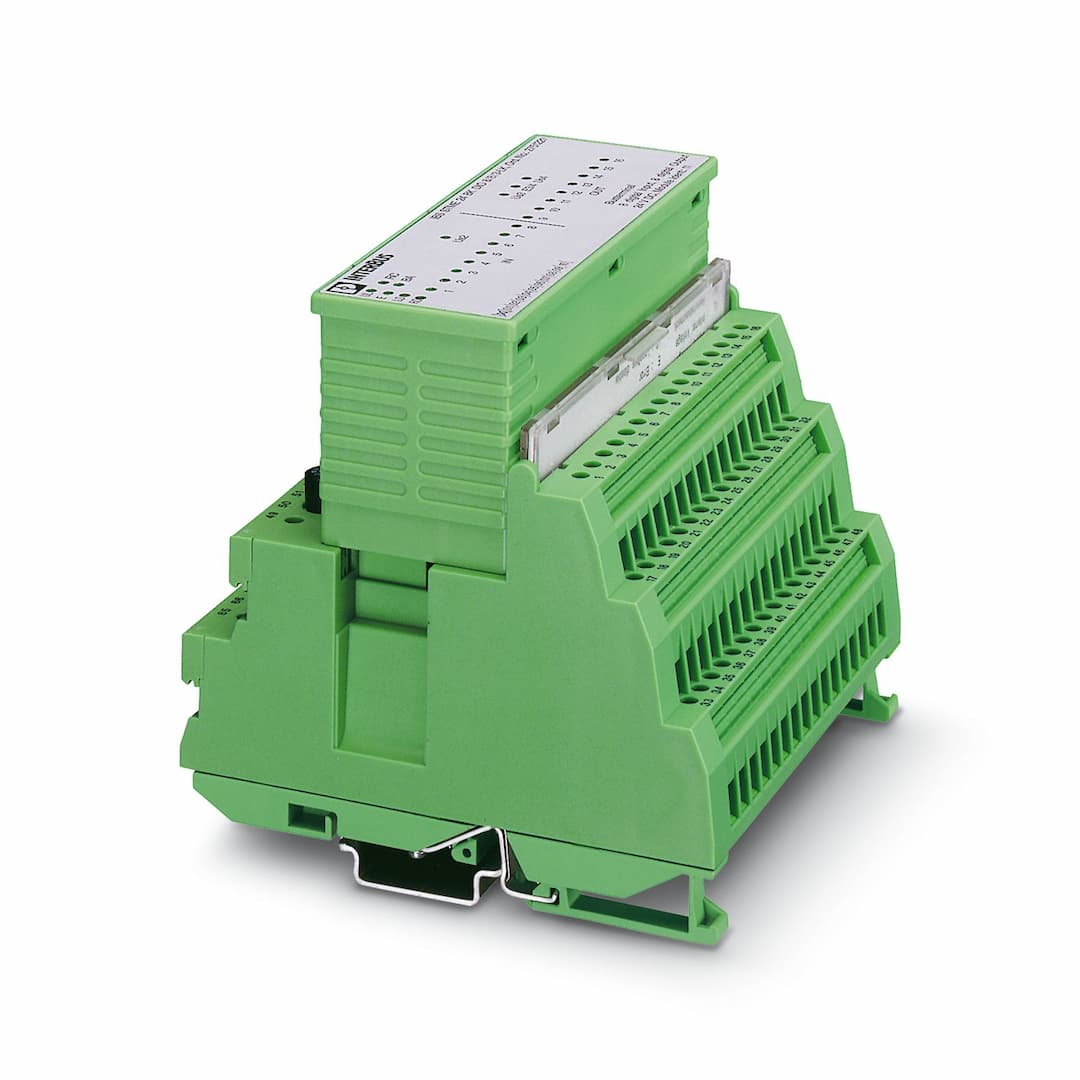

IB ST ZF 24 DI16/4
Selling Points
- 1Process multiple control signals with 16 high-precision digital inputs.
- 2Ensure reliable data transmission with the 4-wire connection method.
- 3Operate efficiently at 24 V DC, suitable for various industrial environments.
- 4Enjoy robust protection against dust and water with an IP20 rating.
- 5Easily integrate into your system with DIN rail mounting for convenient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular | Mounting position | Horizontal DIN rail |
No. of channels | 16 | Supply voltage | 24 V DC |
Supply voltage range | 20 V DC ... 30 V DC (including ripple) | Current consumption | typ. 100 mA |
Ripple | 3.6 V | Test voltage: Bus logic / I/O | 500 V AC, 50 Hz, 1 min |
Test voltage: Ground conductor / I/O | 500 V AC, 50 Hz, 1 min | Test voltage: Supply voltage logic / I/O | 500 V AC, 50 Hz, 1 min |
Input name | Digital inputs | Number of inputs | 16 |
Connection method | Spring-cage connection | Connection technology | 4-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input current at U | typ. 7 mA (per channel) |
Typical response time | 3 ms (typical) | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG | 24 ... 16 | Connection method | ST local bus connector |
Width | 118 mm | Height | 117 mm |
Depth | 116 mm | Ambient temperature (operation) | 0 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) | Permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Mounting position | Horizontal DIN rail |
Specifications may be subject to change without notice
