Product Model

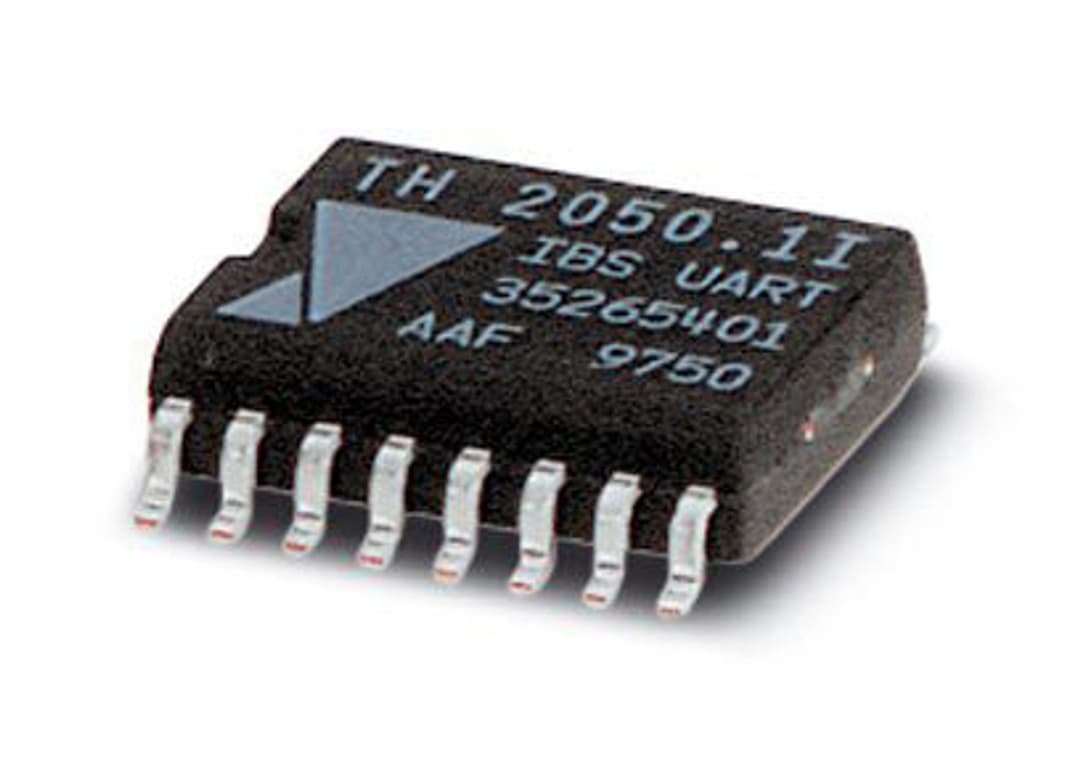

IBS UART
Selling Points
- 1High-Performance Fieldbus Communication: The IBS UART supports up to 4096 bytes of process data and connects via INTERBUS with remote or local bus methods.
- 2Compact Design: The chip is housed in a SOP 16 package, measuring 11 mm in width and 10 mm in height.
- 3Low Power Consumption: It operates at 5 V DC ±10% with a typical current consumption of 10 mA.
- 4Wide Operating Temperature Range: The chip functions between -40°C and 85°C, ensuring reliability in various environments.
- 5Comprehensive Interface Options: Supports V.24 interface with 1 start bit, 2 stop bits, and 8 data bits, along with even parity for robust data transmission.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Protocol chip |
IC power supply voltage | 5 V DC ±10 % (DC) | Typical current consumption | 10 mA (all inputs static, outputs unused) |
Connection method | Remote bus/local bus | Connection method | V.24, 1 start bit, 2 stop bits, 8 data bits, even parity |
Width | 11 mm | Height | 10 mm |
Degree of protection | IP00 | Ambient temperature (operation) | -40 °C ... 85 °C |
Specifications may be subject to change without notice
