Product Model

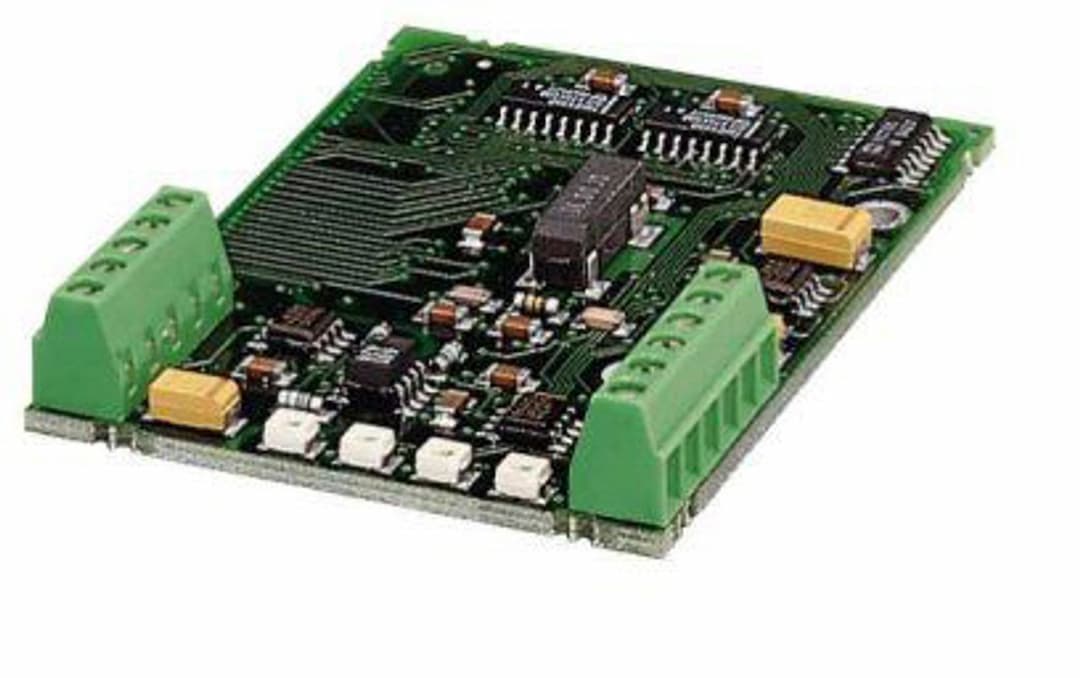

IBS UNI DIO
Selling Points
- 1Universal I/O Module: Designed for various industrial applications with a 60-pos. female connector for power supply, diagnostics, configuration, and parallel port.
- 2INTERBUS Protocol: Supports INTERBUS protocol for seamless integration into industrial systems.
- 3IP 67 Protection: Ensures reliable operation in harsh environments with IP 67 protection.
- 4Compact Design: Measures 70 mm x 10 mm x 50 mm for easy integration into control systems.
- 5High Reliability: Built with zinc die-cast housing and copper-nickel plated surface for durability and electrical isolation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Plug-in board |
Type | Daughterboard | Internal data length | 10 bytes IN and 10 bytes OUT data |
Protocol chip | INTERBUS SUPI 3 | IC power supply voltage | 5 V DC ±10 % (DC) |
Typical current consumption | 120 mA (90 mA kernel) | User interface | 60-pos. female connector for power supply, -Diagnostics, -Configuration, -Parallel port for 32 data bits (configurable), -Parallel port for micro-processor |
Connection method | Remote bus | Width | 70 mm |
Height | 10 mm | Length | 50 mm |
Degree of protection | IP00 | Ambient temperature (operation) | 0 °C ... 70 °C |
Specifications may be subject to change without notice
