Product Model

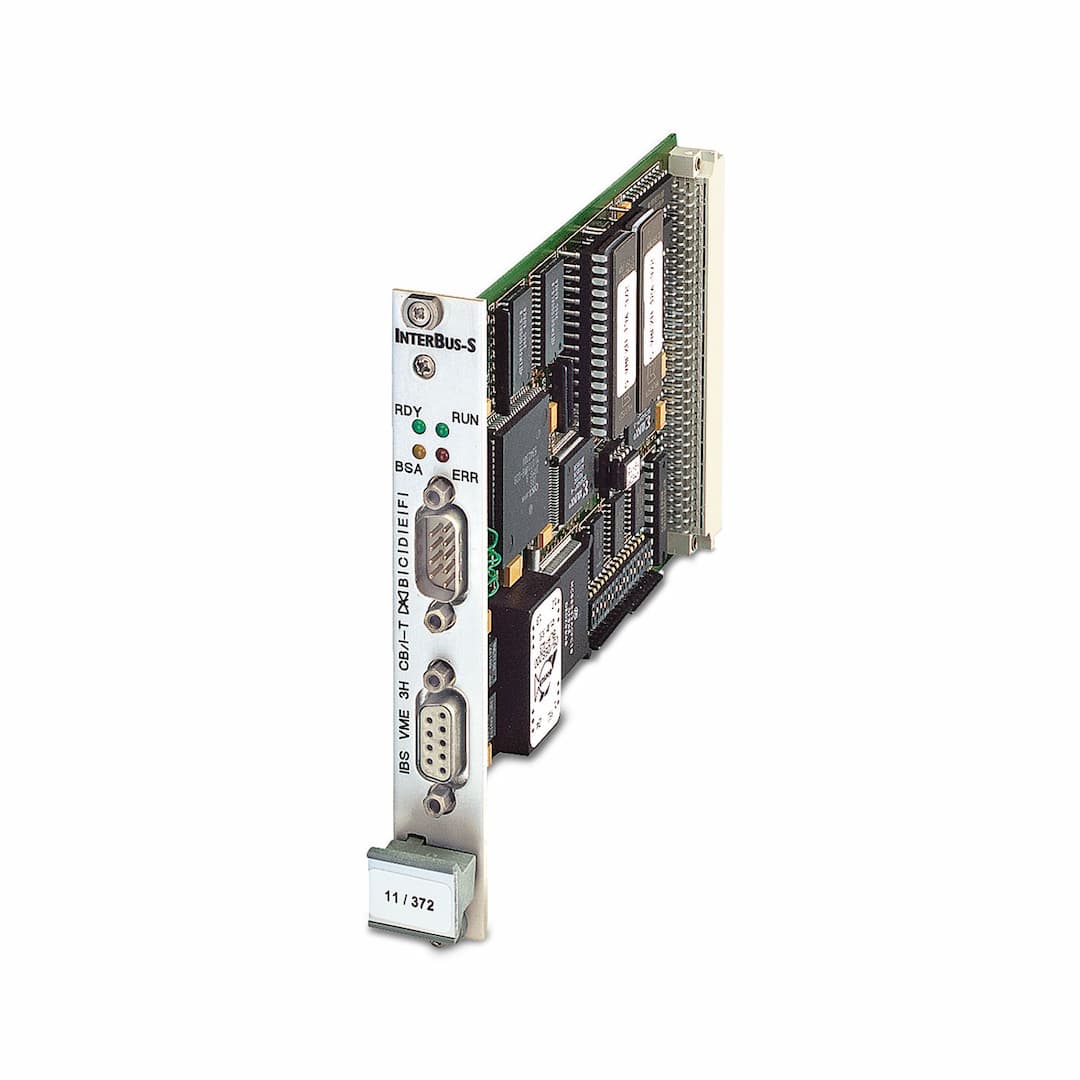

IBS VME3H CB/I-T
Selling Points
- 1Interoperable with VMEbus Systems: Compatible with VMEbus systems, enabling seamless integration into complex multiprocessor structures.
- 2INTERBUS Controller Boards: Equipped with INTERBUS controller boards, facilitating communication between different control systems.
- 3Compact Design: Compact size of 5.0" x 1.0" x 8.0" (12.7 cm x 2.5 cm x 20.3 cm), suitable for various industrial applications.
- 4High-Quality Components: Utilizes high-quality components, ensuring reliable performance and durability.
- 5Adaptable to Various Control Systems: Can be used in GE or Allen-Bradley controllers, offering flexibility in industrial automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PLC controller board | Format | 3 rack units, 1 slot |
Data storage system | 8 kByte (base address programmable) | Optical representation | 3 LEDs |
Local diagnostics | 3 LEDs | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 10 W | Supply voltage | 5 V DC |
Supply voltage range | 4.9 V DC ... 5.3 V DC (including ripple) | Power supply connection | Via VMEbus connector P1, up to 8 modules can be plugged in |
Residual ripple | 2 mV | Typical current consumption | 2 A |
Connection method | VMEbus systems, VMEbus connector P1 (IEC 603-2) | Interrupts | Level 1-7, vector 0 - 255 |
Connection method | 9-pos. D-SUB pin strip | Mounting type | In the host system |
Specifications may be subject to change without notice
