Product Model

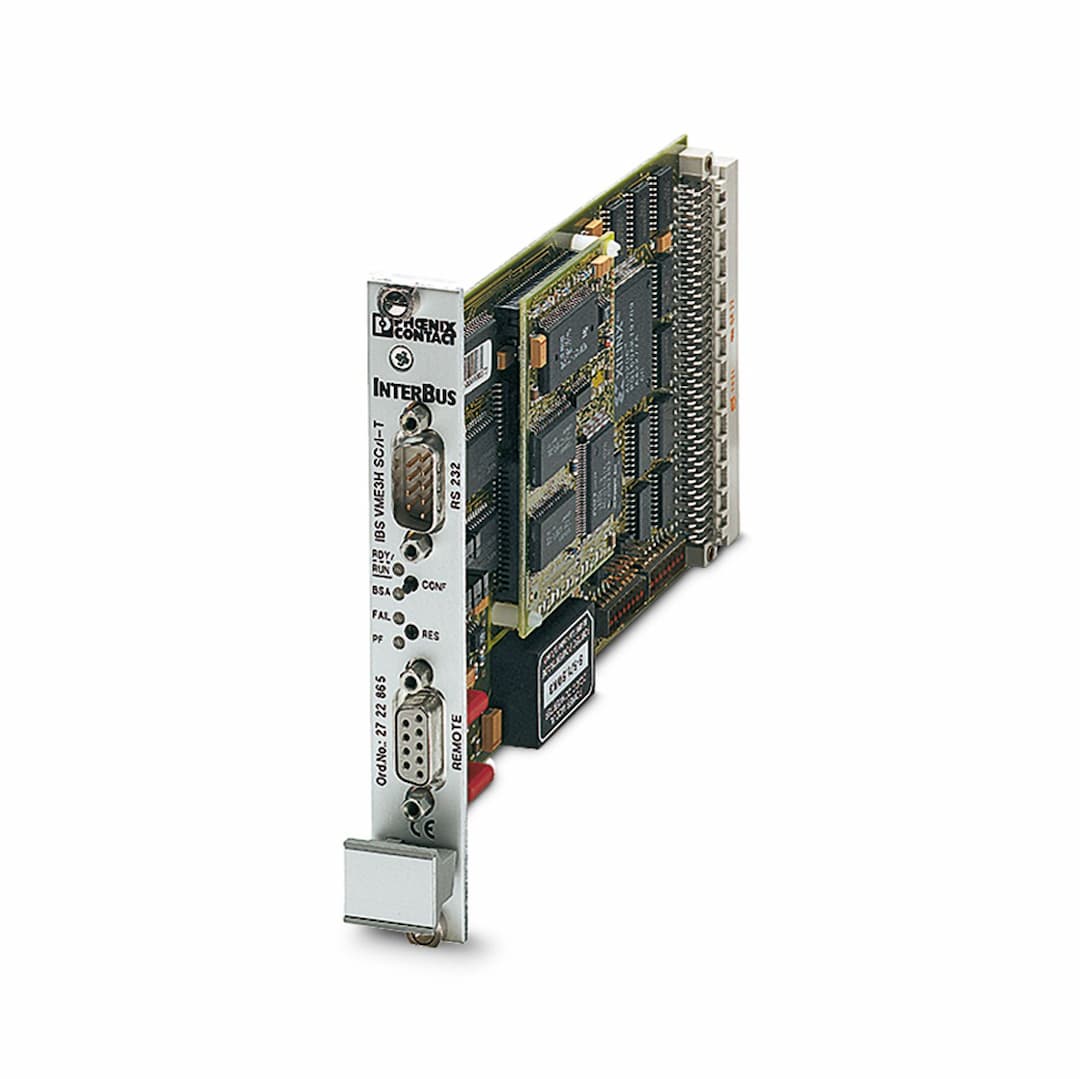

IBS VME3H SC/I-T
Selling Points
- 1Electrical Isolation: Ensures safe operation in harsh industrial environments.
- 2High Reliability: Designed for continuous operation with minimal downtime.
- 3Controller Board: Compatible with 3 HE-VME bus systems for seamless integration.
- 4Low Power Consumption: Maximum power dissipation of 2.75 W for efficient operation.
- 5DC Supply Voltage: Operates on 5 V DC, with a range of 4.9 V DC to 5.3 V DC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PLC controller board | Format | 3 rack units, 1 slot |
Data storage system | base address programmable | Number of devices with parameter channel | max. 62 |
Monitored function | Operating status | Optical representation | 2 LEDs |
Local diagnostics | Operating status 2 LEDs
Error status 2 LEDs | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 2.75 W | Supply voltage | 5 V DC |
Supply voltage range | 4.9 V DC ... 5.3 V DC | Residual ripple | 0.1 V |
Typical current consumption | 550 mA | Connection method | Via VMEbus connector P1 |
Interrupts | Level 1-7, vector 0 - 255 | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
Connection method | RS-232-C, D-SUB 9-pos. male connector | Connection method | VMEbus systems, VMEbus connector P1 (IEC 603-2) |
Degree of protection | IP00 | Mounting type | In the host system |
Specifications may be subject to change without notice
