Product Model

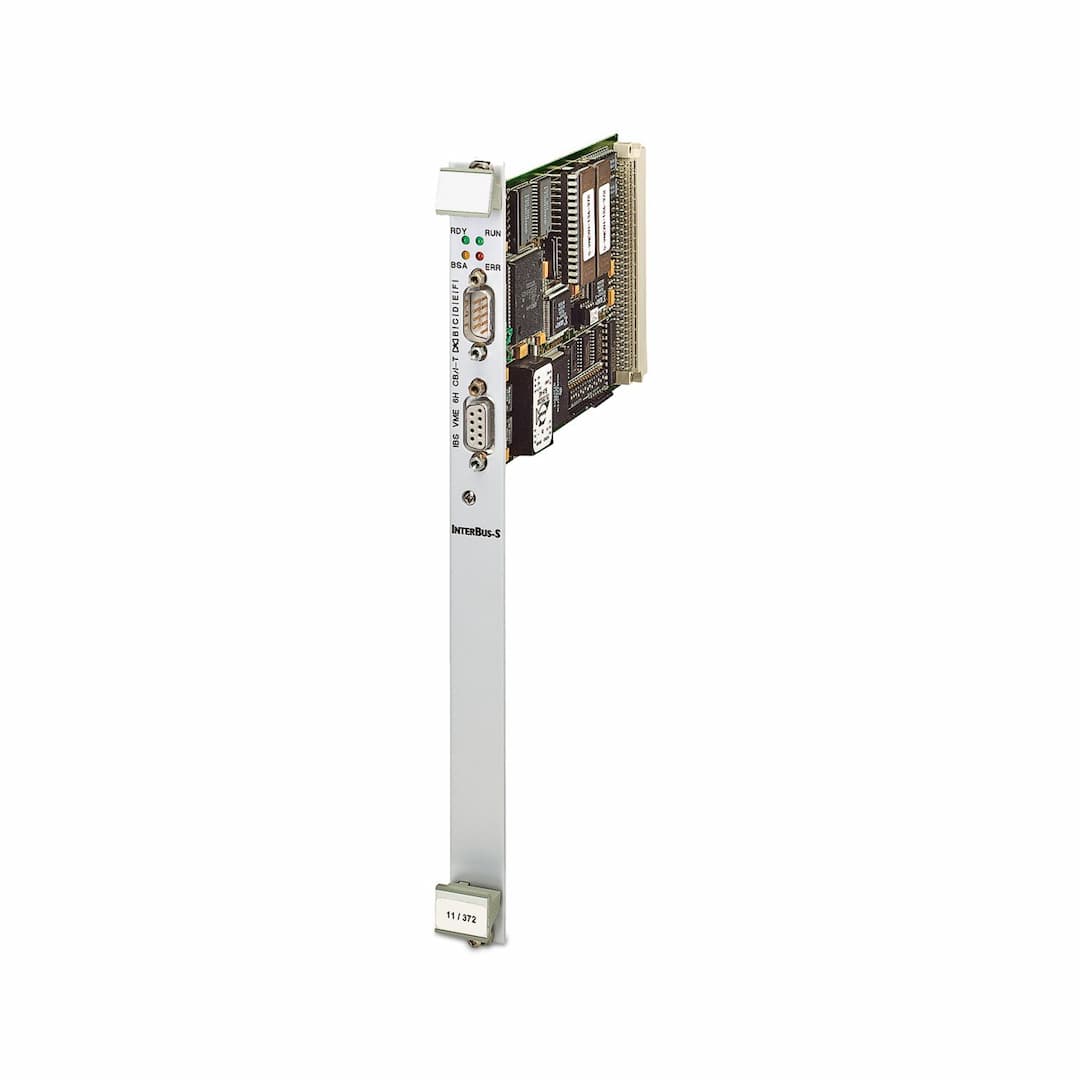

IBS VME6H CB/I-T
Selling Points
- 1Electrical Isolation: Ensures safe operation in harsh environments.
- 2Quick Delivery: Available promptly from authorized distributors.
- 312-Month Warranty: Comprehensive protection for your investment.
- 4Single European Format: Compatible with European standards and systems.
- 5High-Quality Construction: Durable and reliable performance in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | PLC controller board | Format | 6 rack units, 1 slot |
Data storage system | 8 kByte (base address programmable) | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 10 W | Supply voltage | 5 V DC |
Supply voltage range | 4.9 V DC ... 5.3 V DC (including ripple) | Power supply connection | Via VMEbus connector P1, up to 8 modules can be plugged in |
Residual ripple | 2 mV | Typical current consumption | 2 A |
Connection method | VMEbus systems, VMEbus connector P1 (IEC 603-2) | Interrupts | Level 1-7, vector 0 - 255 |
Connection method | 9-pos. D-SUB pin strip | Mounting type | In the host system |
Specifications may be subject to change without notice
