Product Model
IBS VME6H SC/I-T
Selling Points
- 1Electrical Isolation: Ensures safe and reliable operation in harsh environments.
- 2High-Performance Interface: Supports 6 HE-VME bus systems with robust connectivity options.
- 3Versatile Connectivity: Features a 9-pos. D-SUB female connector and optional optical fiber interface.
- 4Advanced Diagnostics: Includes local diagnostics with 3 LEDs for real-time monitoring.
- 5Compliance and Safety: Meets CUL standards and is environmentally friendly with China RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

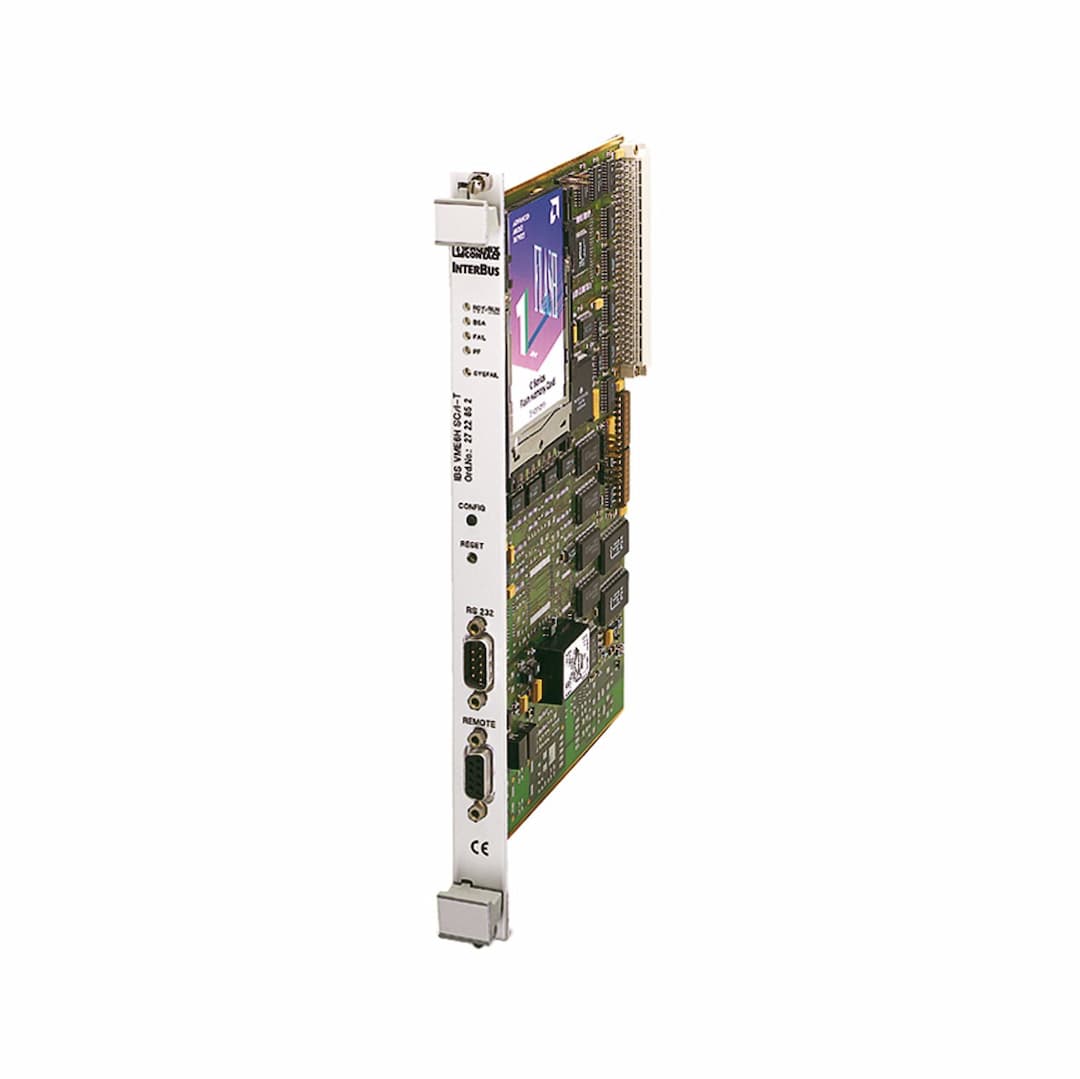

Product type | PLC controller board | Format | 6 rack units, 1 slot |
Data storage system | MPM, base address adjustable | Number of devices with parameter channel | max. 62 |
Monitored function | Operating status | Optical representation | 3 LEDs |
Local diagnostics | Operating status 3 LEDs
Error status 2 LEDs | Transmission medium | Copper |
Maximum power dissipation for nominal condition | max. 3 W | Supply voltage | 5 V DC |
Supply voltage range | 4.9 V DC ... 5.3 V DC | Residual ripple | 0.1 V |
Typical current consumption | 590 mA | Connection method | Via VMEbus connector P1 |
Interrupts | Level 1-7, vector 0 - 255 | Connection method | 9-pos. D-SUB female connector (optionally optical fiber possible via interface converters) with electrical isolation |
Connection method | RS-232-C, D-SUB 9-pos. male connector | Connection method | VMEbus systems, VMEbus connector P1 (IEC 603-2) |
Degree of protection | IP00 | Mounting type | In the host system |
Specifications may be subject to change without notice
