Product Model

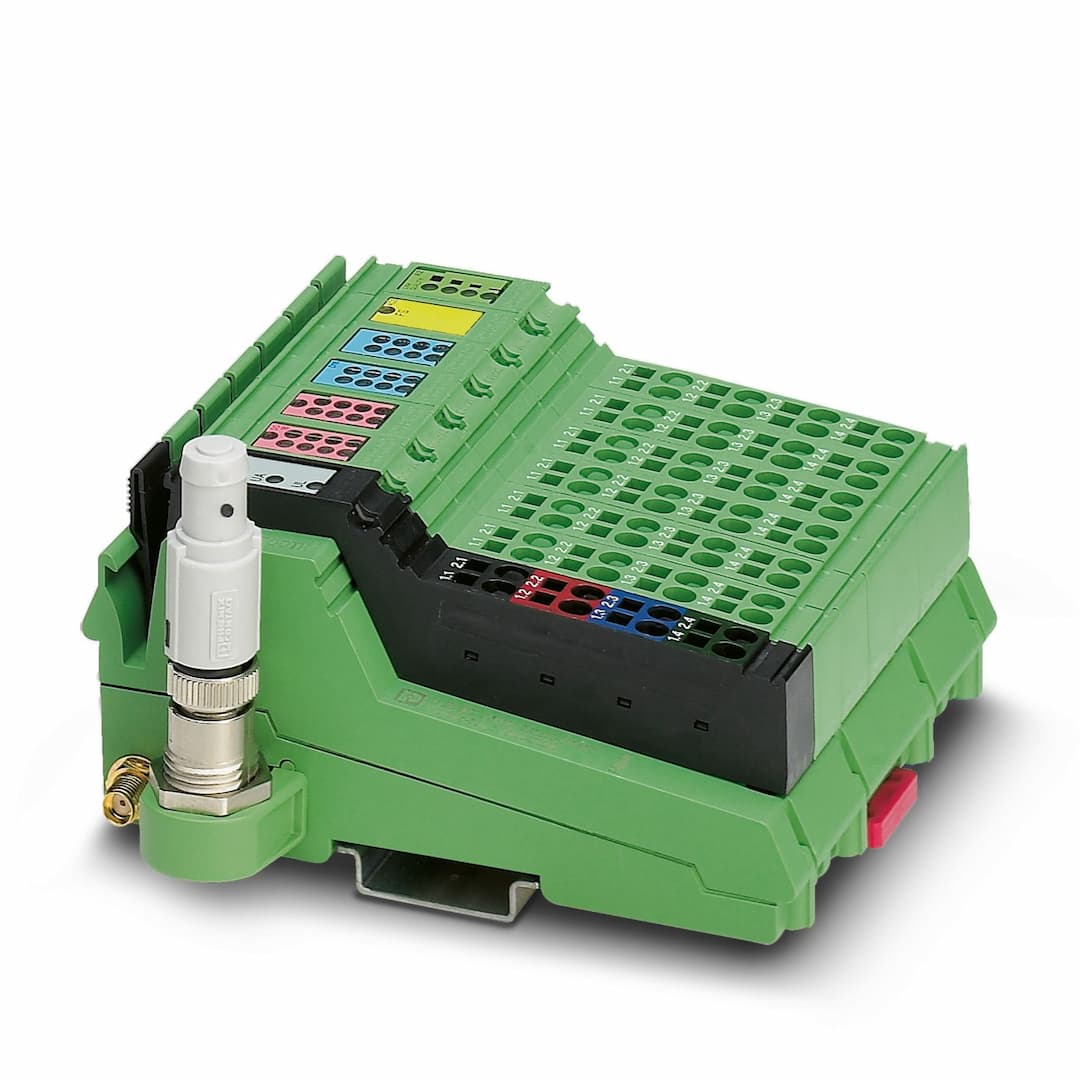

ILB BT ADIO 2/2/16/16
Selling Points
- 1Robust Connectivity: Equipped with Bluetooth V1.2 for reliable wireless communication.
- 2High-Resolution Sensors: Features 12-bit analog input and output resolution for precise measurements.
- 3Industrial-Grade Durability: Designed to operate in harsh conditions with IP20 protection and a wide temperature range.
- 4Secure Data Transmission: Supports 128-bit data encryption and non-discoverable mode for secure data transfer.
- 5Easy Integration: Compatible with various wireless modules and easy to install on DIN rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Wireless module |
Product family | Inline | Type | Block design |
Set comprises | 2736783 FLM BT ID-PLUG M12 | MTBF | 465 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
140 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
Number | 1 | Type | Bluetooth 2.4 GHz up to 1 Mbps |
Assembly note | Permanently installed | Maximum power dissipation for nominal condition | 2.4 W |
Connection method | Inline connector | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) | Supply current | < 100 mA |
Input name | Analog inputs | Description of the input | Single ended |
Number of inputs | 2 | Current input signal | 0 mA ... 20 mA |
Voltage input signal | 0 V ... 10 V | Measured value resolution | 12 bits |
Input name | Digital inputs | Description of the input | IEC 61131-2 type 1 |
Number of inputs | 16 | Connection method | Spring-cage connection |
Connection technology | 1-conductor | Input voltage range "0" signal | < 5 V |
Input voltage range "1" signal | > 15 V | Filter time | 500 µs |
Output name | Analog outputs | Number of outputs | 2 |
DAC resolution | 12 bit | Current output signal | 0 mA ... 20 mA |
Voltage output signal | 0 V ... 10 V | Output name | Digital outputs |
Connection method | Spring-cage connection | Connection technology | 1-conductor |
Number of outputs | 16 | Protective circuit | Short-circuit protection, overload protection, protected against reverse voltages |
Maximum output current per channel | 500 mA | Number | 1 |
Connection method | SMA (male) | Security | 128-bit data encryption
Authentication
PIN
Non-discoverable |
Wireless licenses | Europe, additional countries in the e-shop | Country support | Australia (Special rule: Please contact the Product Manager)
Canada
Russia (Special rule: Please contact the Product Manager)
Switzerland
Singapore
Turkey
USA |
Designation | Bluetooth | Antenna connection method | SMA (female) |
Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) | Wireless standard | Bluetooth 1.2 |
Transmission power | 14 dBm (can be set between 0 dBm and 14 dBm, in 4 dB increments) | Receiver sensitivity | -88.00 dBm |
Number of wireless interfaces | 1 | Wireless modules that can be connected | 1 (FLM BT BS 3, FL BT MOD IO AP) |
Profiles supported | HID | Width | 117 mm |
Height | 119.8 mm | Depth | 73 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Permissible humidity (operation) | 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting
DIN rail mounting |
Assembly note | OMNI antenna is included |
Specifications may be subject to change without notice
