Product Model

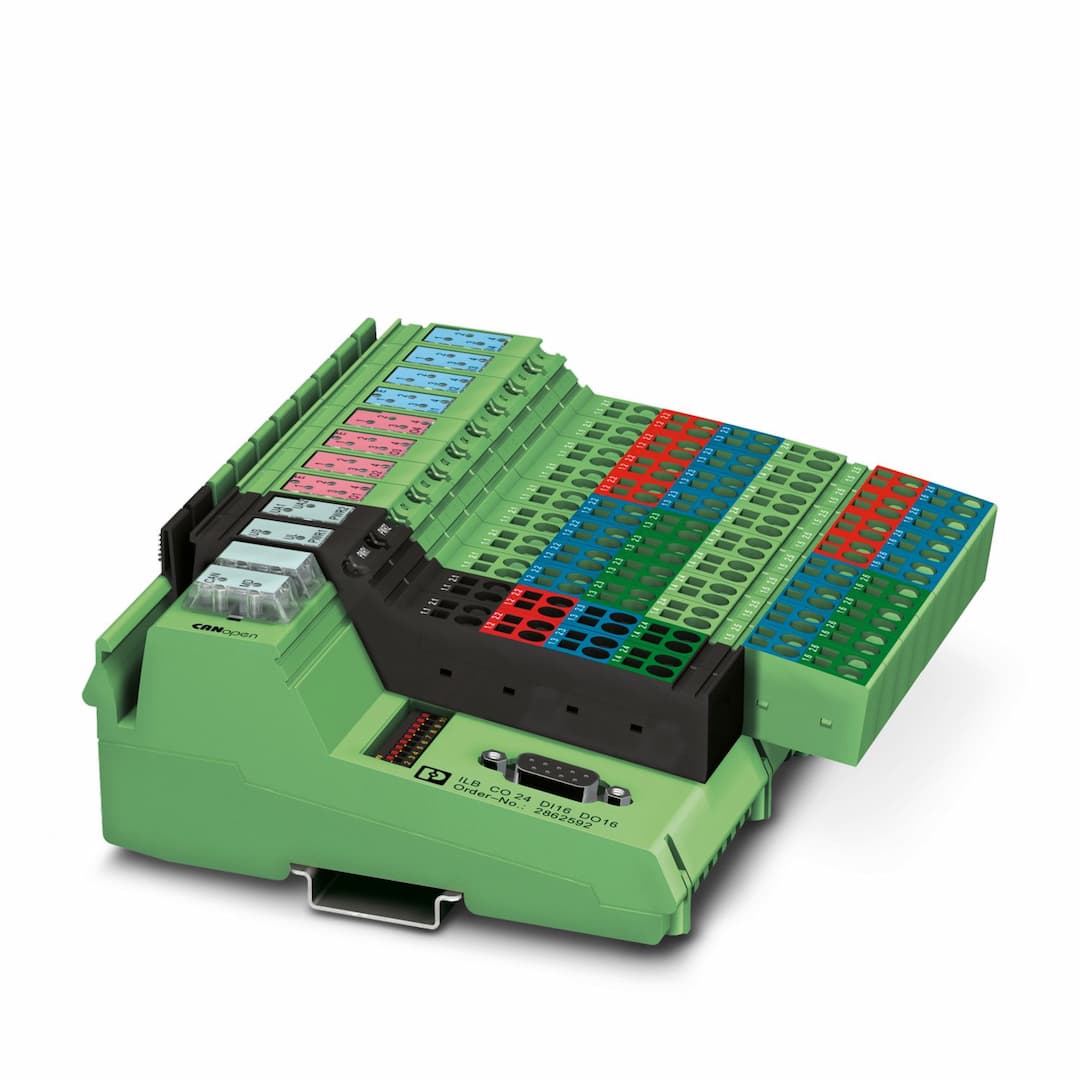

ILB CO 24 DI16 DO16
Selling Points
- 1The ILB CO 24 DI16 DO16 features 16 digital inputs and 16 digital outputs for comprehensive signal acquisition and output.
- 2Designed for use within CANopen networks, ensuring seamless integration with existing automation systems.
- 3Each output supports up to 500 mA, with a total current capacity of 8 A per terminal point.
- 4Equipped with local diagnostic and status indicators for easy monitoring of device status and errors.
- 5Built with a durable housing (156 mm x 55 mm x 141 mm) and meets IP20 protection standards, suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 156 mm | Height | 141 mm |
Depth | 57 mm | Note on dimensions | Specfications with connectors |
Connection method | D-SUB-9 female connector | Number of positions | 9 |
Transmission speed | 10 kbps ... 1 Mbps | Input name | Digital inputs |
Description of the input | EN 61131-2 type 1 | Number of inputs | 16 |
Connection method | Spring-cage connection | Connection technology | 3-conductor |
Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
Input voltage range "1" signal | 15 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
Nominal input current at U | 5 mA | Total sensor current | max. 2 A |
Typical response time | approx. 500 µs | Protective circuit | Short-circuit protection, overload protection of the sensor supply |
Output name | Digital outputs | Connection method | Spring-cage connection |
Connection technology | 3-conductor | Number of outputs | 16 |
Protective circuit | Short-circuit and overload protection | Output voltage | 24 V DC |
Maximum output current per channel | 500 mA | Maximum output current per module / terminal block | 8 A |
Maximum output current per module | 8 A | Nominal output voltage | 24 V DC |
Nominal load, inductive | 12 VA | Nominal load, lamp | 12 W |
Nominal load, ohmic | 12 W | Product type | I/O component |
Product family | Inline | Type | Block design
Inline |
Scope of delivery | including Inline connector | No. of channels | 32 |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 25 mA | Current draw | 2 A |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 4 A | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Current draw | 25 mA | Current draw | 2 A |
Test voltage: I/Os / logic | 500 V AC, 50 Hz, 1 min | Test voltage: I/Os / FE | 500 V AC, 50 Hz, 1 min |
Test voltage: Logic/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 85 % (non-condensing) |
Permissible humidity (storage/transport) | 95 % (non-condensing) | Noise emission | Industrial environment |
Mounting type | NS 35/7,5
DIN rail mounting |
Specifications may be subject to change without notice
