Product Model

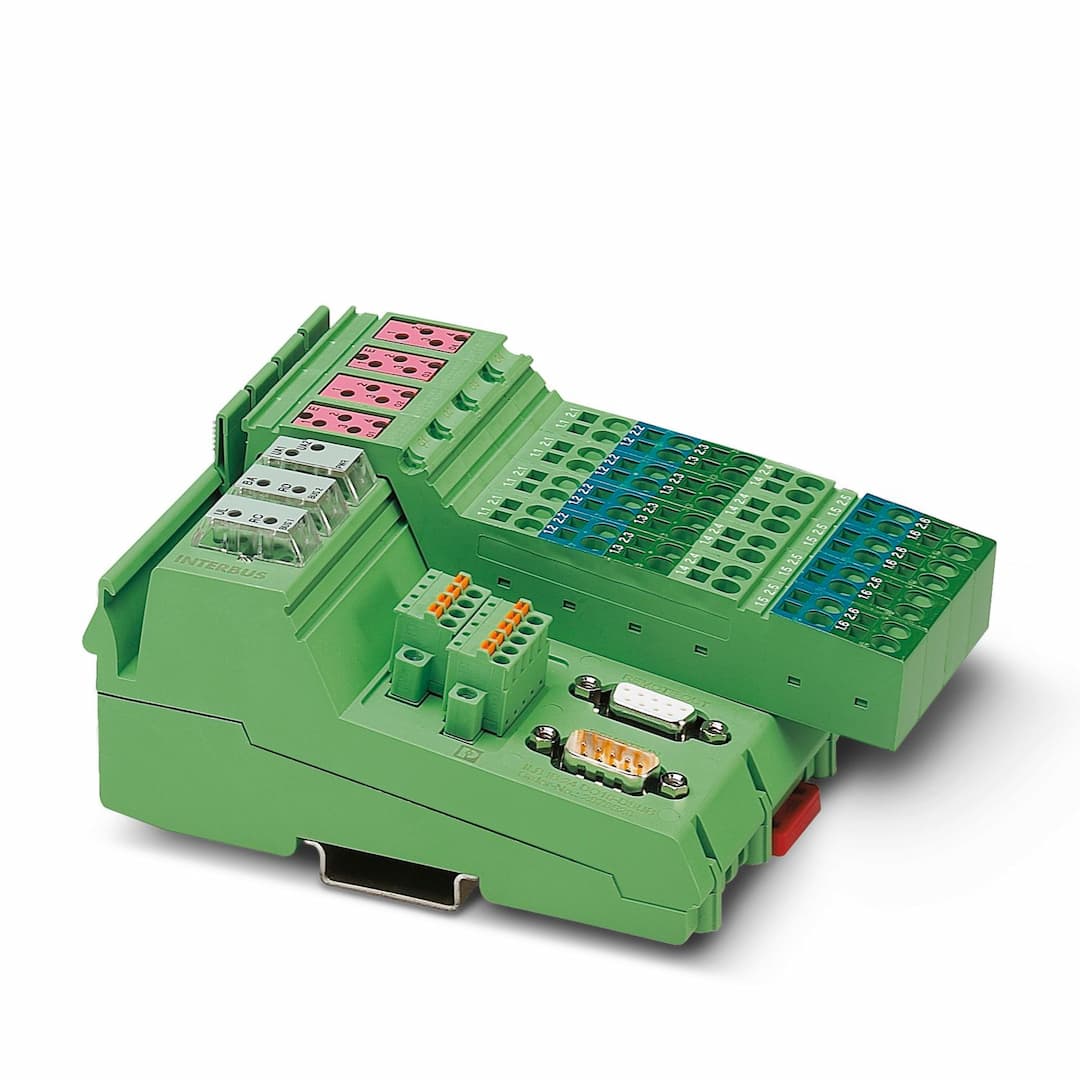

ILB IB 24 DO16-DSUB
Selling Points
- 116 digital outputs for versatile control applications.
- 224V DC supply voltage with 500mA current per channel.
- 3Short-circuit and overload-protected outputs for reliability.
- 4Compact design with DIN rail mounting for easy installation.
- 5Compliant with industrial standards like INTERBUS and IP20 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 95 mm | Height | 141 mm |
Depth | 57 mm | Note on dimensions | Specfications with connectors |
Color | green | Connection method | D-SUB-9 female/D-SUB-9 male |
Transmission speed | 500 kbps | Output name | Digital outputs |
Connection method | Spring-cage connection | Connection technology | 2-, 3-conductor |
Number of outputs | 16 | Protective circuit | Short-circuit and overload protection |
Output voltage | 24 V DC | Maximum output current per channel | 500 mA |
Product type | I/O component | Product family | Inline |
Type | Block design | No. of channels | 16 |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 70 mA | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 4 A | Current draw | 70 mA |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | max. 85 % (non-condensing) | Permissible humidity (storage/transport) | 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Noise emission | Class B (residential) |
Mounting type | NS 35/7,5
DIN rail mounting |
Specifications may be subject to change without notice
