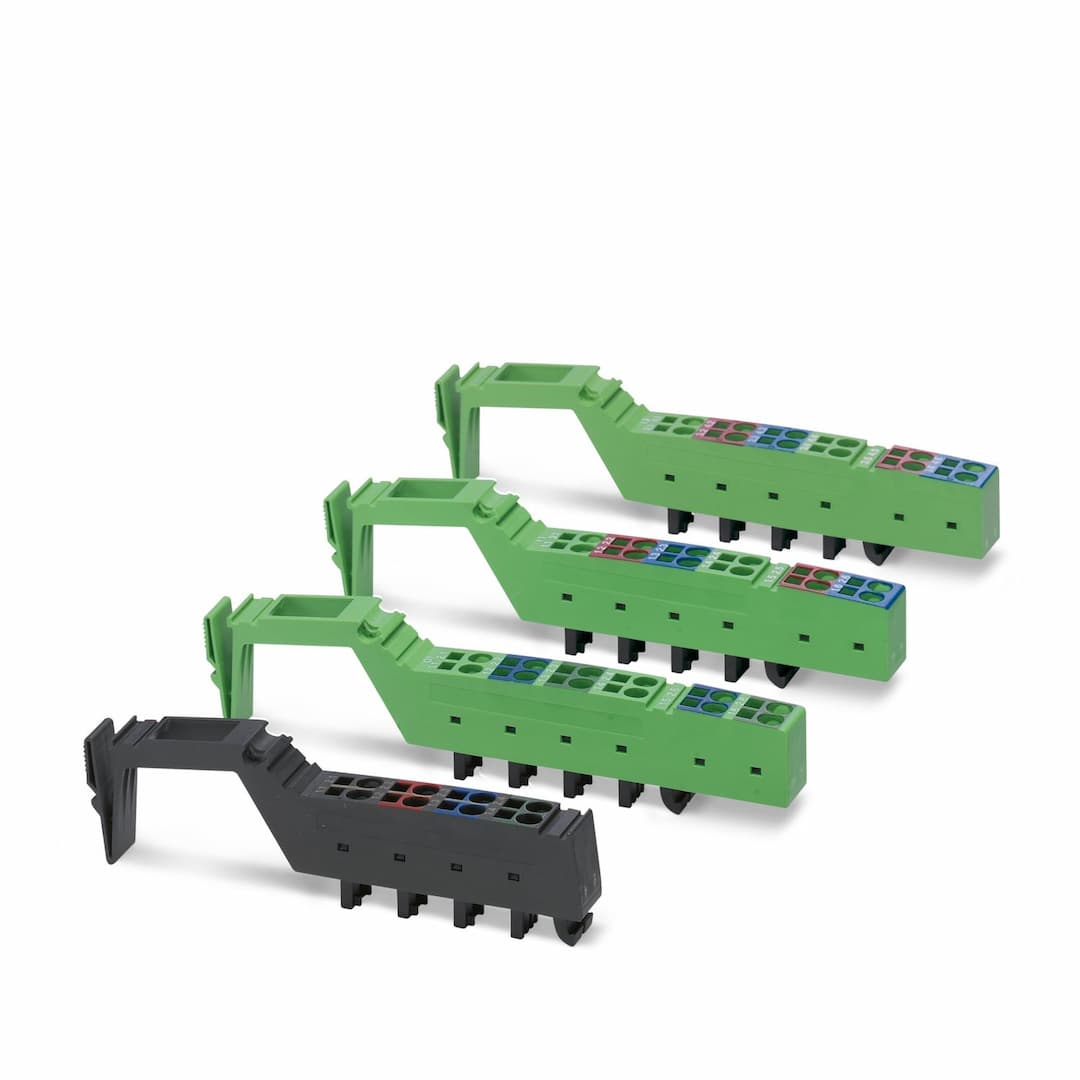

Product Model
IL BK DIO-PLSET/SCN 12
Selling Points
- 1Spring-cage connections ensure secure and reliable connections.
- 2Suitable for inline bus couplers with integrated I/Os.
- 3Rigid and flexible conductors available (0.08 mm² to 1.5 mm²).
- 4Compliant with EU RoHS and China RoHS regulations.
- 5Ideal for applications requiring high connectivity and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Connector set | Application | Inline bus coupler |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm |
Specifications may be subject to change without notice
