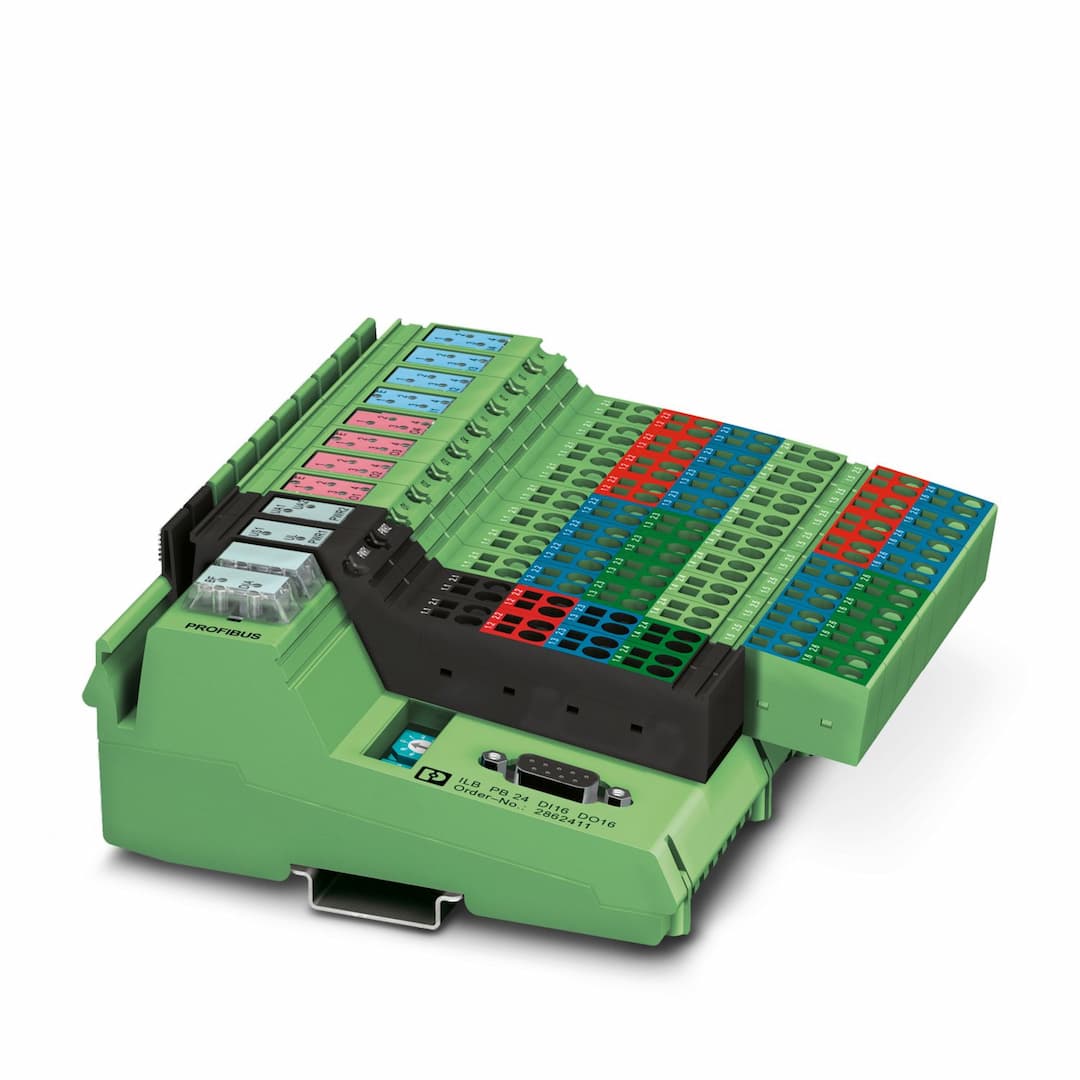

Product Model
ILB PB 24 DI16 DO16/CN
Selling Points
- 1High-Performance Digital Inputs and Outputs: The module offers 16 digital inputs and 16 digital outputs, each with 24 V DC and 500 mA current capacity.
- 2Versatile Connectivity: Supports 2 and 3-wire connection technology for both inputs and outputs.
- 3Durable Design: Designed with a degree of protection IP20, suitable for industrial environments.
- 4Advanced Diagnostics: Includes diagnostic messages for short-circuit, overload, and undervoltage conditions.
- 5Compliance and Certifications: Meets EMC directives and is RoHS compliant, ensuring environmental safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 70 mA | Current draw | 2 A |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 4 A | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Current draw | 70 mA | Current draw | 2 A |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 | Width | 156 mm |
Height | 141 mm | Depth | 57 mm |
Note on dimensions | Specfications with connectors |
Specifications may be subject to change without notice
