Product Model

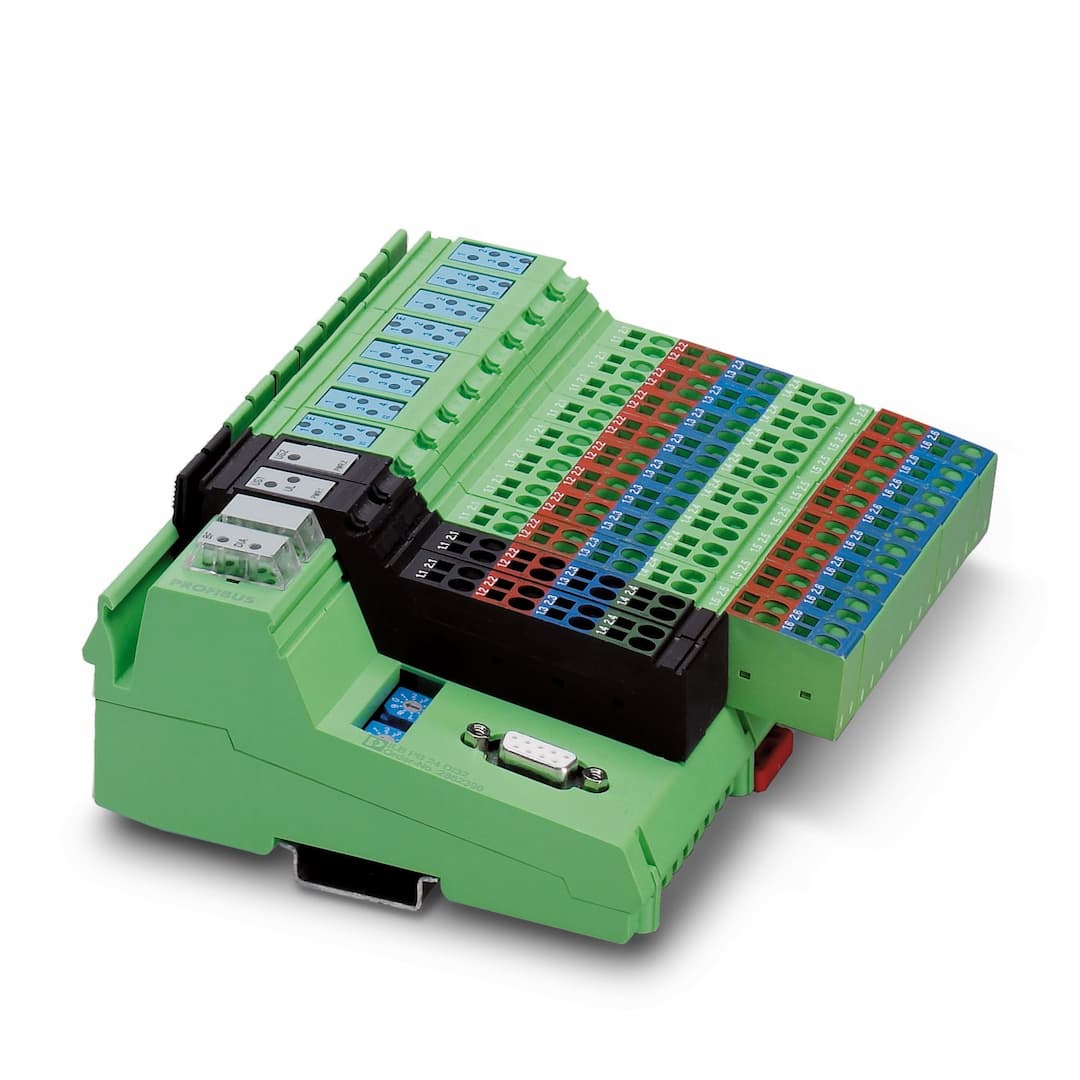

ILB PB 24 DI32
Selling Points
- 1The ILB PB 24 DI32 features 32 digital inputs with a nominal input voltage of 24 V DC.
- 2Designed for PROFIBUS DP networks, ensuring seamless integration with industrial control systems.
- 3Built with a robust block design and IP20 protection, suitable for industrial environments.
- 4Offers a typical response time of approximately 500 µs, ensuring quick data processing.
- 5Equipped with a D-SUB-9 female connector for easy connection to sensors and devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 156 mm | Height | 141 mm |
Depth | 57 mm | Note on dimensions | Specfications with connectors |
CCCex note | Use in potentially explosive areas is not permitted in China. | Connection method | D-SUB-9 female connector |
Number of positions | 9 | Transmission speed | 9.6 kbps ... 12 Mbps |
Input name | Digital inputs | Description of the input | EN 61131-2 type 1 |
Number of inputs | 32 | Connection method | Spring-cage connection |
Connection technology | 3-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Nominal input current at U | 5 mA |
Total sensor current | max. 4 A | Typical response time | approx. 500 µs |
Protective circuit | Short-circuit protection, overload protection of the sensor supply | Product type | I/O component |
Product family | Inline | Type | Block design |
Scope of delivery | including Inline connector | No. of channels | 32 |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 50 mA | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 2 A |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 2 A | Current draw | 50 mA |
Test voltage: I/Os / PROFIBUS | 500 V AC, 50 Hz, 1 min | Test voltage: I/O area / FE | 500 V AC, 50 Hz, 1 min |
Test voltage: PROFIBUS / FE | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 85 % (non-condensing) |
Permissible humidity (storage/transport) | 95 % (non-condensing) | Noise emission | Industrial environment |
Mounting type | NS 35/7,5
DIN rail mounting |
Specifications may be subject to change without notice
