Product Model

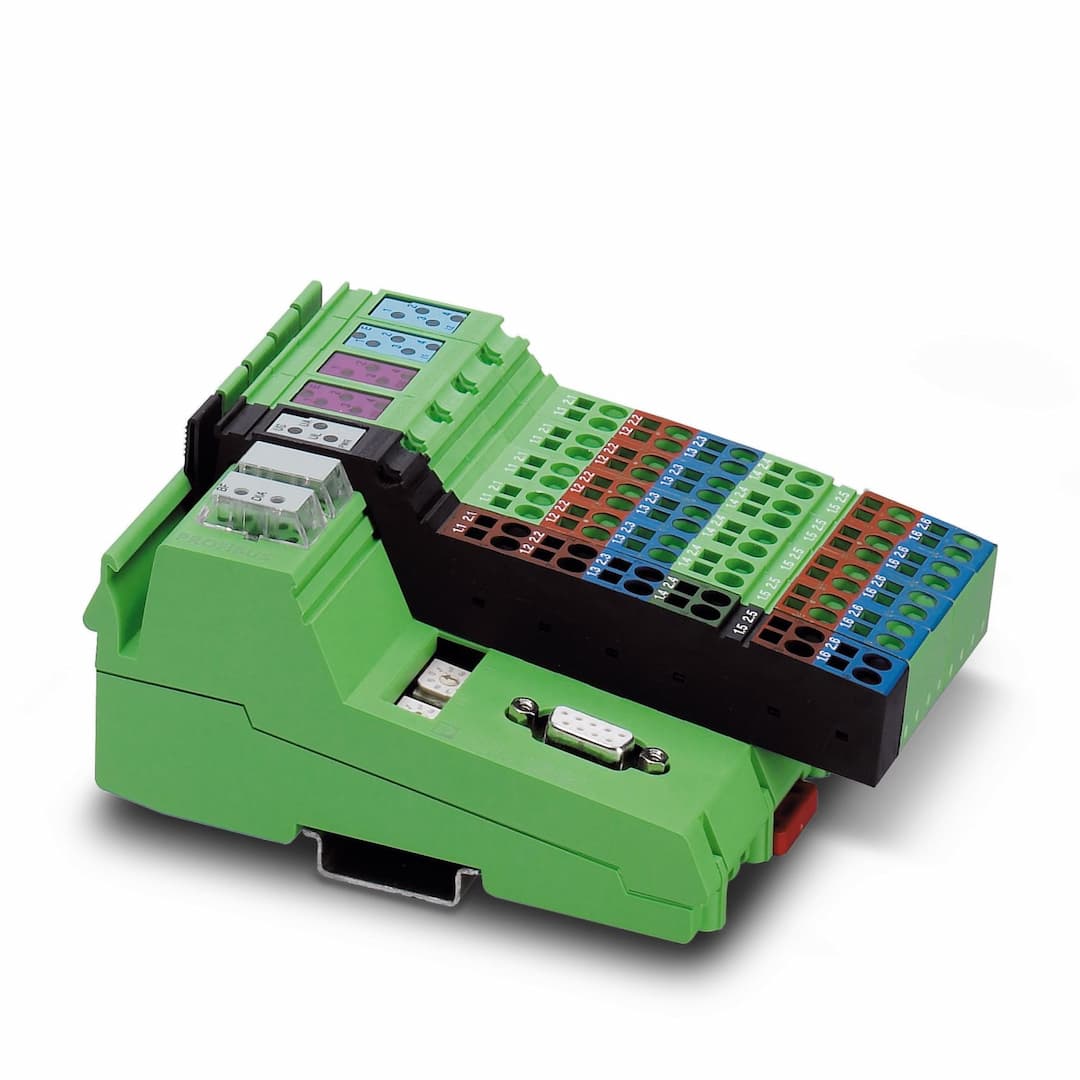

ILB PB 24 DI8 DIO8/CN
Selling Points
- 116 Digital Inputs: Supports 16 digital inputs with 24 V DC, perfect for various industrial applications.
- 28 Digital Outputs: Equipped with 8 digital outputs, each capable of handling 500 mA at 24 V DC.
- 3PROFIBUS DP Compatibility: Designed for PROFIBUS DP, ensuring seamless integration with industrial control systems.
- 4D-SUB-9 Female Connector: Features a D-SUB-9 female connector for easy connection and reliable data transmission.
- 5Durable and Reliable: Built with high-quality components, ensuring durability and reliability in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | Block design | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 60 mA |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 2 A | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Current draw | 60 mA | Current draw | 2 A |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 | Width | 95 mm |
Height | 141 mm | Depth | 57 mm |
Note on dimensions | Specfications with connectors | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
