Product Model

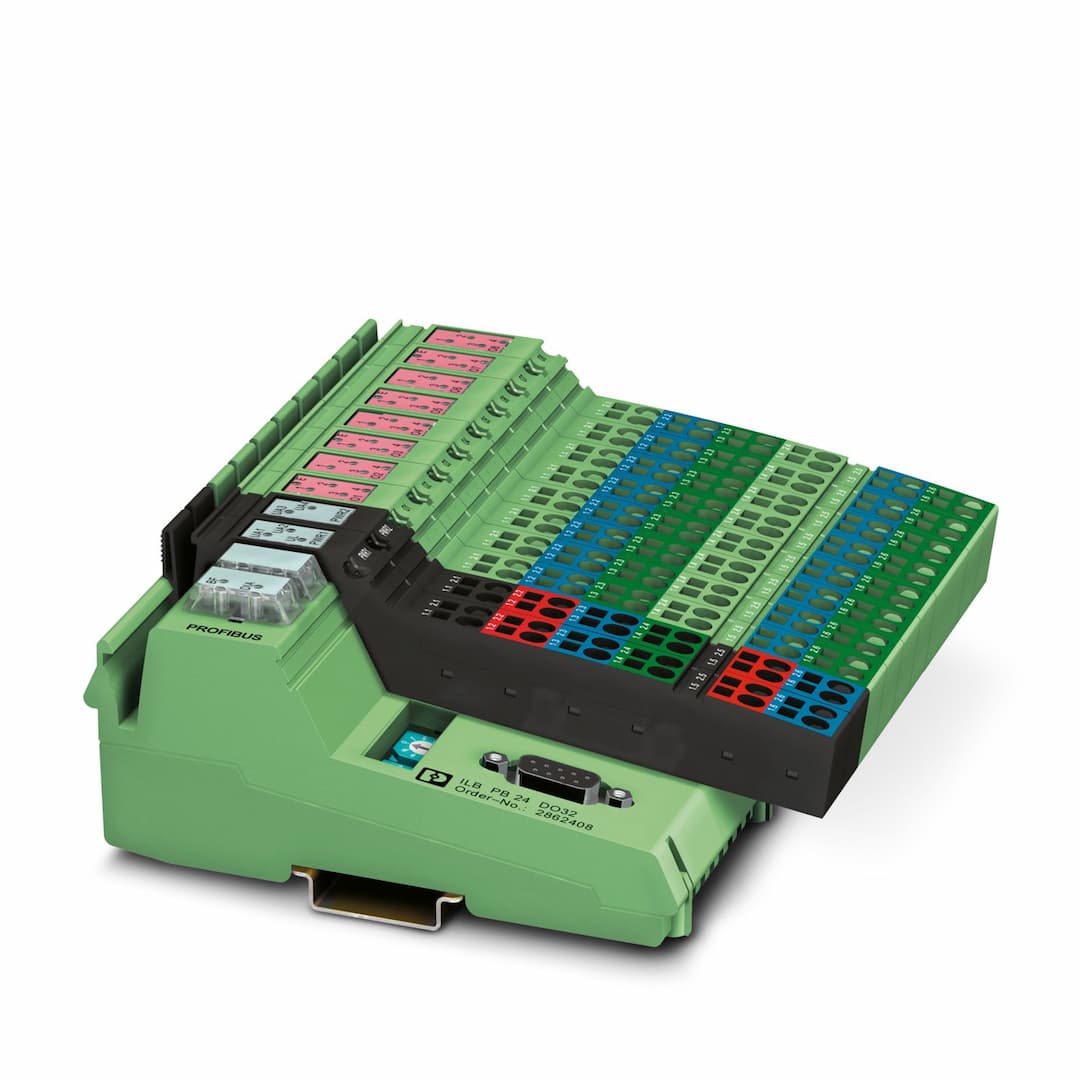

ILB PB 24 DO32
Selling Points
- 1The ILB PB 24 DO32 features 32 digital outputs with a nominal output voltage of 24 V DC and a maximum current of 500 mA.
- 2Designed for PROFIBUS DP networks, ensuring seamless integration with industrial control systems.
- 3Equipped with a D-SUB-9 female connector for secure and reliable connections.
- 4Offers IP20 degree of protection, suitable for various industrial environments.
- 5Available in inline and block IO configurations to meet diverse application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 156 mm | Height | 141 mm |
Depth | 57 mm | Note on dimensions | Specfications with connectors |
Connection method | D-SUB-9 female connector | Number of positions | 9 |
Transmission speed | 9.6 kbps ... 12 Mbps | Output name | Digital outputs |
Connection method | Spring-cage connection | Connection technology | 3-conductor |
Number of outputs | 32 | Protective circuit | Short-circuit and overload protection |
Output voltage | 24 V DC | Maximum output current per channel | 500 mA |
Maximum output current per module / terminal block | 16 A | Maximum output current per module | 16 A |
Nominal output voltage | 24 V DC | Nominal load, inductive | 12 VA |
Nominal load, lamp | 12 W | Nominal load, ohmic | 12 W |
Product type | I/O component | Product family | Inline |
Type | Block design
Inline | Scope of delivery | including Inline connector |
No. of channels | 32 | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 70 mA |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 4 A | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 4 A | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Current draw | 70 mA | Test voltage: I/Os / PROFIBUS | 500 V AC, 50 Hz, 1 min |
Test voltage: I/O area / FE | 500 V AC, 50 Hz, 1 min | Test voltage: PROFIBUS / FE | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 85 % (non-condensing) | Permissible humidity (storage/transport) | 95 % (non-condensing) |
Noise emission | Industrial environment | Mounting type | NS 35/7,5
DIN rail mounting |
Specifications may be subject to change without notice
