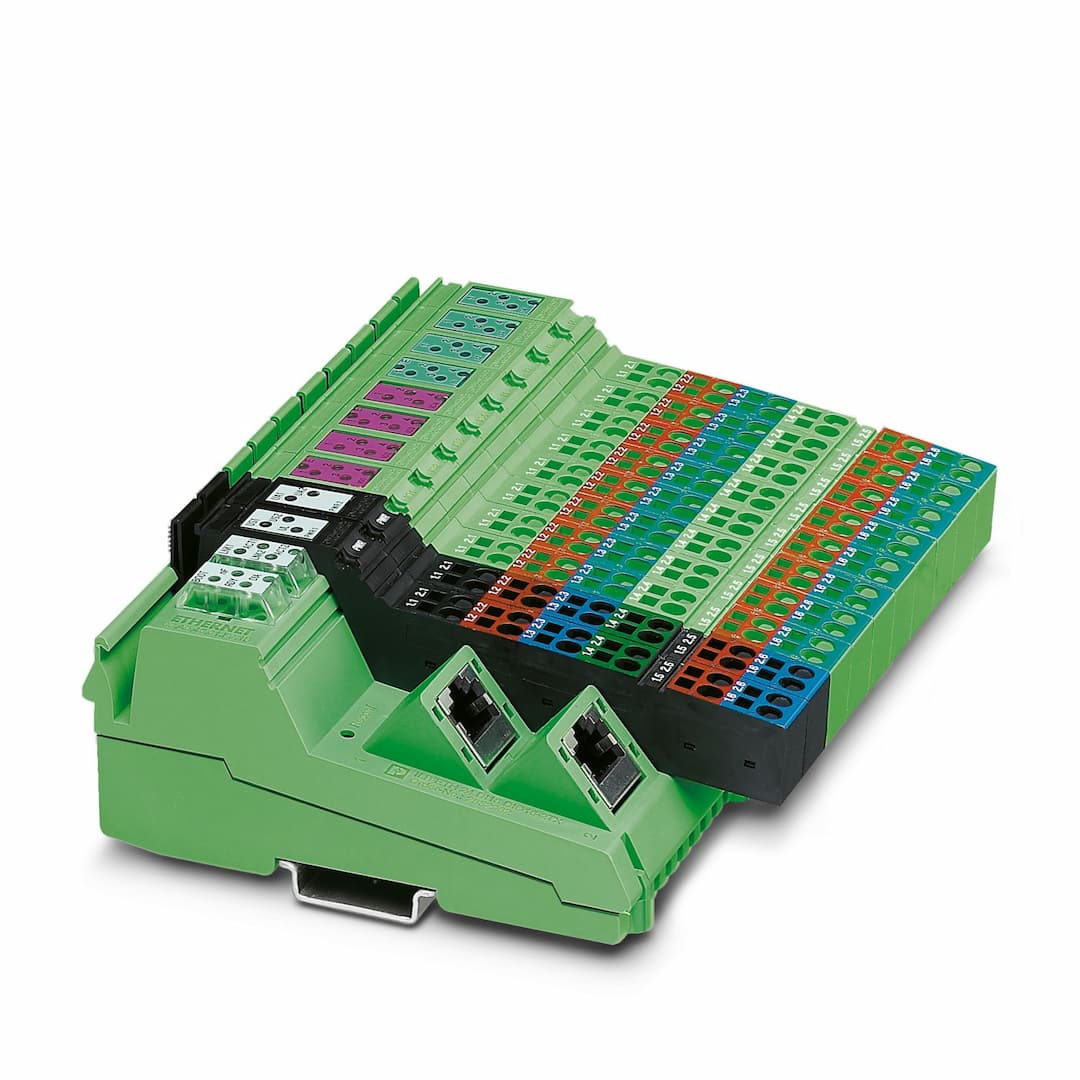

Phoenix Contact ILB PN 24 DI16 DIO16-2TX I/O Module

Selling Points

1High-Performance PROFINET Connectivity: Seamlessly integrate with industrial networks using the PROFINET protocol.
2Robust Digital Inputs/Outputs: 16/32 digital inputs and 16 freely adjustable outputs for versatile control.
324 V DC Power Supply: Reliable operation with a 24 V DC power supply, suitable for industrial environments.
4Compact Design: Angled 45° RJ45 sockets and DIN rail mounting for space-efficient installation.
5Enhanced Safety Features: Short-circuit and overload protection for digital outputs, ensuring safe operation.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	156 mm	Height	141 mm
Depth	57 mm	Note on dimensions	Specfications with connectors
EMC note	EMC: class A product, see manufacturer's declaration in the download area	No. of channels	2
Connection method	RJ45 jack	Transmission speed	10/100 Mbps (with auto negotiation)
Transmission physics	Copper	Device function	PROFINET device
Specification	Version 1.1	Update rate	min. 1 ms
Input name	Digital inputs	Description of the input	IEC 61131-2 type 1
Number of inputs	32 (16 fixed and 16 freely selectable)	Connection method	Spring-cage connection
Connection technology	3-conductor	Input voltage	24 V DC
Input voltage range "0" signal	-30 V DC ... 5 V DC	Input voltage range "1" signal	15 V DC ... 30 V DC
Nominal input voltage U	24 V DC	Typical response time	approx. 500 µs
Protective circuit	Short-circuit protection, overload protection of the sensor supply	Output name	Digital outputs
Connection method	Spring-cage connection	Connection technology	2-conductor
Number of outputs	16	Protective circuit	Short-circuit and overload protection
Maximum output current per channel	500 mA	Nominal output voltage	24 V DC
Nominal load, inductive	12 VA (1.2 H, 50 Ω)	Nominal load, lamp	12 W
Nominal load, ohmic	12 W (48 Ω)	Product type	I/O component
Product family	Inline	Type	Block design Inline
Scope of delivery	including Inline connector	No. of channels	32
Diagnostics messages	Short-circuit or overload of the digital outputs Message in the diagnostics register Short-circuit, sensor supply Message in the diagnostics register Undervoltage Power supply for sensors Message in the diagnostics register	Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)	Current draw	70 mA
Supply voltage	24 V DC	Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw	4 A	Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)	Current draw	4 A
Supply voltage	24 V DC	Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current draw	4 A	Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (including all tolerances, including ripple)	Current draw	4 A
Current draw	70 mA	Connection name	Inline connector
Connection method	Spring-cage connection	Conductor cross section rigid	0.08 mm² ... 1.5 mm²
Conductor cross section flexible	0.08 mm² ... 1.5 mm²	Conductor cross section AWG	28 ... 16
Stripping length	8 mm	Connection method	Spring-cage connection
Conductor cross section, rigid	0.08 mm² ... 1.5 mm²	Conductor cross section, flexible	0.08 mm² ... 1.5 mm²
Conductor cross section AWG	28 ... 16	Stripping length	8 mm
Ambient temperature (operation)	-25 °C ... 60 °C	Degree of protection	IP20
Air pressure (operation)	80 kPa ... 108 kPa (up to 2000 m above sea level)	Air pressure (storage/transport)	66 kPa ... 108 kPa (up to 3500 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C	Permissible humidity (operation)	max. 85 % (non-condensing)
Noise emission	Industrial environment	Mounting type	NS 35/7,5 DIN rail mounting

Specifications may be subject to change without notice
