Product Model

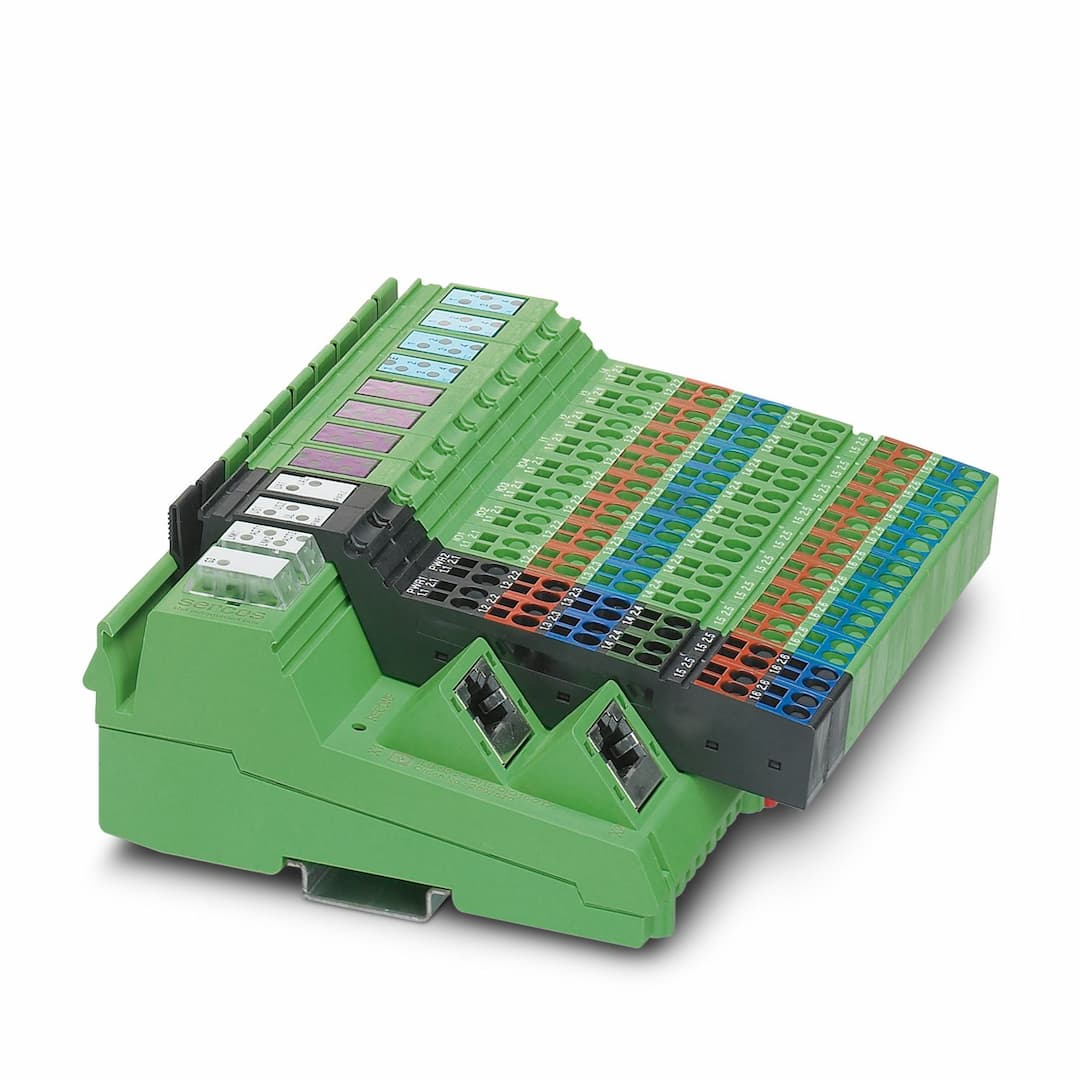

ILB S3 24 DI16 DIO16-2TX
Selling Points
- 1High-Speed Digital I/O: Supports 32 digital inputs and 16 digital outputs with a response time of approximately 500 µs.
- 2Robust Design: IP20 protection, short-circuit and overload protection, and a compact form factor for reliable operation.
- 3Easy Integration: Spring-cage connections and RJ45 socket for straightforward installation and connectivity.
- 4Advanced Features: Includes diagnostics messages for short-circuit, sensor supply, and undervoltage conditions.
- 5Industrial Compatibility: Operates with 24 V DC input voltage and 500 mA output current, suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 156 mm | Height | 141 mm |
Depth | 57 mm | Note on dimensions | Specfications with connectors |
EMC note | EMC: class A product, see manufacturer's declaration in the download area | No. of channels | 2 |
Connection method | RJ45 jack | Transmission speed | 100 Mbps |
Transmission physics | Copper | Input name | Digital inputs |
Description of the input | 16 fixed and 16 freely selectable | Number of inputs | 32 |
Connection method | Spring-cage connection | Connection technology | 3-conductor |
Nominal input voltage U | 24 V DC | Typical response time | 50 µs |
Protective circuit | Short-circuit protection, overload protection of the sensor supply | Output name | Digital outputs |
Connection method | Spring-cage connection | Connection technology | 2-conductor |
Number of outputs | 16 | Protective circuit | Short-circuit and overload protection |
Output voltage | 24 V DC | Maximum output current per channel | 500 mA |
Nominal output voltage | 24 V DC | Product type | I/O component |
Product family | Inline | Type | Block design
Inline |
Scope of delivery | including Inline connector | No. of channels | 32 |
Diagnostics messages | Short-circuit or overload of the digital outputs Message in the diagnostics register
Short-circuit, sensor supply Message in the diagnostics register
Undervoltage Power supply for sensors Message in the diagnostics register | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 90 mA |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 4 A | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | 4 A | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | 4 A |
Current draw | 90 mA | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | max. 85 % (non-condensing) |
Noise emission | Industrial environment | Mounting type | NS 35/7,5
DIN rail mounting |
