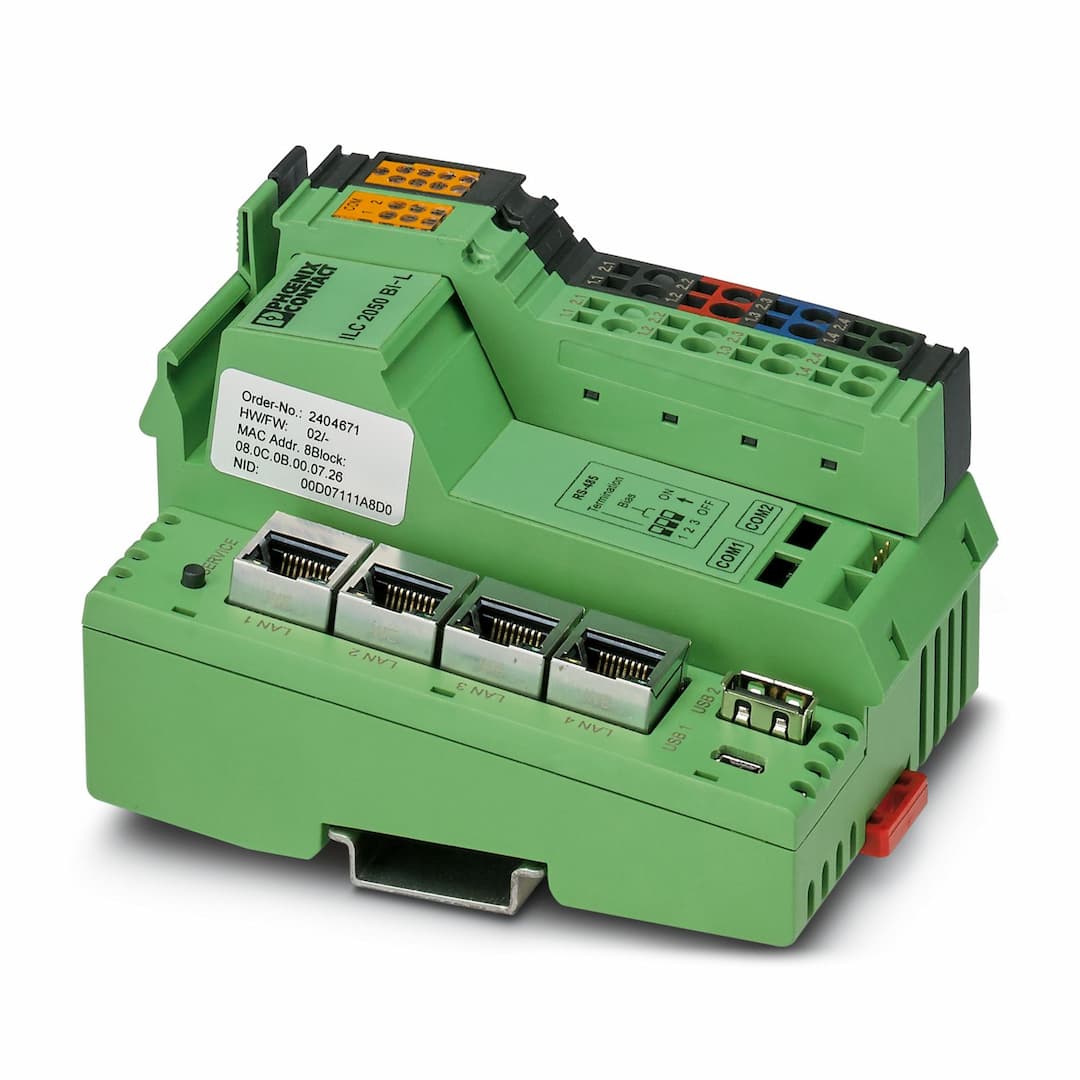

Phoenix Contact ILC 2050 BI-L

Selling Points

  • 1Extends with up to 63 Inline I/O modules for digital and analog inputs/outputs.
  • 2Supports all main communication protocols in building infrastructure automation.
  • 3Designed for business-critical applications with high reliability and robust control.
  • 4Empowers IoT solutions with easy extension of the Niagara 4 framework.
  • 5Equipped with four LAN, two USB, and two RS-485 interfaces for maximum availability.
Product Details
ILC 2050 BI-L
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Note on application
Only for industrial use
Product type
Controller
Product family
Inline-Controller
Type
modular
Article revision
02
Processor
Arm®Cortex®-A8 1 GHz
Retentive data storage
2 GByte (eMMC)
RAM
1024 Mbyte DDR3 SDRAM
Program memory
1 GByte (SRAM)
Data storage system
1.8 GByte (eMMC)
Programming languages supported
Niagara Framework®
Engineering tool
Emalytics
Supply voltage
24 V DC
Supply voltage range
19.2 V DC ... 30 V DC
Max. current consumption
≤ 1.5 A
Typical current consumption
≤ 170 mA (at nominal voltage without local bus device)
Realtime clock
Yes
Description realtime clock
integrated (rechargeable battery buffered)
Supply voltage
24 V DC -15 % / +20 % (in accordance with EN 61131-2)
Supply voltage range
19.2 V DC ... 30 V DC
Connection method
Spring-cage connection
Conductor cross section, rigid
0.08 mm² ... 1.5 mm²
Conductor cross section, flexible
0.08 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Supported protocols
BACnet/IP BACnet MS/TP (only at COM1 and COM2) Modbus/TCP Modbus/RTU KNX IP DALI DALI-2 LON IP EnOcean SMI MP-Bus SNMP M-Bus MQTT OPC UA Simple OpenADR LDAP SMS CSV oBIX Milestone Video Framework Interface LonMark TP/FT
Bus system
RJ45
Number of interfaces
4
Connection method
RJ45 jack
Transmission speed
10/100 Mbps
No. of channels
2
Bus system
RS-485
Number of interfaces
2
Bus system
USB type A
Number of interfaces
1
Bus system
Mini-USB
Number of interfaces
1
Bus system
microSD
Number of interfaces
1 (Top)
Connection method
microSD slot
Width
80 mm
Height
119.8 mm
Depth
71.5 mm
Color
green (RAL 6021)
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 55 °C (observe derating)
Ambient temperature (storage/transport)
-25 °C ... 85 °C
Permissible humidity (operation)
0 % ... 75 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)
0 % ... 75 % (according to DIN EN 61131-2)
Air pressure (operation)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)
70 hPa ... 106 kPa (up to 3000 m above sea level)
GRP_Temperature class
T4
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37
Sulfur dioxide (SO
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
