Product Model

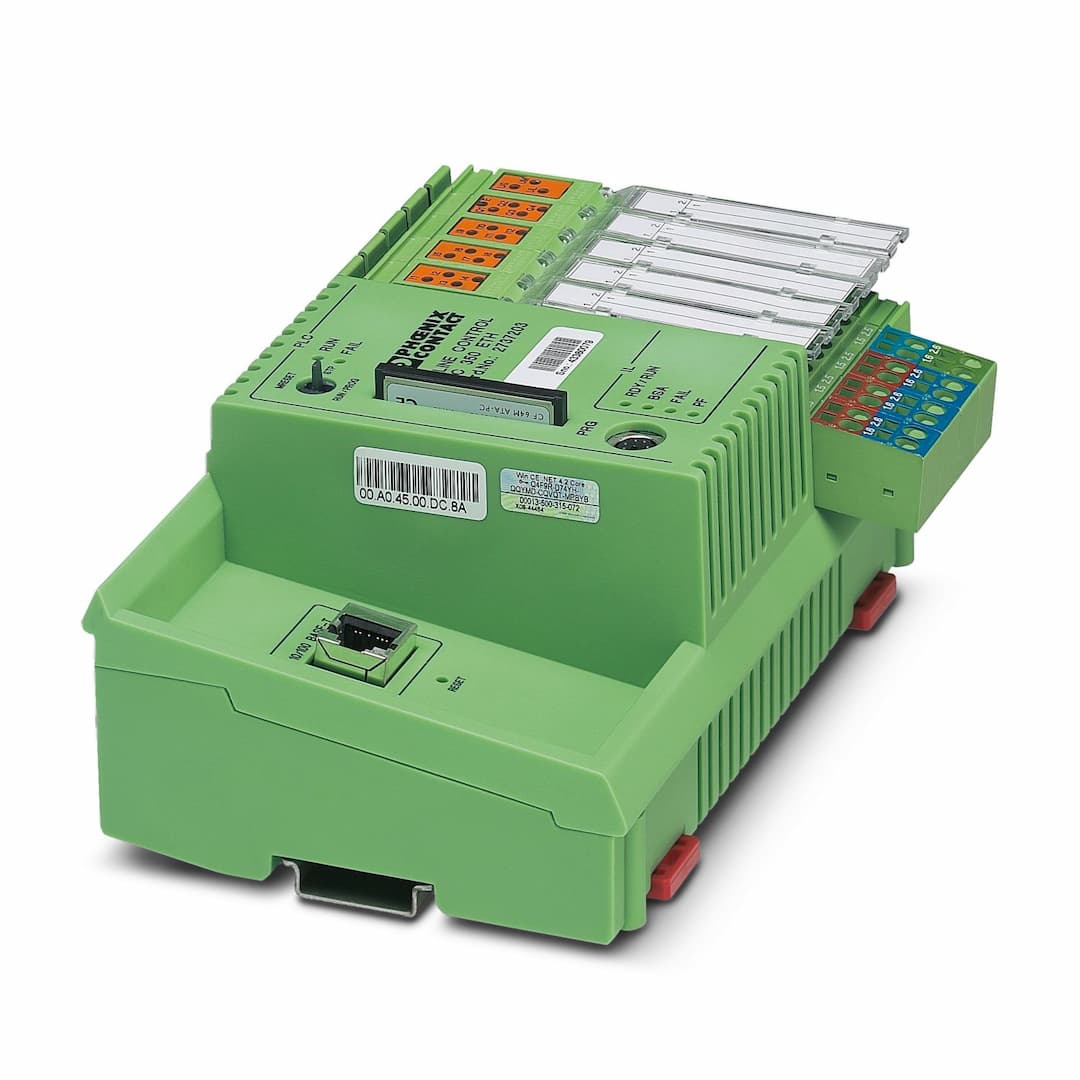

ILC 330 PN
Selling Points
- 1Highly modular design for adaptable automation systems.
- 2Integrated PROFINET interface for seamless communication and parameterization.
- 3Supports multiple protocols including HTTP, FTP, SNTP, SNMP, SMTP, SQL, and MySQL.
- 4Compact dimensions (182 mm width, 140.5 mm height, 71.5 mm depth) for space-efficient installations.
- 5Robust technical specifications with a typical current consumption of 250 mA and supply voltage range of 20.4 V DC to 30 V DC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Controller | Product family | Inline |
Type | Inline format with alignable I/Os | Diagnostics display | no |
Retentive data storage | 64 kByte (NVRAM) | Program memory | typ. 750 kByte (64 K instructions (IL)) |
Data storage system | 1.5 Mbyte | Number of control tasks | 16 |
Amount of process data | max. 8192 bit (INTERBUS) | Number of supported devices | max. 512 (in total, of which 254 are remote bus devices/bus segments) |
Number of local bus devices that can be connected | max. 63 (observe current consumption) | Number of devices with parameter channel | max. 62 |
Number of supported branch terminals with remote bus branch | 15 | Device function | PROFINET-Controller |
Specification | Version 1.1 | Update rate | min. 1 ms |
Diagnostics display | no | Controller redundancy | no |
Engineering tool | PC Worx | Diagnostics tool | DIAG+ from version 1.14 |
Transmission medium | Copper | Maximum power dissipation for nominal condition | max. 6 W |
Supply voltage | 24 V DC ±5 % | Supply voltage range | 20.4 V DC ... 30 V DC |
Residual ripple | ± 5 % | Typical current consumption | 250 mA (no local bus device connected during idling, bus inactive) |
Realtime clock | Integrated (battery backup) | Supply voltage | 7.5 V DC ±5 % |
Supply voltage | 24 V DC -15 % / +20 % | Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) |
Supply voltage | 24 V DC -15 % / +20 % (in accordance with EN 61131-2) | Current draw | max. 5 A |
Input name | Digital inputs | Description of the input | Eight fast inputs, interrupt input |
Number of inputs | 12 | Connection method | Inline potential distributor |
Connection technology | 2-, 3-, 4-conductor | Output name | Digital outputs |
Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
Number of outputs | 4 | Output voltage | 24 V DC |
Maximum output current per channel | 500 mA | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Connection method | Inline data jumper |
Transmission speed | 500 kBaud / 2 MBaud (can be switched) | Bus system | RS-232 |
Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2), Ethernet 10/100 (RJ45) | Transmission physics | Copper |
No. of channels | 1 | Bus system | RJ45 |
Connection method | RJ45 jack | Transmission speed | 10/100 Mbps |
No. of channels | 1 | Width | 182 mm |
Height | 140.5 mm | Depth | 71.5 mm |
Color | green (RAL 6021) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Shock | 25g, Criterion 1, according to IEC 60068-2-27 | Vibration (operation) | 5g, accordance to IEC 60068-2-6 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
