Product Model

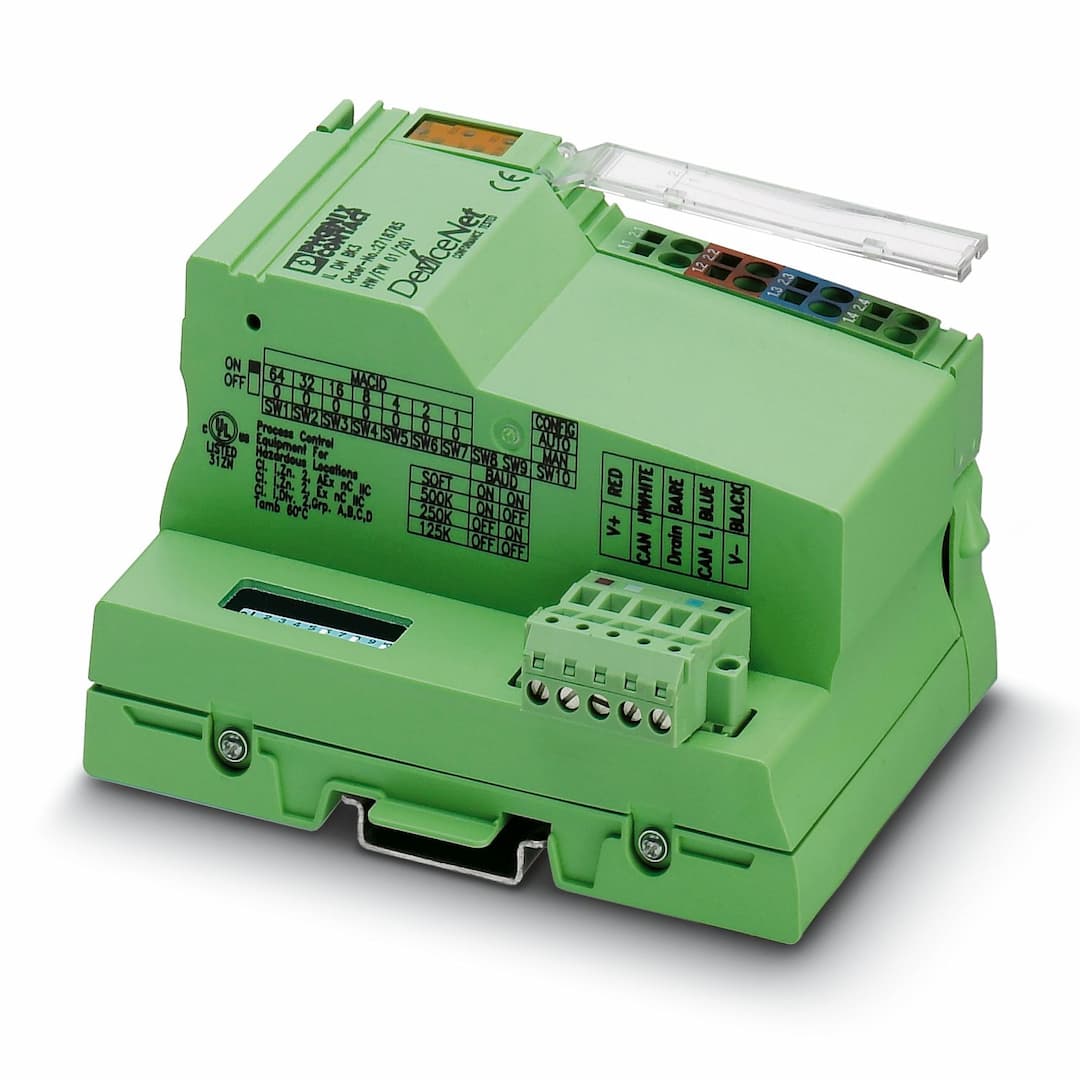

IL DN BK3-PAC
Selling Points
- 1Flexible Integration: Seamlessly connects INTERBUS Inline automation kits with DeviceNet networks.
- 2Precise Diagnostics: Local LEDs provide precise diagnostics for system health.
- 3Robust Connectivity: Supports up to 63 I/O terminals and 8 parameter channels.
- 4Versatile Power Supply: Operates with 24 V DC, 19.2 V DC to 30 V DC, and up to 8 A DC.
- 5Durable Design: IP20 degree of protection, suitable for industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 85 mm | Height | 119.8 mm |
Depth | 71.5 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Color | green | No. of channels | 1 |
Connection method | TWIN COMBICON | Number of positions | 10 |
Transmission speed | 500 kBaud, 250 kBaud, 125 kBaud (Can be set via DIP switch or programmed) | Connection method | Inline data jumper |
Connection method | 8-pos. Inline connector | Max. number of local bus devices | 63 (The on-board I/Os are two devices) |
Number of local bus devices that can be connected | max. 63 | Number of devices with parameter channel | max. 8 |
Number of supported branch terminals with remote bus branch | 0 | ID code (hex) | none |
Connection technology | Spring-cage connection | Product type | I/O component |
Product family | Inline | Type | modular |
Protective circuit | Reverse polarity protection | Current draw | max. 1.25 A |
Supply voltage | 7.5 V DC ±5 % | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3500 m above sea level) |
Ambient temperature (storage/transport) | -45 °C ... 85 °C | Permissible humidity (operation) | 95 % (non-condensing) |
Permissible humidity (storage/transport) | 85 % (non-condensing) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
