Product Model

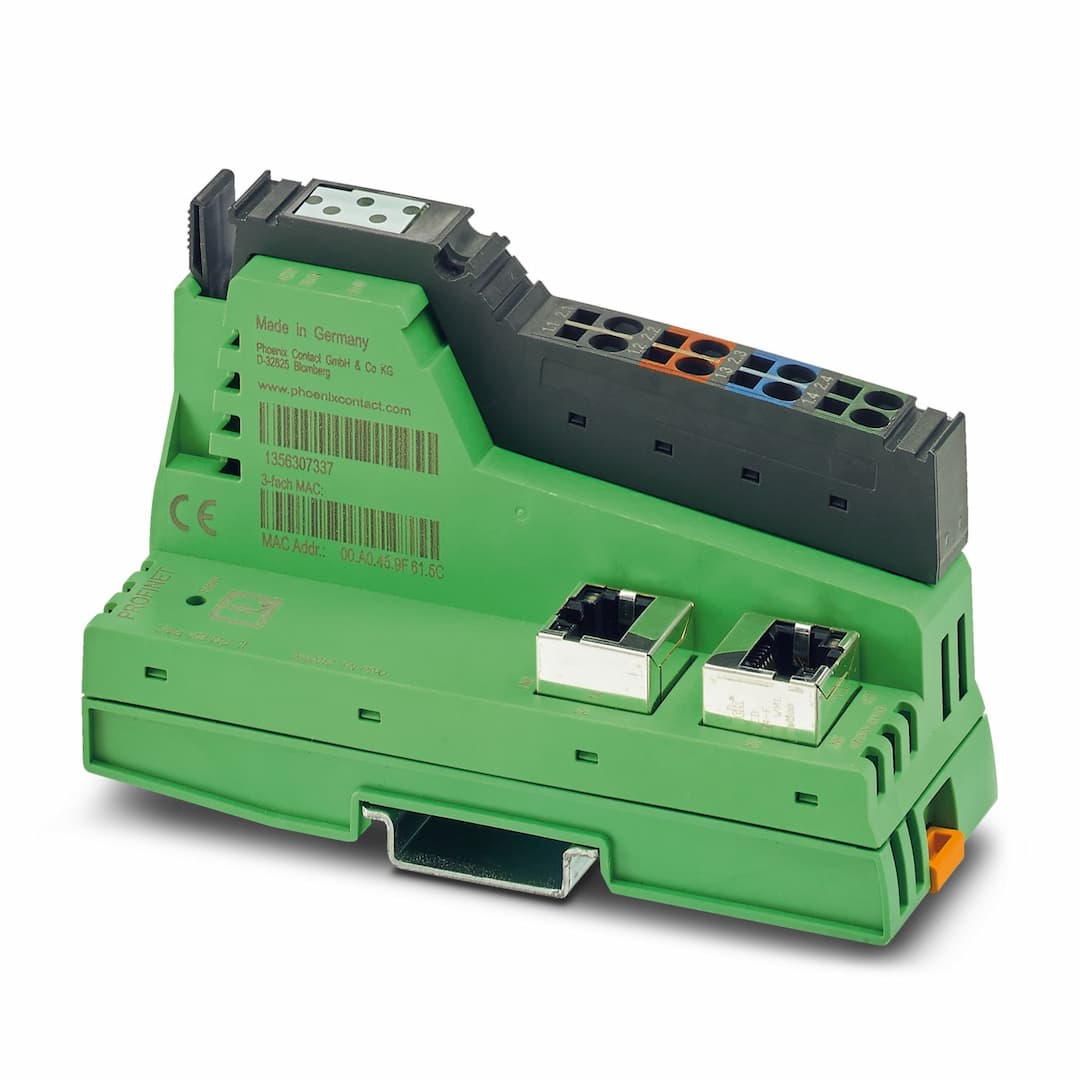

IL ETH BK-PAC
Selling Points
- 1Integrated Ethernet Switch: 2 Ethernet ports with auto negotiation and autocrossing.
- 2High-Speed Transmission: Supports transmission speeds of 10 Mbps and 100 Mbps.
- 3Automatic Speed Detection: Automatically detects transmission speed in the local bus (500 kbps or 2 Mbps).
- 4Digital I/Os: Equipped with 8 digital inputs and 4 digital outputs onboard.
- 5Web-Based Management: Offers web-based management for easy configuration and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 40 mm | Height | 119.4 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | Number of interfaces | 2 (Connected to functional ground with a capacitor) |
Connection method | RJ45 jack | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps (Half or full duplex mode (automatic detection, can be adjusted manually)) | Transmission physics | Ethernet in RJ45 twisted pair |
Number of interfaces | 1 | Connection method | Inline data jumper |
Transmission speed | 500 kbps / 2 Mbps (automatic detection, no combined system) | Number of supported devices | max. 63 (per station) |
Number of local bus devices that can be connected | max. 63 | Number of devices with parameter channel | max. 16 |
Number of supported branch terminals with remote bus branch | 3 | ID code (hex) | none |
Product type | I/O component | Product family | Inline |
Type | modular | Mounting position | any |
Scope of delivery | including Inline connector and labeling field | Article revision | 04 |
Overvoltage category | II (IEC 60664-1, EN 60664-1) | Pollution degree | 2 (IEC 60664-1, EN 60664-1) |
Maximum power dissipation for nominal condition | 4.8 W | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 0.95 A (with max. number of connected I/O terminal blocks)
typ. 74 mA (no local bus devices connected) |
Supply voltage | 7.5 V DC | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Test voltage: Ethernet interface 1 / Ethernet interface 2 | 1500 V AC, 50 Hz, 1 min |
Test voltage: Ethernet interface 1 / logic (U | 1500 V AC, 50 Hz, 1 min | Test voltage: Ethernet interface 1 / I/O (U | 1500 V AC, 50 Hz, 1 min |
Test voltage: Ethernet interface 1 / functional ground | 1500 V AC, 50 Hz, 1 min | Test voltage: Ethernet interface 2 / logic (U | 1500 V AC, 50 Hz, 1 min |
Test voltage: Ethernet interface 2 / I/O (U | 1500 V AC, 50 Hz, 1 min | Test voltage: Ethernet interface 2 / functional ground | 1500 V AC, 50 Hz, 1 min |
Test voltage: Communications power (U | 500 V AC, 50 Hz, 1 min | Test voltage: Communications power (U | 500 V AC, 50 Hz, 1 min |
Test voltage: I/O (U | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
