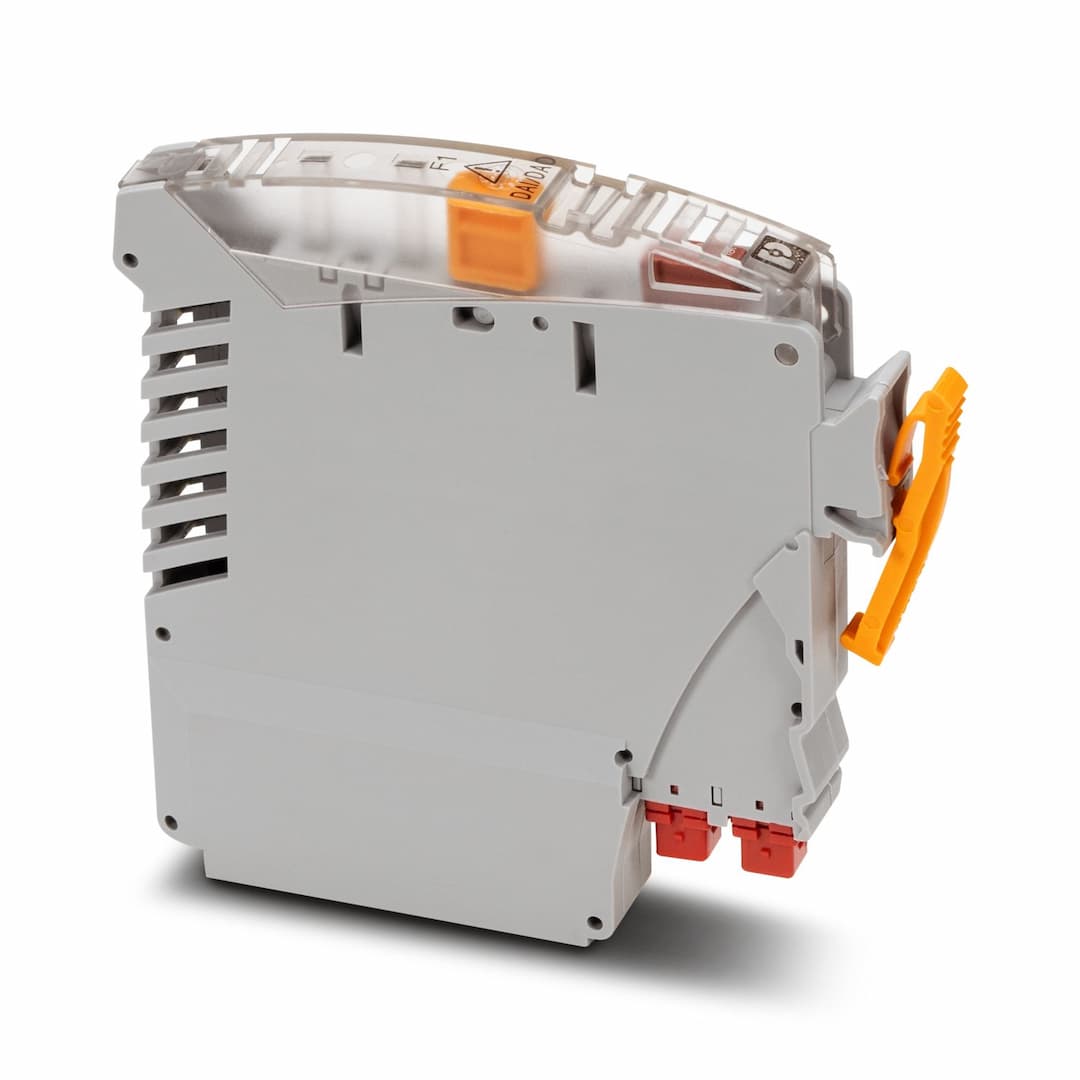

Product Model
IOA PR-DAI/DAO/F/DS/2A/EX
Selling Points
- 1Built for harsh environments with IP20 protection.
- 2Operates between -40°C and 75°C.
- 3Suitable for various industrial applications.
- 4Ensures stable data transfer with advanced error-detection features.
- 5Easy to integrate and expand as needed.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VIP I/O-Marshalling |
Number of positions | 1 | Article revision | 02 |
Overvoltage category | II | Pollution degree | 2 |
Max. operating voltage U | 30 V | Max. permissible current | 1 A (Signal) |
Max. total current of voltage supply | 2 A (1048208 fuse limited)
0.25 A (1188706 fuse limited) | Input voltage U | 30 V |
Input current I | 1 A | Inductance Li | 0 mH |
Capacitance Ci | 0 µF | Max. output voltage U | U |
Max. output current I | I | Max. output power P | P |
Width | 10.3 mm | Height | 64.2 mm |
Depth | 72.9 mm | Color | gray (RAL 7042) |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 75 °C |
Ambient temperature (storage/transport) | -40 °C ... 75 °C | Altitude | ≤ 2000 mm |
Permissible humidity (operation) | 0 % ... 95 % (non-condensing) | Identification | II 3G Ex ec IIC T4 Gc
II 3G Ex ic IIC T4 Gc |
Certificate | CSANe 20ATEX3152X | Identification | Ex ec IIC T4 Gc
Ex ic IIC T4 Gc |
Certificate | IECEx SIR 21.0005X | Identification | II 3G Ex ec IIC T4 Gc
II 3G Ex ic IIC T4 Gc |
Certificate | PxCIF23UKEX1048208X | Identification | Class I, Div. 2, Groups A, B, C, D
Class I, Zone 2, AEx ic IIC T4 Gc
ANIFW apparatus for connection to:
Ex ic IIC T4 Gc
Ex ec IIC T4 Gc |
Certificate | CSA 21CA80047687X | Standards/regulations | IEC 60664
DIN EN 50178 |
Mounting type | Plug-in mounting | Assembly note | Plugs into VIP/...BASE... |
Mounting position | any |
Specifications may be subject to change without notice
