Product Model

IOA-PSR-PS22-1NO-1NC-24DC

In Stock
Last updated: 2025/4/17
Phoenix Contact IOA-PSR-PS22-1NO-1NC-24DC

Selling Points

  • 1Designed for SIL 3 high and low-demand applications, ensuring high safety standards.
  • 2Couples digital output signals to the I/O, enhancing system reliability.
  • 3Ensures safe-state-off operation, reducing risk of electrical shock.
  • 4Includes a test pulse filter for accurate signal testing and validation.
  • 5Pluggable design with dimensions of 10 mm x 75 mm x 112 mm, perfect for space-constrained applications.
Product Details

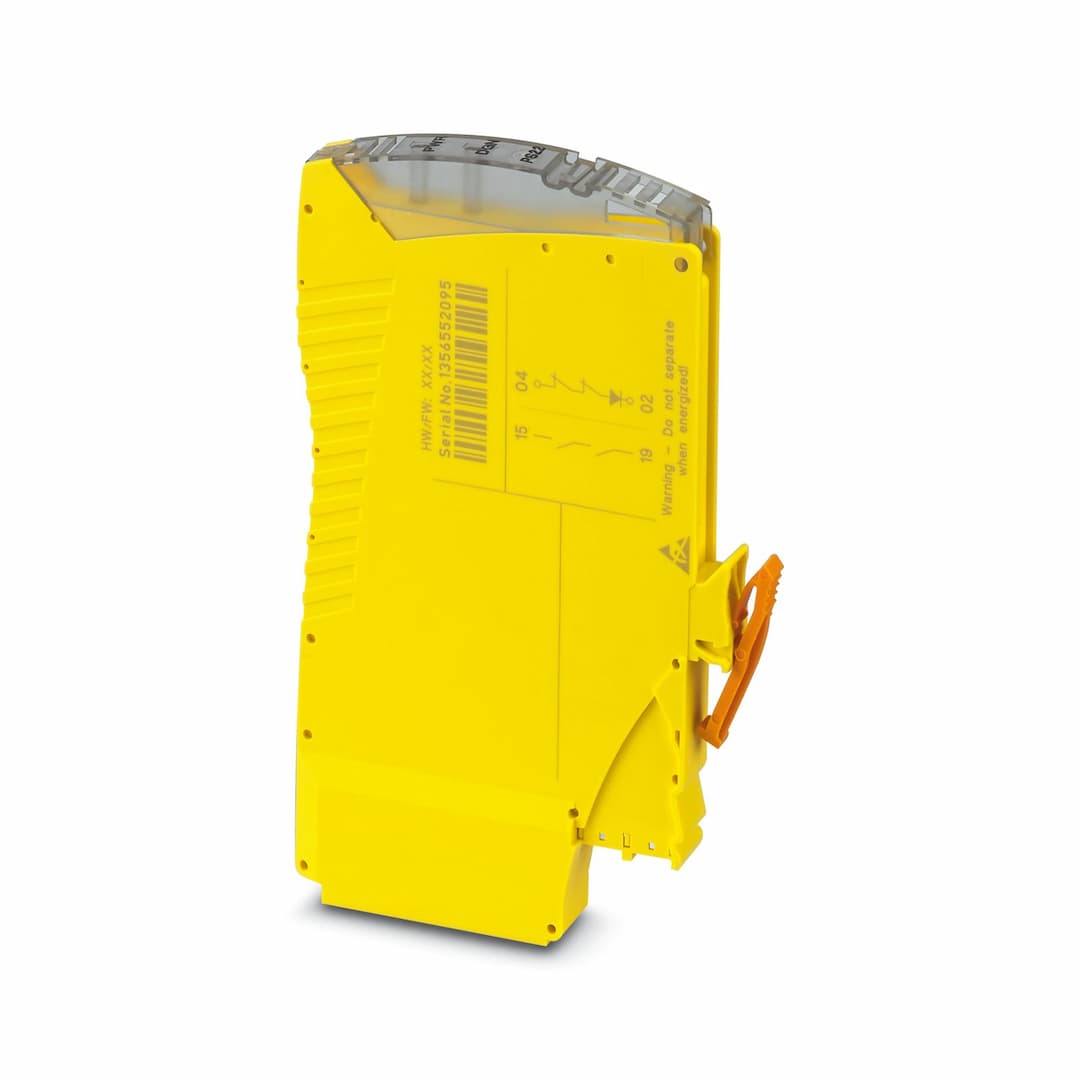

IOA-PSR-PS22-1NO-1NC-24DC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Note on application
Only for industrial use
Product type
Coupling relay
Product family
PSRmini
Application
Safe switch off High demand Low demand Ex
Relay type
Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Typ. starting time with U
150 ms (when controlled via pins 05/06)
Typical release time
30 ms (when controlled via pins 05/06)
Recovery time
500 ms
Maximum power dissipation for nominal condition
1.86 W (at U
Nominal operating mode
100% operating factor
Rated insulation voltage
250 V AC
Rated surge voltage/insulation
Basic insulation 4 kV between all current paths and housing Safe isolation, 6 kV reinforced insulation from the control circuit (05/06) and diagnostics circuit (03/04/02) to the enabling current path (15/19)
Rated control circuit supply voltage U
19.5 V DC ... 30 V DC
Rated control circuit supply voltage U
24 V DC -20 % / +25 %
Rated control supply current I
typ. 25 mA
Power consumption at U
typ. 0.77 W
Inrush current
typ. 100 mA (Δt s)
Filter time
max. 3 ms (at pins 05/06 in the event of voltage dips at U max. 3 ms (at pins 05/06; low test pulse width) ≥ 50 ms (at pins 05/06; low test pulse width) max. 17 ms (at pins 05/06; high test pulse width) ≥ 600 ms (at pins 05/06; high test pulse width)
Diagnostic supply voltage U
24 V DC -20 % / +25 % (at pin 04)
Input current at U
7 mA (at pins 04/03 for U
Inrush current at U
typ. 200 mA (Δt D)
Protective circuit
Surge protection; 35 V suppressor diode (pins 05/06)33 V suppressor diode (pins 04/03)35 V suppressor diode (pins 02/03) Polarity reversal protection for rated control circuit supply voltage and diagnostic supply voltage
Output description
safety-related N/O contacts
Number of outputs
1 (undelayed)
Contact switching type
1 enabling current path
Contact material
AgSnO
Switching voltage
min. 12 V AC/DC max. 230 V AC/DC
Switching capacity
min. 60 mW
Inrush current
min. 3 mA max. 3 A
Switching capacity in accordance with IEC 60947-5-1
3 A (24 V (DC13)) 3 A (230 V (AC15))
Limiting continuous current
3 A
Sq. Total current
9 A
Switching frequency
0.1 Hz
Mechanical service life
10x 10
Output fuse
3 A gL/gG
Output description
Safety-related N/C contacts
Number of outputs
1 (undelayed)
Contact switching type
1 confirmation current path
Contact material
AgCuNi, + Au
Switching voltage
min. 19.2 V DC max. 30 V DC
Switching capacity
min. 20 mW
Inrush current
min. 1 mA max. 100 mA
Limiting continuous current
100 mA
Output fuse
150 mA Fast-blow
pluggable
yes
Connection method
Pluggable onto VIP base module
Status display
2 x LED bi-color (green, red)
Width
10 mm
Height
75 mm
Depth
112 mm
Color (Housing)
yellow (RAL 1018)
Housing material
PA 6.6
Stop category
0
Category
4
Performance level (PL)
e (3 A DC13; 3 A AC15; 8760 switching cycles/year)
Safety Integrity Level (SIL)
3 (Reference IEC 61508)
Safety Integrity Level (SIL)
3 (
Safety Integrity Level (SIL)
3 (
Safety Integrity Level (SIL)
3 (
Safety Integrity Level (SIL)
3 (
Safety Integrity Level (SIL)
3 (
Safety Integrity Level (SIL)
3
Degree of protection
IP20
Min. degree of protection of inst. location
IP54
Ambient temperature (operation)
-40 °C ... 70 °C (observe derating)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Maximum altitude
≤ 2000 m (Above sea level)
Max. permissible humidity (storage/transport)
75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation)
75 % (on average, 85% infrequently, non-condensing)
Shock
15 g (in the event of continuous stress caused by shock, contact reactions are possible.)
Vibration (operation)
10 Hz ... 150 Hz, amplitude 0.15 mm, 2g
Identification
 II 3G  Ex ec nC IIC T4 Gc
Certificate
Sira 17ATEX4293X
Identification
Ex ec nC IIC T4 Gc
Certificate
IECEx SIR 17.0078X
Identification
cULus
Certificate
E140324
Identification
Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, AEx ec nC IIC T4 Gc / Ex ec nC IIC T4 Gc
Certificate
70134758
Identification
CE-compliant
Standards/regulations
EN 60947-1, EN 60079-0, EN 60079-15
Mounting type
Plug-in mounting
Assembly note
See derating curve
Mounting position
vertical or horizontal
