Product Model

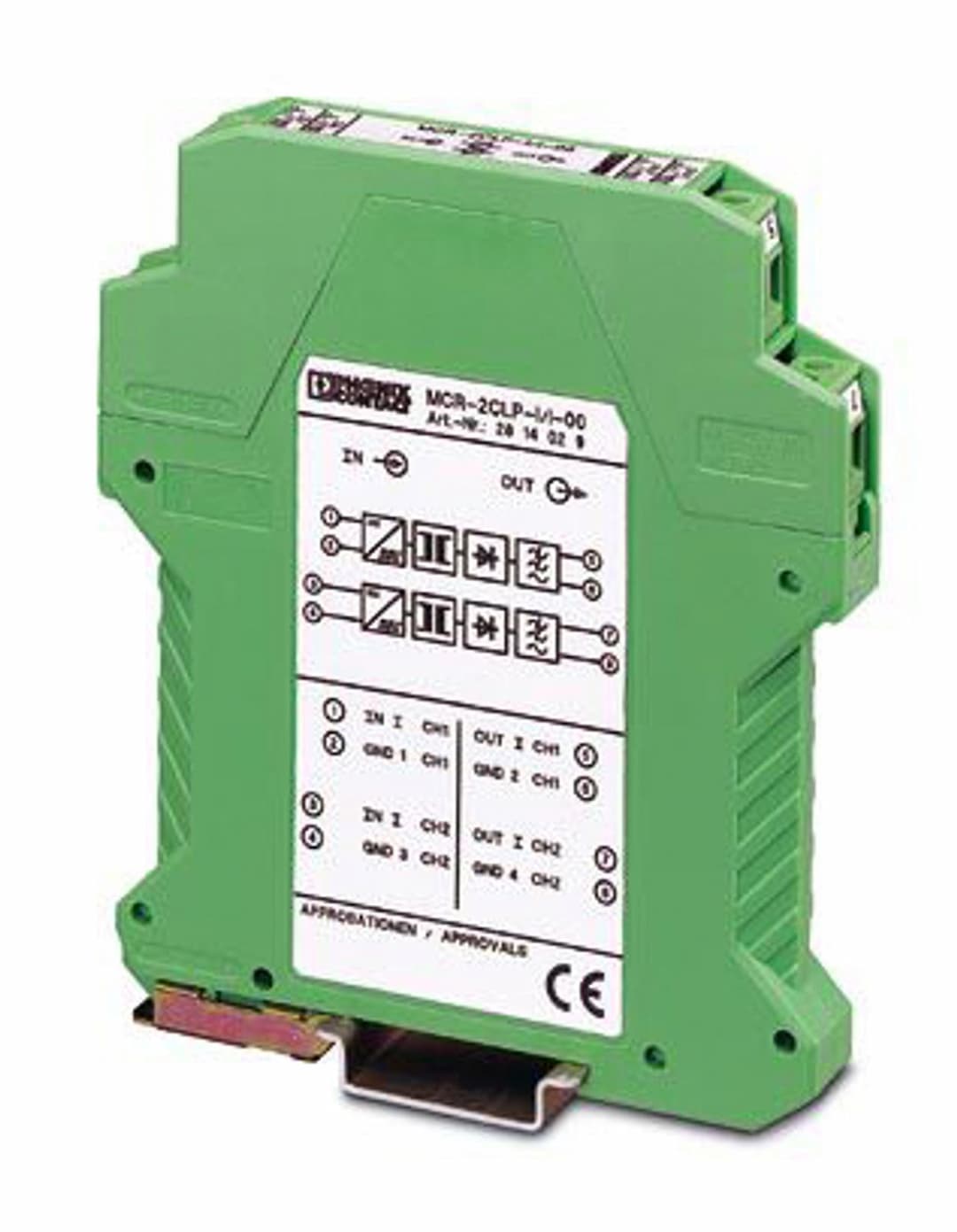

MCR-2CLP-I-I-00
Selling Points
- 1Electrical Isolation: Safely isolate electrical signals between input and output.
- 2Loop-Powered: Operates without auxiliary power, reducing complexity and cost.
- 3High Accuracy: Maintains signal transmission accuracy with a maximum transmission error of ≤ 0.1%.
- 4Wide Temperature Range: Operates in ambient temperatures from -10 °C to 70 °C.
- 5Compliant with Regulations: Meets WEEE/RoHS compliance standards since July 2007.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Passive separator | No. of channels | 2 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | < 75 Hz |
Maximum power dissipation for nominal condition | 100 mW | Test voltage input/output | 510 V AC (50 Hz, 60 s) |
Signal transmission behavior | In = Out | Step response (10-90%) | 5 ms (with 500 Ω load) |
Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) | Maximum transmission error | ≤ 0.1 % (of final value) |
Additional error, load-dependent | 0.02 % (of measured value) | Supply voltage range | no separate supply voltage necessary |
Description of the input | Current input | Number of inputs | 2 |
Configurable/programmable | no | Max. voltage input signal | 30 V (30 V overload) |
Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Max. current input signal | 50 mA (100 mA overload) |
Response current | < 50 µA | Input voltage limitation | 33 V (with Zener diode) |
Voltage dissipation | 2.5 V (I = 20 mA) | Number of outputs | 2 |
Configurable/programmable | no | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Max. current output signal | < 50 mA | Load/output load current output | ≤ 1375 Ω (at I = 20 mA output signal) |
Ripple | < 5 mV (rms) | Connection method | Pluggable screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Width | 12.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Color | green (RAL 6021) | Housing material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Ambient temperature (operation) | -10 °C ... 70 °C |
Certificate | CE-compliant | Identification | cULus |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
