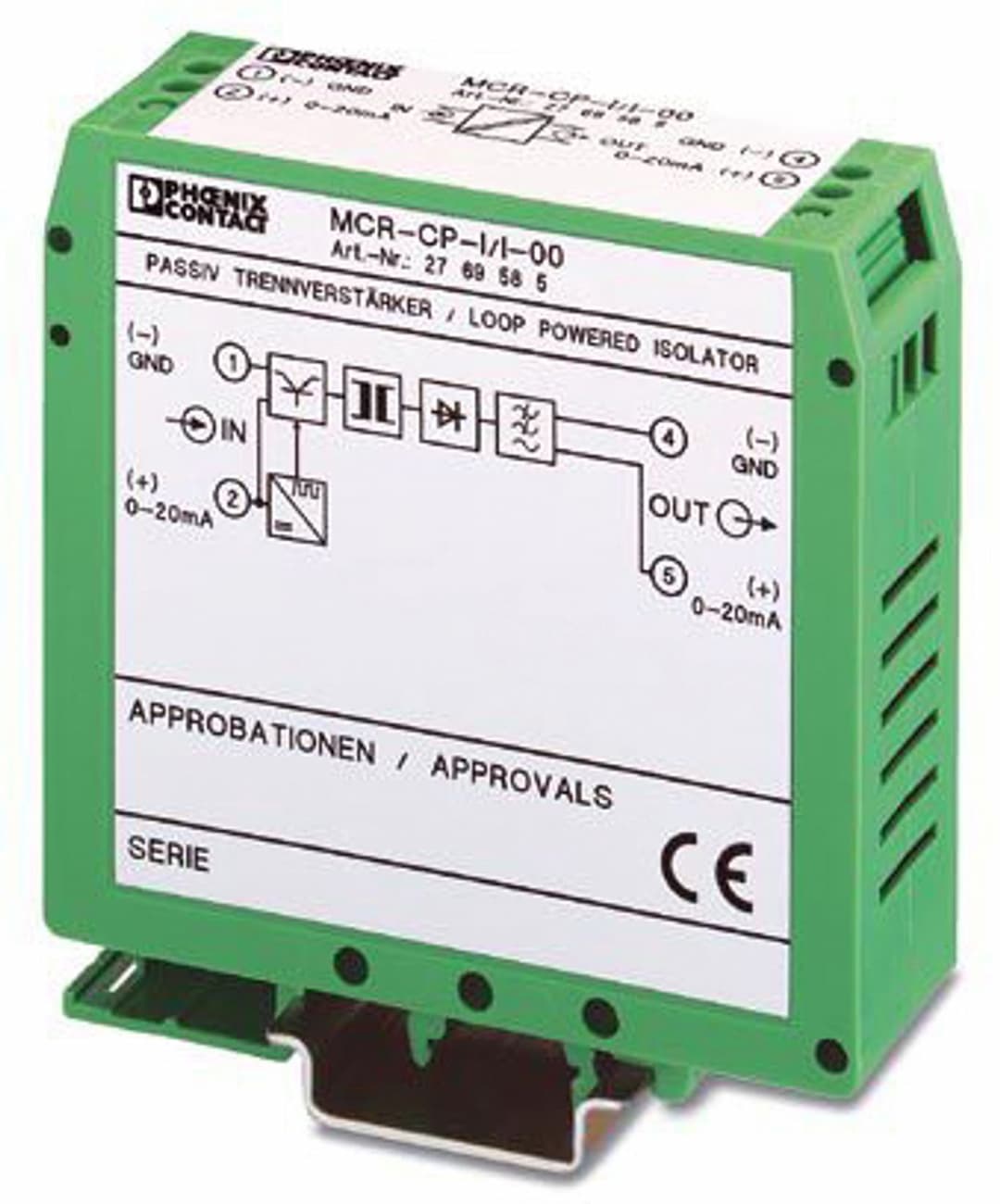

Product Model
MCR-CP-I/I-00
Selling Points
- 1Provides 3kV isolation between input and output signals.
- 2Operates without auxiliary power, simplifying installation and reducing costs.
- 3Ensures an error rate of 0.3%, ensuring precise signal transmission.
- 4Compatible with temperatures from 0°C to 55°C (32°F to 131°F).
- 5Weighs only 90 grams, making it easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Signal conditioner | No. of channels | 1 |
Limit frequency (3 dB) | 35 Hz | Maximum temperature coefficient | ≤ 0.01 % |
Temperature coefficient, typical | ≤ 0.003 % | Maximum transmission error | < 0.3 % (of final value) |
Transmission error, typical | ± 0.1 % (at 1 kΩ) | Configurable/programmable | no |
Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Load/output load current output | ≤ 1000 Ω |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Limit frequency (3 dB) | 35 Hz | Width | 25 mm |
Height | 79 mm | Depth | 93 mm |
Color | green (RAL 6021) | Housing material | Polyamide PA non-reinforced |
Ambient temperature (operation) | 0 °C ... 55 °C | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
