Product Model

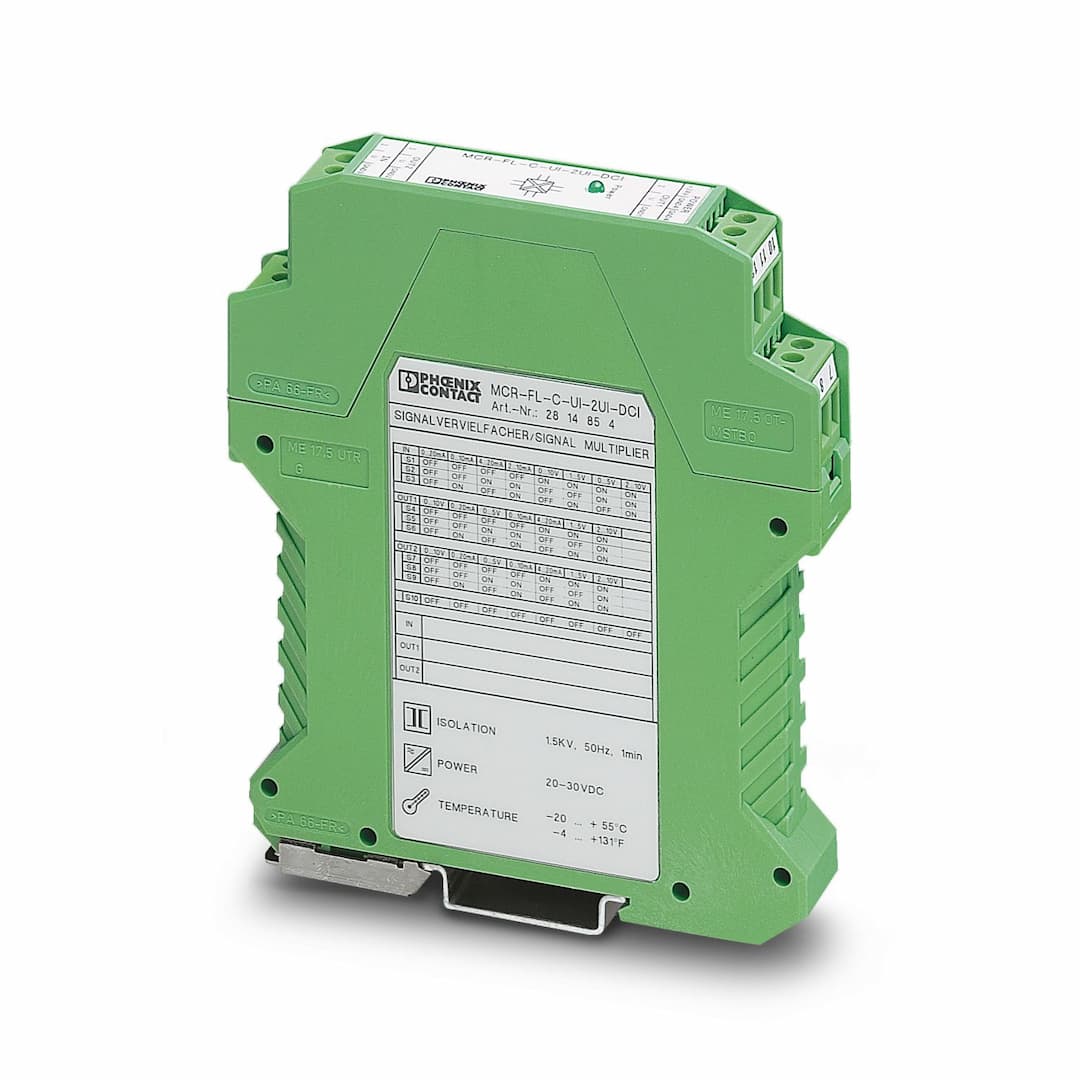

MCR-FL-C-UI-2UI-DCI
Selling Points
- 1Calibrated Selectable Inputs: Configure input and output signals to meet specific requirements.
- 24-Way Electrical Isolation: Ensure signal integrity with four-way isolation for safe and reliable operation.
- 3Robust Technical Specifications: Operate within a wide ambient temperature range (-25 °C to 55 °C) and meet IP20 protection standards.
- 4High Accuracy and Stability: Achieve maximum transmission error ≤ 0.15% and typical transmission error of 0.05%.
- 5Comprehensive Protective Circuits: Includes transient protection with a test voltage of 1.5 kV (50 Hz, 1 min.) for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Signal duplicator | No. of channels | 2 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | 30 Hz |
Maximum power dissipation for nominal condition | 15 mW | Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) |
Protective circuit | Transient protection | Step response (10-90%) | 12 ms |
Maximum temperature coefficient | < 0.015 %/K | Temperature coefficient, typical | 0.0075 %/K |
Maximum transmission error | ≤ 0.15 % (of final value) | Transmission error, typical | 0.05 % (of final value) |
Supply voltage range | 20 V DC ... 30 V DC | Max. current consumption | < 25 mA |
Description of the input | Current input | Number of inputs | 1 |
Configurable/programmable | Yes, preconfigured | Current input signal | 0 mA ... 24 mA (freely selectable in 0.1 mA steps) |
Max. current input signal | 50 mA | Input resistance current input | 50 Ω |
Current measuring range | min. 8 mA | Supply voltage | 24 V DC |
Description of the input | Voltage input | Configurable/programmable | Yes, preconfigured |
Voltage input signal | 0 V ... 12 V (freely selectable in 0.1 V steps) | Max. voltage input signal | 30 V |
Input resistance of voltage input | 200 kΩ | Voltage measuring range | min. 4 V |
Number of outputs | 2 | Configurable/programmable | Yes, preconfigured |
Voltage output signal | 0 V DC ... 10 V DC (refer to the order key)
2 V DC ... 10 V DC
0 V DC ... 5 V DC
1 V DC ... 5 V DC | Max. voltage output signal | 15 V |
Load/output load voltage output | ≥ 10 kΩ | Configurable/programmable | Yes, preconfigured |
Current output signal | 0 mA ... 20 mA (refer to the order key)
4 mA ... 20 mA
0 mA ... 10 mA | Max. current output signal | 35 mA |
Load/output load current output | ≤ 600 Ω | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Width | 17.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Color | green (RAL 6021) | Housing material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Certificate | CE-compliant | Identification | Class I, Div. 2, Groups A, B, C, D or Non-Hazardous Locations |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
