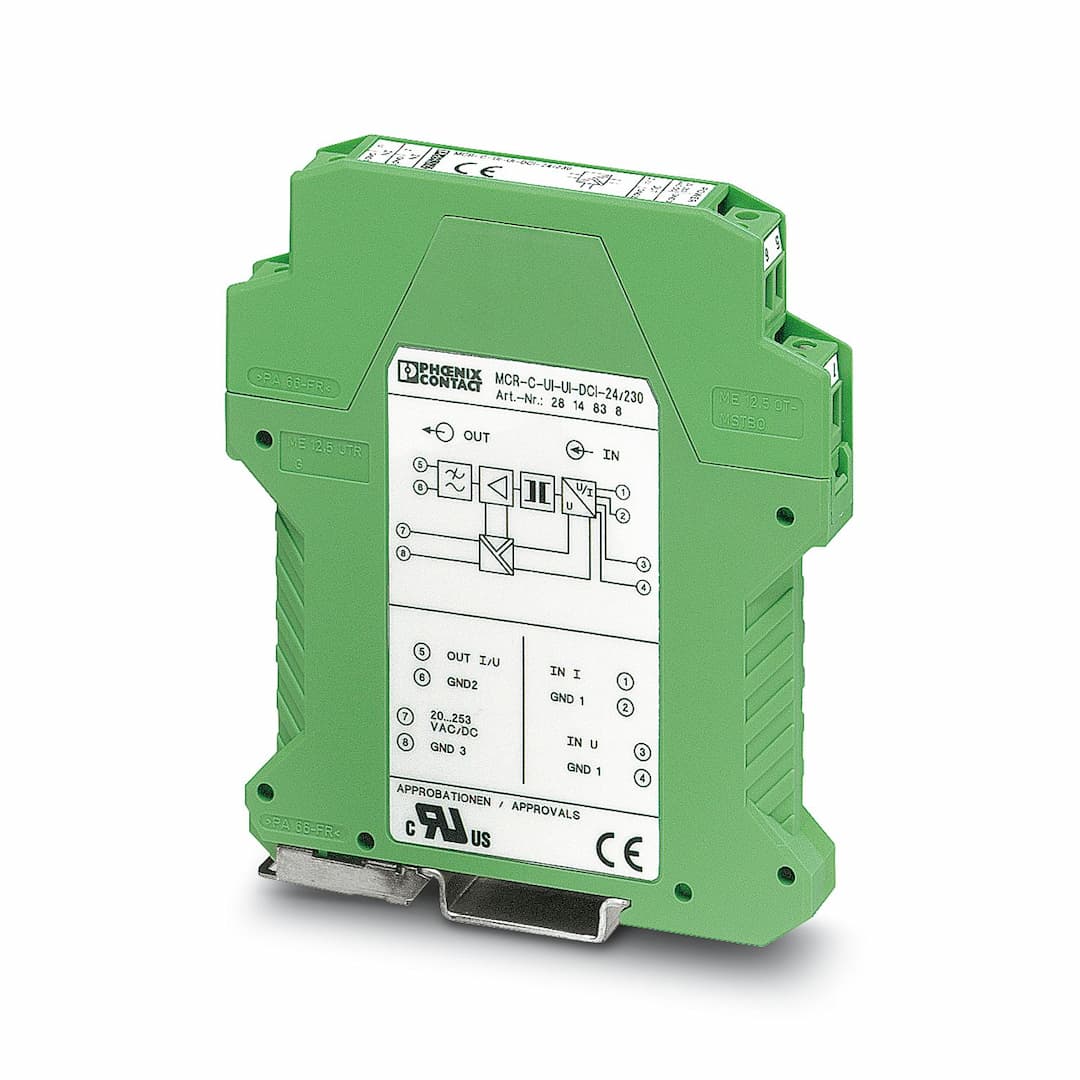

Product Model
MCR-FL-C-UI-UI-DCI-24/230
Selling Points
- 13-Way Isolation Amplifier: Process 0…20 mA, 4…20 mA, and 0…10 V standard signals.
- 2Robust Transient Protection: Ensures reliable operation with transient protection.
- 3Configurable Inputs: Easily adapt to various signal types with customizable input settings.
- 4High Accuracy: Achieve ≤ 0.1% maximum transmission error for precise signal conditioning.
- 5Compact Design: Ideal for space-constrained applications with a weight of 105.560 g per piece.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Signal conditioner | No. of channels | 1 |
Overvoltage category | II | Pollution degree | 2 |
Limit frequency (3 dB) | < 10 Hz (can be switched)
approx. 10 kHz (default setting, 10 Hz can be switched) | Test voltage, input/output/supply | 4 kV AC (50 Hz, 60 s) |
Test voltage | 1 kV AC/DC | Protective circuit | Transient protection |
Step response (10-90%) | 35 ms (10 Hz)
35 µs (10 kHz) | Maximum temperature coefficient | 0.005 %/K |
Maximum transmission error | ≤ 0.1 % (of final value) | Insulation | Basic insulation in accordance with IEC/EN 61010-1 |
Supply voltage range | 20 V AC/DC ... 253 V AC/DC | Max. current consumption | 30 mA (Without load current) |
Power consumption | approx. 2 VA (AC)
approx. 1 W (DC) | Description of the input | Current input |
Configurable/programmable | Yes, can be reconnected/switched | Current input signal | 0 mA ... 20 mA (default setting)
4 mA ... 20 mA |
Max. current input signal | approx. 22 mA | Voltage dissipation | approx. 250 mV (at 20 mA) |
Description of the input | Voltage input | Voltage input signal | 0 V ... 10 V |
Max. voltage input signal | 11 V | Input resistance of voltage input | approx. 1 MΩ |
Configurable/programmable | Yes, can be switched | Voltage output signal | 0 V ... 10 V |
Max. voltage output signal | 11 V | Current output signal | 0 mA ... 20 mA (default setting)
4 mA ... 20 mA |
Max. current output signal | approx. 22 mA | Load/output load voltage output | ≥ 1 kΩ (at 10 V) |
Load/output load current output | ≤ 600 Ω (at 20 mA) | Ripple | < 10 mV |
Connection method | Pluggable screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Width | 12.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color | green (RAL 6021) |
Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
Ambient temperature (operation) | -10 °C ... 70 °C | Electromagnetic compatibility | Conformance with EMC directive |
Mounting position | any |
Specifications may be subject to change without notice
