Product Model

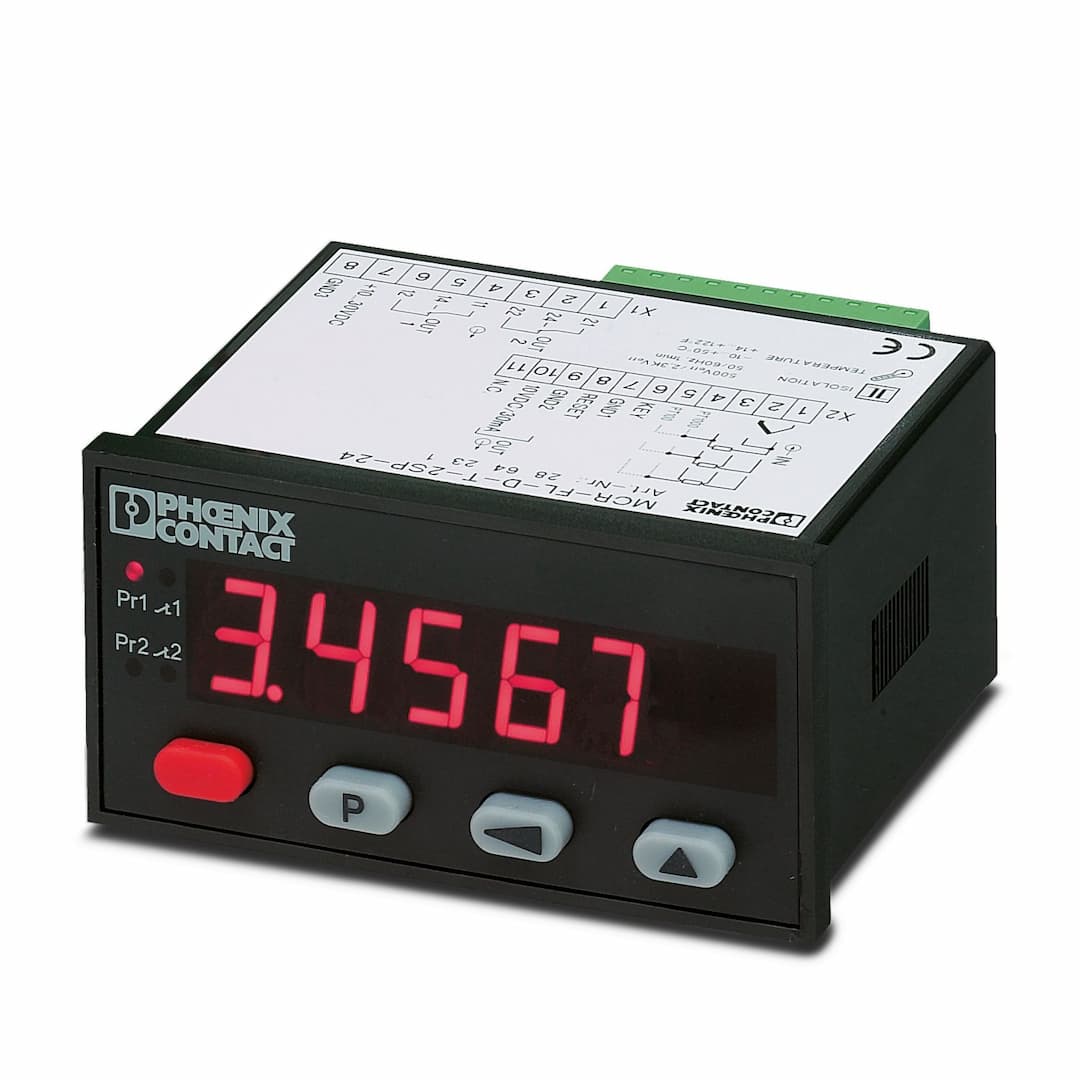

MCR-FL-D-T-2SP- 24
Selling Points
- 1Measures temperatures and linear mV characteristic curves.
- 2Compatible with resistance thermometers in 2, 3, or 4-conductor technology.
- 3Includes 2 x relay outputs for switching applications.
- 4Operates within an ambient temperature range of -20°C to 65°C.
- 5Features IP65 protection from the front for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Display module | Test voltage, input/output/supply | 500 V |
Supply voltage range | 10 V DC ... 30 V DC | Power consumption | max. 2 W |
Max. voltage input signal | 10 V DC | Available input sources | Resistance thermometers in 2, 3 or 4-conductor technology (in accordance with DIN 43760/DIN IEC 751), e.g. Pt 100/Pt 1000 (-200...+800°C)
Thermocouple sensors (in accordance with DIN IEC 584-1/DIN 43710): B, E, J, K, N, R, S, T |
Switching level "1" signal | 4 V DC ... 30 V DC | Switching level "0" signal | 0 V DC ... 2 V DC |
System hum suppression | Digital filtering 50/60 Hz | Input reset impulse | > 5 ms to reset the totalizer / the relay outputs |
Measuring rate | 1 measurement/second | Input resistance of voltage input | > 2 MΩ |
Sensor type: | -200 °C ... 800 °C (freely adjustable)
-200 °C ... 800 °C (freely adjustable)
0 °C ... 1820 °C (freely adjustable)
-200 °C ... 1000 °C (freely adjustable)
-210 °C ... 1200 °C (freely adjustable)
-200 °C ... 1372 °C (freely adjustable)
-200 °C ... 1300 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-210 °C ... 400 °C (freely adjustable) | Linear resistance measuring range | 0 Ω ... 4000 Ω (Fault tolerance ± 2 Ω)
0 Ω ... 400 Ω (Fault tolerance ± 0.2 Ω) |
Linear mV signal range | 0 mV ... 100 mV
-100 mV ... 100 mV | Contact switching type | 2 changeover contacts |
Contact material | AgCdO | Maximum switching voltage | 300 V DC
250 V AC |
Min. switching current | 30 mA DC | Max. switching current | 3 A |
Interrupting rating (ohmic load) max. | 50 W
2000 VA | Connection method | Pluggable screw connection |
Stripping length | 8 mm | Screw thread | M2 |
Conductor cross section rigid | 0.14 mm² ... 1 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 26 ... 16 | Connection method | Pluggable screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Width | 96 mm |
Height | 48 mm | Depth | 93.1 mm |
Housing material | Macrolon 2405 | Degree of protection | IP65 (Front) |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | UL 508 Recognized |
Specifications may be subject to change without notice
