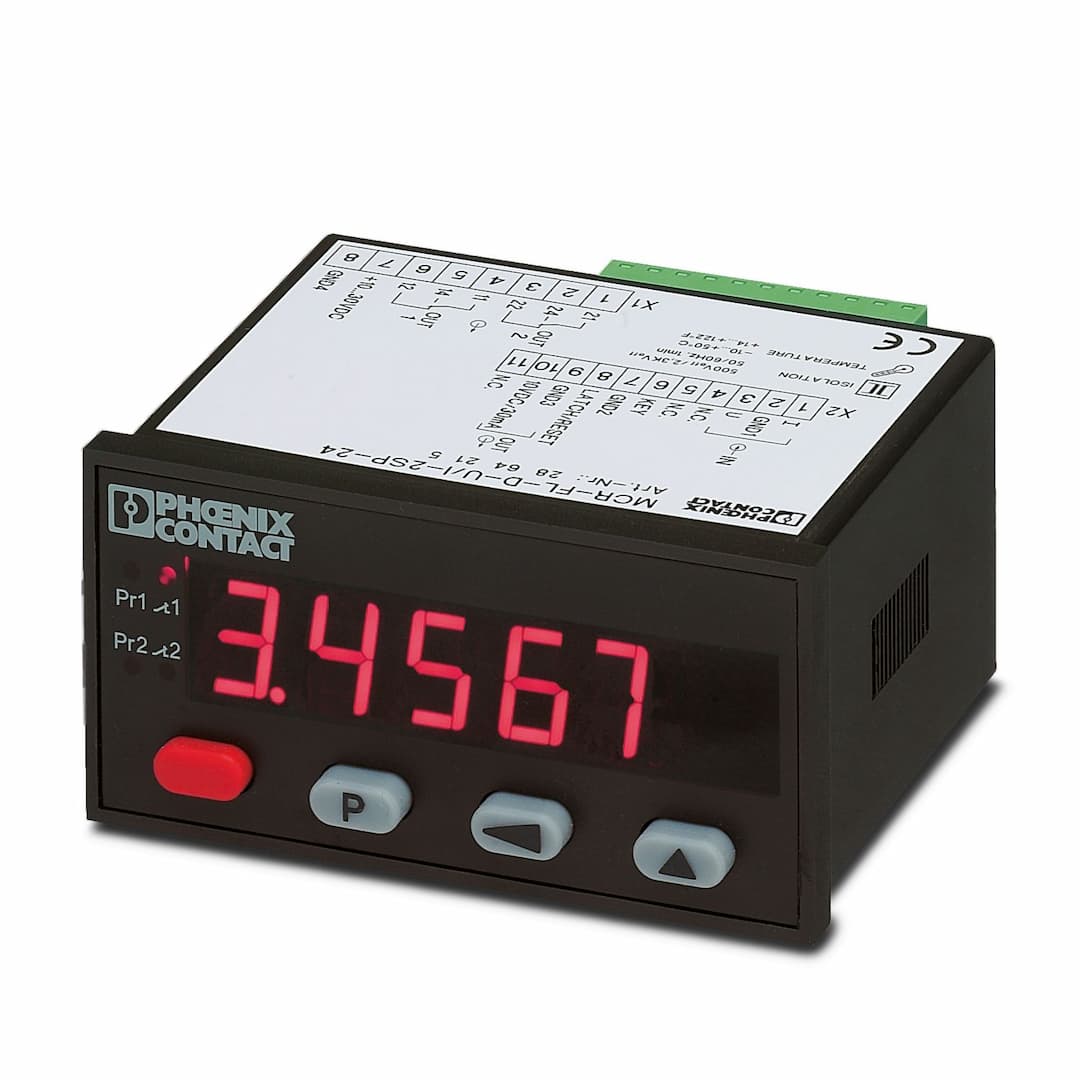

Product Model
MCR-FL-D-U-I-2SP- 24
Selling Points
- 196 x 48 mm Display: Compact and clear display for easy signal measurement.
- 2Electrical Isolation: Ensures safe operation with electrical isolation.
- 35-Digit Display: Accurate and detailed signal display.
- 4Totalizer Function: Tracks and totals signal values.
- 52 Relay Outputs: Adjustable limit values for customizable control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Digital displays | Maximum power dissipation for nominal condition | 2 W |
Test voltage, input/output/supply | 500 V | Supply voltage range | 10 V DC ... 30 V DC |
Power consumption | max. 2 W | Voltage input signal | 0 V ... 10 V
-10 V ... 10 V |
Max. voltage input signal | ± 30 V | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Max. current input signal | 50 mA | Switching level "1" signal | 4 V DC ... 30 V DC |
Switching level "0" signal | 0 V DC ... 2 V DC | Input resistance of voltage input | > 1 MΩ |
Input resistance current input | < 50 Ω | Resolution inputs (voltage) | 1 mV |
Resolution inputs (current) | 2 µA | System hum suppression | Digital filtering 50/60 Hz |
Input latch signal | Display stop | Input reset impulse | > 5 ms to reset the totalizer / the relay outputs |
Measuring rate | Approximately 2 measurements/second | Contact switching type | 2 changeover contacts |
Contact material | AgCdO | Maximum switching voltage | 300 V DC
250 V AC |
Min. switching current | 30 mA DC | Max. switching current | 3 A |
Interrupting rating (ohmic load) max. | 50 W
2000 VA | Connection method | Pluggable screw connection |
Stripping length | 8 mm | Screw thread | M2 |
Conductor cross section rigid | 0.14 mm² ... 1 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 26 ... 16 | Connection method | Pluggable screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Width | 96 mm |
Height | 48 mm | Depth | 93.1 mm |
Housing material | Macrolon 2405 | Degree of protection | IP65 (Front) |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | UL 508 Recognized |
Specifications may be subject to change without notice
