Product Model

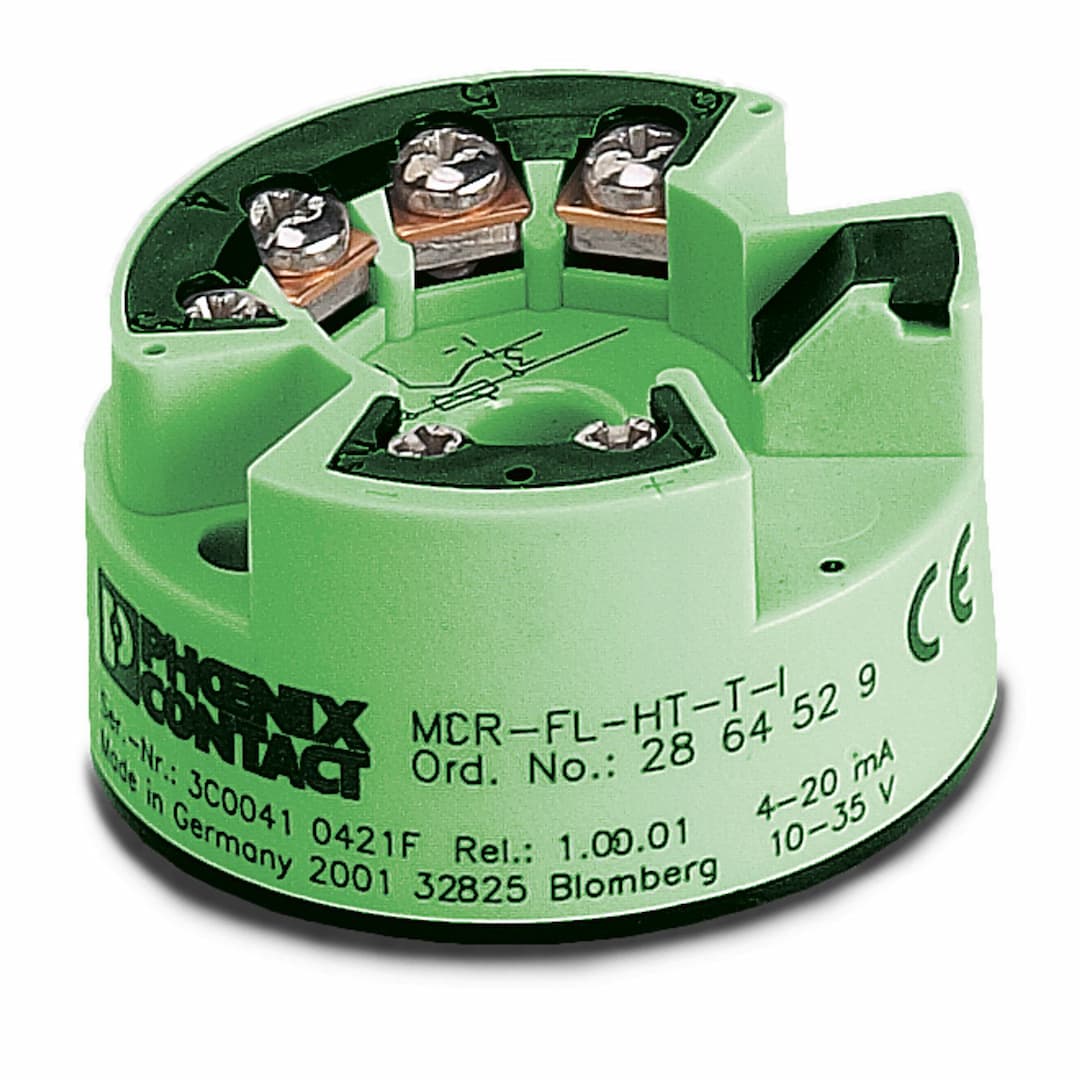

MCR-FL-HT-T-I
Selling Points
- 1Programmable via MCR/PI-CONF-WIN software for customized configurations.
- 2Intrinsically safe for use in hazardous environments, meeting Ex ia IIC standards.
- 3Supports multiple sensor types: Pt, Ni (100, 500, 1000), and thermocouples (B, C, D, E, J, K, L, N, R, S, T, U).
- 4Loop-powered design simplifies installation and reduces wiring complexity.
- 5High accuracy: Transmission error ±0.1 Ω for resistance-type sensors and ±20 µV for voltage sensors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Temperature transmitter | Configuration | Using MCR-PI-CONF-WIN configuration software package |
Article revision | 00 | Switch-on delay | 6 s |
Test voltage input/output | 2 kV AC (50 Hz, 60 s) | Step response (10-90%) | < 2 s |
Transmission error voltage sensor | ±20 µV (-10 mV ... 100 mV) | Transmission error thermocouples | typ. 0.5 K (K, J, T, E, L, U), 1.0 K (N, C, D), 2.0 K (S, B, R) |
Transmission error resistance-type sensor | ±0.1 Ω (10 ... 400 Ω), ±1.5 Ω (10 ... 2000 Ω) | Transmission error resistance thermometer | 0.2 K (Pt 100, Ni 100), 0.5 K (Pt 500, Ni 500), 0.3 K (Pt 1000, Ni 1000) |
Designation | Loop-powered | Supply voltage range | 8 V DC ... 35 V DC |
Max. current consumption | < 3.5 mA | Number of inputs | 1 |
Input signal | Temperature | Configurable/programmable | Yes, programmable |
Sensor types (RTD) that can be used | Pt, Ni (100, 500, 1000); min. measurement range 10 K | Sensor types that can be used (TC) | B, C, D, E, J, K, L, N, R, S, T, U; minimum measurement range 50 K/500 K |
Sensor type: | -200 °C ... 850 °C (freely adjustable)
-200 °C ... 250 °C (freely adjustable)
-200 °C ... 250 °C (freely adjustable)
-60 °C ... 250 °C (freely adjustable)
-60 °C ... 150 °C (freely adjustable)
-60 °C ... 150 °C (freely adjustable)
0 °C ... 1820 °C (freely adjustable)
0 °C ... 2320 °C (freely adjustable)
0 °C ... 2495 °C (freely adjustable)
-270 °C ... 1000 °C (freely adjustable)
-210 °C ... 1200 °C (freely adjustable)
-270 °C ... 1372 °C (freely adjustable)
-200 °C ... 900 °C (freely adjustable)
-270 °C ... 1300 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-270 °C ... 400 °C (freely adjustable)
-200 °C ... 600 °C (freely adjustable) | Linear resistance measuring range | Resistance-type sensor from 10 Ω to 400 Ω and from 10 Ω to 2000 Ω; minimum measurement range 10 Ω/100 Ω |
Linear mV signal range | -10 mV ... 75 mV (min. measurement range 5 mV) | Connection technology | 2-, 3-, 4-conductor |
Configurable/programmable | no | Number of outputs | 1 |
Configurable/programmable | Yes | Current output signal | 4 mA ... 20 mA
20 mA ... 4 mA |
Output current with wire break | ≤ 3.6 mA or ≥ 21 mA (adjustable) | Output current with short-circuit | ≤ 3.6 mA or ≥ 21 mA (adjustable, not for thermocouples) |
Output current range with overrange/underrange | ≤ 20.5 mA / ≥ 3.8 mA (linear increase/decrease) | Output current limit | ≤ 25 mA |
Load/output load current output | max (V | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 1.75 mm² | Conductor cross section flexible | 0.2 mm² ... 1.75 mm² |
Conductor cross section AWG | 24 ... 15 | Color | green (RAL 6021) |
Housing material | Polycarbonate, PC | Degree of protection | IP00
IP66 (Installed in the connection head) |
Ambient temperature (operation) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | Class I, Div. 2, Groups A, B, C, D | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61326-1 (IEC 61326) and NAMUR NE 21 | Noise emission | EN 61326-1 (IEC 61326) and NAMUR NE 21 |
Assembly note | Connection head according to DIN 43729 form B | Mounting position | any |
Specifications may be subject to change without notice
