Product Model

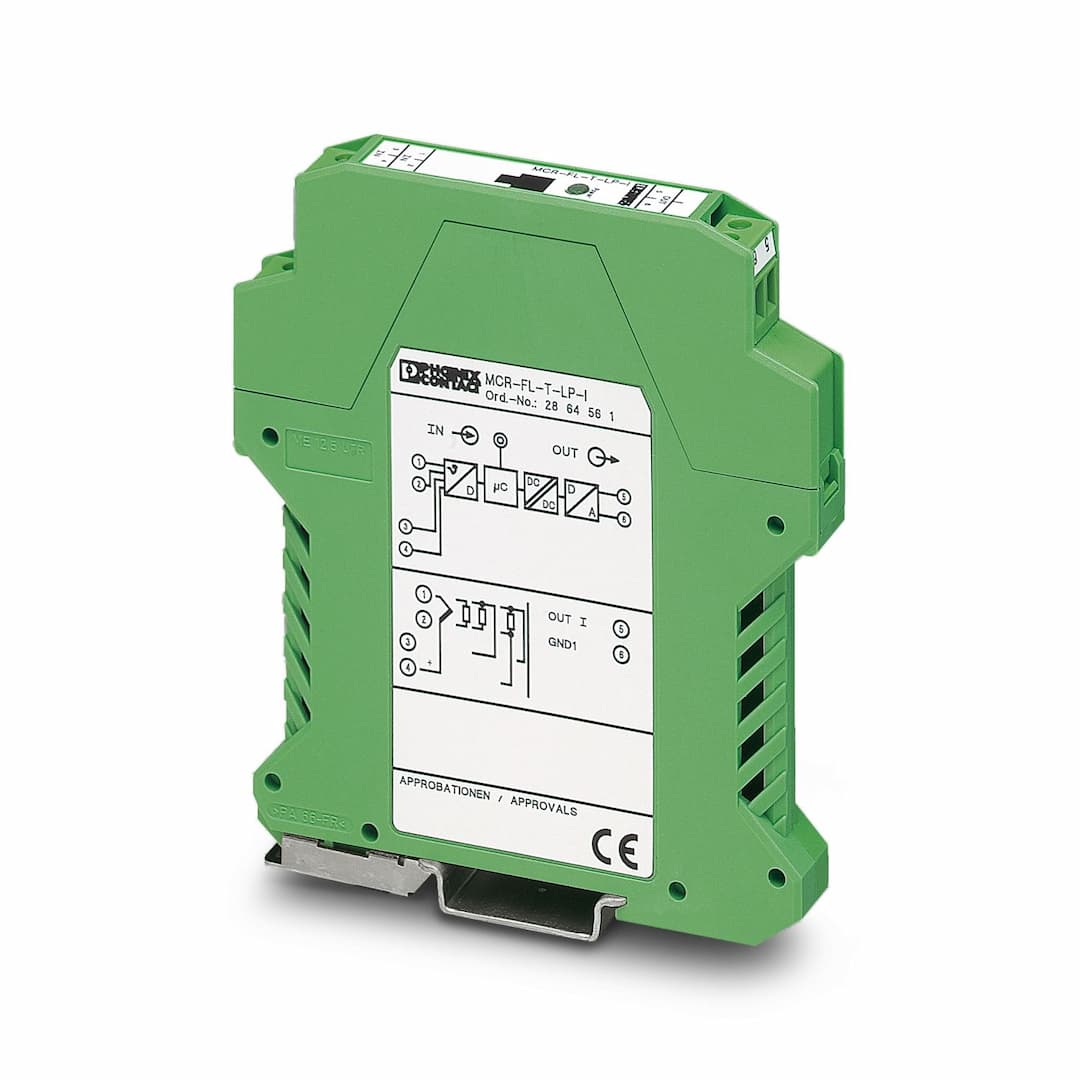

MCR-FL-T-LP-I
Selling Points
- 1Programmable via MCR/PI-CONF-WIN software for customizable settings.
- 2Loop-powered for efficient operation without an external power supply.
- 3Compatible with multiple sensors: RTDs (Pt, Ni), thermocouples (B, C, D, E, J, K, L, N, R, S, T, U), and voltage sensors.
- 4High accuracy: ±0.1 Ω for resistance-type sensors and ±20 µV for voltage sensors.
- 5Durable design: IP20 protection, operating ambient temperature range -40 °C to 85 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Temperature transmitter | Configuration | Using MCR-PI-CONF-WIN configuration software package |
Article revision | 02 | Switch-on delay | 4 s |
Maximum power dissipation for nominal condition | 122.5 mW | Test voltage input/output | 2 kV AC (50 Hz, 60 s) |
Step response (10-90%) | < 2 s | Transmission error voltage sensor | ±20 µV (-10 mV ... 100 mV) |
Transmission error thermocouples | typ. 0.5 K (K, J, T, E, L, U), 1.0 K (N, C, D), 2.0 K (S, B, R) | Transmission error resistance-type sensor | ±0.1 Ω (10 ... 400 Ω), ±1.5 Ω (10 ... 2000 Ω) |
Transmission error resistance thermometer | 0.2 K (Pt 100, Ni 100), 0.5 K (Pt 500, Ni 500), 0.3 K (Pt 1000, Ni 1000) | Designation | Loop-powered |
Supply voltage range | 12 V DC ... 35 V DC | Max. current consumption | < 3.5 mA |
Number of inputs | 1 | Input signal | Temperature |
Configurable/programmable | Yes, programmable | Sensor types (RTD) that can be used | Pt, Ni (100, 500, 1000); min. measurement range 10 K |
Sensor types that can be used (TC) | B, C, D, E, J, K, L, N, R, S, T, U; minimum measurement range 50 K/500 K | Sensor type: | -200 °C ... 850 °C (freely adjustable)
-200 °C ... 250 °C (freely adjustable)
-200 °C ... 250 °C (freely adjustable)
-60 °C ... 250 °C (freely adjustable)
-60 °C ... 150 °C (freely adjustable)
-60 °C ... 150 °C (freely adjustable)
0 °C ... 1820 °C (freely adjustable)
0 °C ... 2320 °C (freely adjustable)
0 °C ... 2495 °C (freely adjustable)
-270 °C ... 1000 °C (freely adjustable)
-210 °C ... 1200 °C (freely adjustable)
-270 °C ... 1372 °C (freely adjustable)
-200 °C ... 900 °C (freely adjustable)
-270 °C ... 1300 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-270 °C ... 400 °C (freely adjustable)
-200 °C ... 600 °C (freely adjustable) |
Linear resistance measuring range | Resistance-type sensor from 10 Ω to 400 Ω and from 10 Ω to 2000 Ω; minimum measurement range 10 Ω/100 Ω | Linear mV signal range | -10 mV ... 100 mV (min. measurement range 5 mV) |
Connection technology | 2-, 3-, 4-conductor | Configurable/programmable | no |
Number of outputs | 1 | Configurable/programmable | Yes |
Current output signal | 4 mA ... 20 mA
20 mA ... 4 mA | Output current with wire break | ≤ 3.6 mA or ≥ 21 mA (adjustable) |
Output current with short-circuit | ≤ 3.6 mA or ≥ 21 mA (adjustable, not for thermocouples) | Output current range with overrange/underrange | ≤ 20.5 mA / ≥ 3.8 mA (linear increase/decrease) |
Output current limit | ≤ 23 mA | Load/output load current output | max (V |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Width | 12.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color | green (RAL 6021) |
Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | Class I, Div. 2, Groups A, B, C, D | Noise immunity | EN 61326-1 (IEC 61326) and NAMUR NE 21 |
Noise emission | EN 61326-1 (IEC 61326) and NAMUR NE 21 | Mounting type | DIN rail mounting |
Mounting position | any |
