Product Model

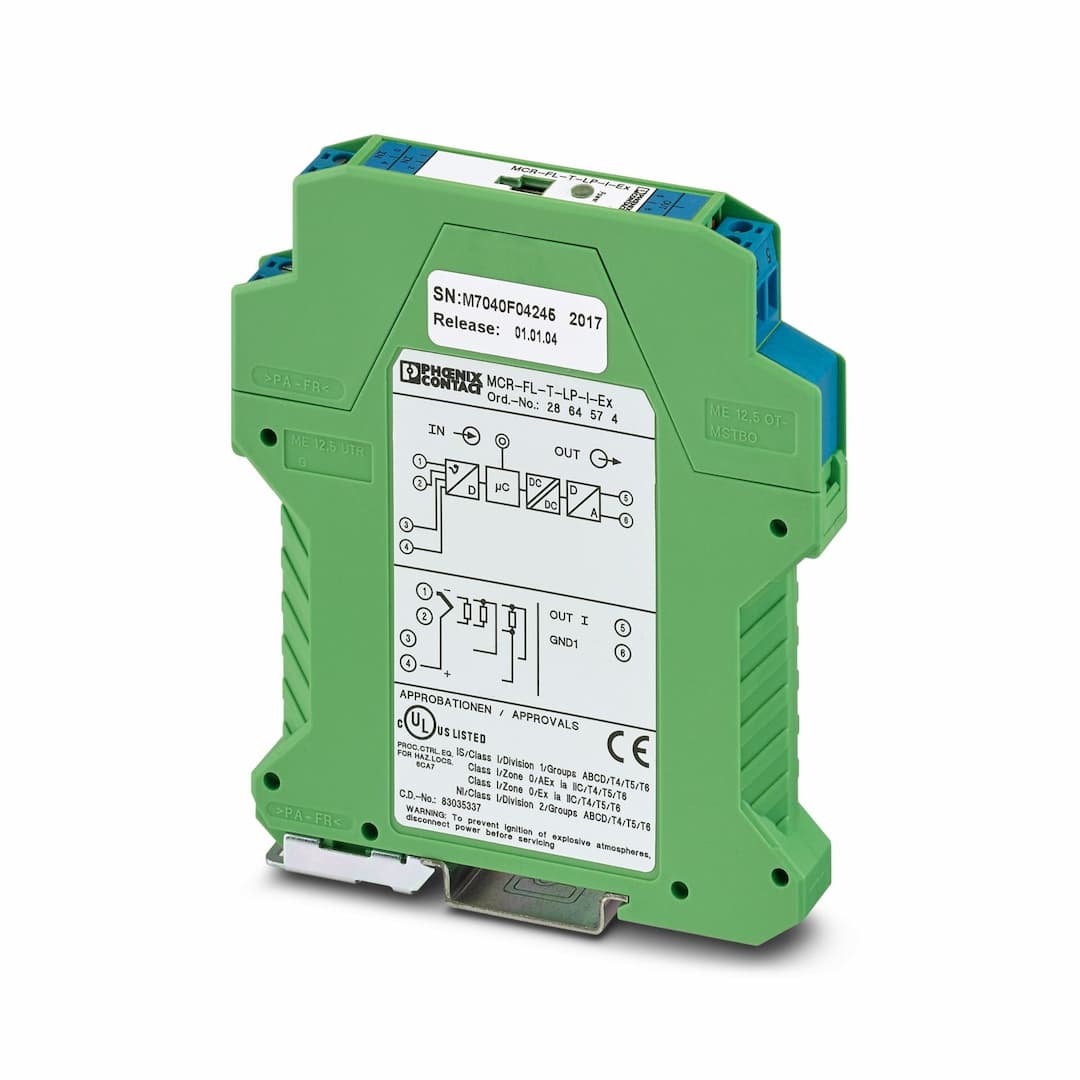

MCR-FL-T-LP-I-EX
Selling Points
- 1Programmable via MCR/PI-CONF-WIN software for customizable configurations.
- 2Loop-powered design for efficient operation with minimal power consumption.
- 3Compatible with resistance thermometers, thermocouples, and voltage sensors.
- 4Freely adjustable temperature range from -270 °C to 1372 °C.
- 5High accuracy with step response under 2 seconds and transmission error within ±20 µV.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Temperature transmitter | Application | Temperature |
Configuration | Using MCR-PI-CONF-WIN configuration software package | Article revision | 06 |
Switch-on delay | 4 s | Line monitoring | NE 43 |
Test voltage input/output | 2 kV AC (50 Hz, 60 s) | Step response (10-90%) | < 2 s |
Transmission error voltage sensor | ±20 µV (-10 mV ... 100 mV) | Transmission error thermocouples | typ. 0.5 K (K, J, T, E, L, U), 1.0 K (N, C, D), 2.0 K (S, B, R) |
Transmission error resistance-type sensor | ±0.1 Ω (10 ... 400 Ω), ±1.5 Ω (10 ... 2000 Ω) | Transmission error resistance thermometer | 0.2 K (Pt 100, Ni 100), 0.5 K (Pt 500, Ni 500), 0.3 K (Pt 1000, Ni 1000) |
Designation | Loop-powered | Supply voltage range | 12 V DC ... 30 V DC |
Max. current consumption | < 3.5 mA | Number of inputs | 1 |
Input signal | Temperature | Configurable/programmable | Yes, programmable |
Sensor types (RTD) that can be used | Pt, Ni (100, 500, 1000); min. measurement range 10 K | Sensor types that can be used (TC) | B, C, D, E, J, K, L, N, R, S, T, U; min. measurement range 50 K/500 K |
Sensor type: | -200 °C ... 850 °C (freely adjustable)
-200 °C ... 250 °C (freely adjustable)
-200 °C ... 250 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 150 °C (freely adjustable)
-60 °C ... 150 °C (freely adjustable)
0 °C ... 1820 °C (freely adjustable)
0 °C ... 2320 °C (freely adjustable)
0 °C ... 2495 °C (freely adjustable)
-270 °C ... 1000 °C (freely adjustable)
-210 °C ... 1200 °C (freely adjustable)
-270 °C ... 1372 °C (freely adjustable)
-200 °C ... 900 °C (freely adjustable)
-270 °C ... 1300 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-270 °C ... 400 °C (freely adjustable)
-200 °C ... 600 °C (freely adjustable) | Connection technology | 2-, 3-, 4-conductor |
Linear resistance measuring range | 10 Ω ... 400 Ω (min. measurement range 10 Ω)
10 Ω ... 2000 Ω (min. measurement range 100 Ω) | Linear mV signal range | -10 mV ... 100 mV (min. measurement range 5 mV) |
Configurable/programmable | no | Output description | Current output |
Number of outputs | 1 | Configurable/programmable | Yes |
Current output signal | 4 mA ... 20 mA
20 mA ... 4 mA | Max. current output signal | ≤ 23 mA |
Output current with short-circuit | ≤ 3.6 mA or ≥ 21 mA (adjustable, not for thermocouples) | Output current with wire break | ≤ 3.6 mA or ≥ 21 mA (adjustable) |
Output current range with overrange/underrange | 3.8 mA ... 20.5 mA | Load/output load current output | ≤ 520 Ω (At U |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Max. voltage U | 30 V |
Max. current I | 100 mA | Max. power P | 750 mW |
Max. output voltage U | 4.4 V DC | Max. output current I | 9.6 mA |
Max. output power P | 10.6 mW | Max. ambient temperature | T4 = 85 °C, T5 = 65 °C, T6 = 50 °C |
Safety-related maximum voltage U | 250 V | IIA: Max. external inductivity L | 100 mH / 12 µF |
IIB: Max. external inductivity L | 100 mH / 12 µF | IIC: Max. external inductivity L | 100 mH / 2.4 µF |
Width | 12.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 | Housing material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 55 °C |
Certificate | CE-compliant | Identification | II 2(1) G Ex ia IIC T4...T6 |
Identification | cULus | Standards/regulations | NAMUR recommendation NE 21 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
