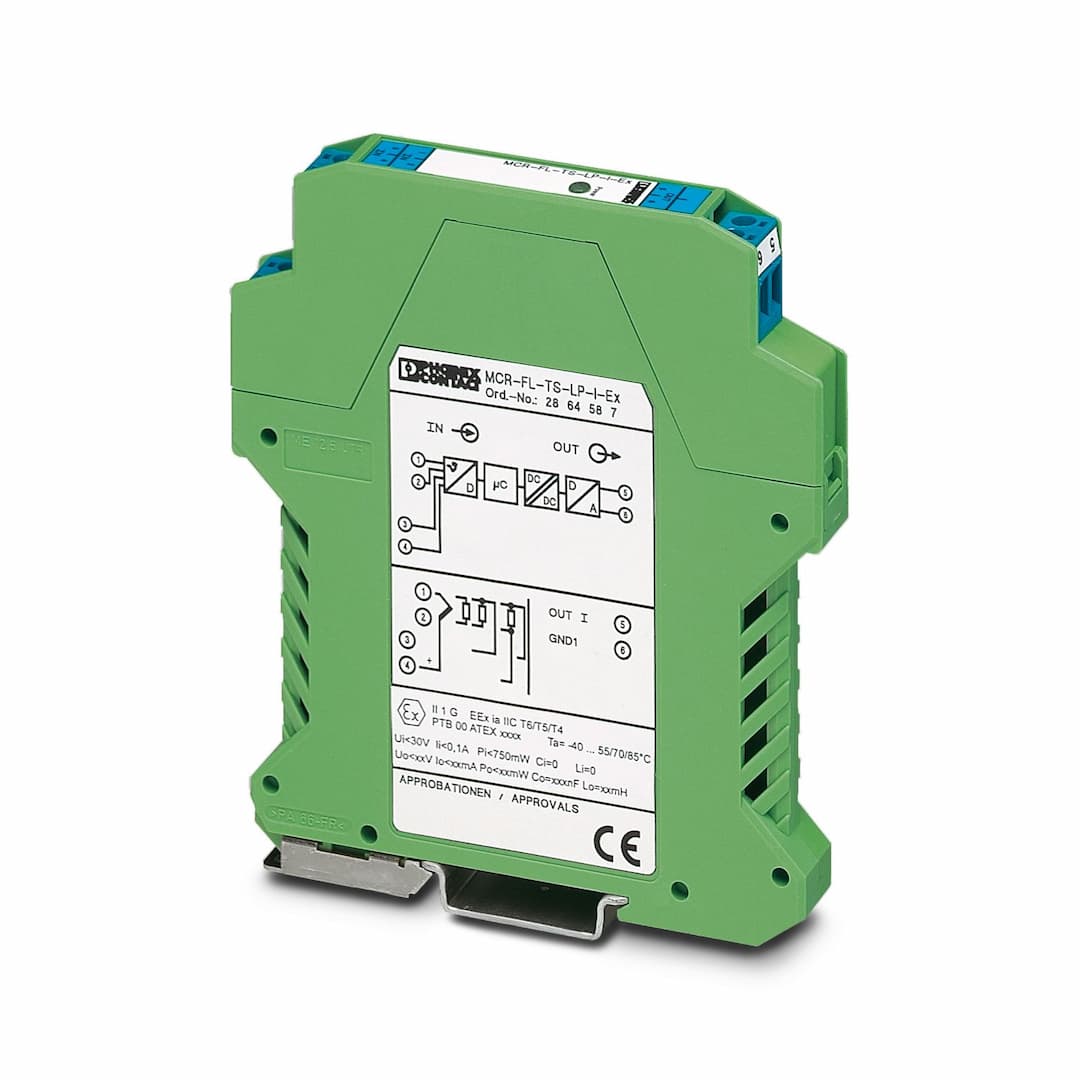

Product Model
MCR-FL-TS-LP-EX/-+200
Selling Points
- 1Precision Temperature Measurement: Accurate readings from -40°C to 200°C.
- 22-Way Electrical Isolation: Ensures safe and reliable operation in hazardous environments.
- 3Loop-Powered Design: Simplifies installation with no external power supply required.
- 4HART-Compatible: Configurable via software for easy setup and monitoring.
- 5Robust Construction: Built with polyamide PA non-reinforced housing for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Temperature transmitter | Application | Temperature |
Article revision | 07 | Switch-on delay | 4 s |
Line monitoring | NE 43 | Test voltage input/output | 2 kV AC (50 Hz, 60 s) |
Step response (10-90%) | < 2 s | Transmission error voltage sensor | ±20 µV (-10 mV ... 100 mV) |
Transmission error thermocouples | typ. 0.5 K (K, J, T, E, L, U), 1.0 K (N, C, D), 2.0 K (S, B, R) | Transmission error resistance-type sensor | ±0.1 Ω (10 ... 400 Ω), ±1.5 Ω (10 ... 2000 Ω) |
Transmission error resistance thermometer | 0.2 K (Pt 100, Ni 100), 0.5 K (Pt 500, Ni 500), 0.3 K (Pt 1000, Ni 1000) | Max. current consumption | < 3.5 mA |
Input signal | Temperature | Configurable/programmable | no, preconfigured |
Sensor types (RTD) that can be used | Pt, Ni (100, 500, 1000); min. measurement range 10 K | Sensor types that can be used (TC) | B, C, D, E, J, K, L, N, R, S, T, U; min. measurement range 50 K/500 K |
Temperature measuring range | -200 °C ... 200 °C | Linear resistance measuring range | 10 Ω ... 400 Ω (min. measurement range 10 Ω) |
Linear mV signal range | -10 mV ... 100 mV (min. measurement range 5 mV) | Configurable/programmable | no |
Output description | Current output | Configurable/programmable | no |
Current output signal | 4 mA ... 20 mA
20 mA ... 4 mA | Max. current output signal | ≤ 23 mA |
Output current with short-circuit | ≤ 3.6 mA or ≥ 21 mA (adjustable, not for thermocouples) | Output current with wire break | ≤ 3.6 mA or ≥ 21 mA (adjustable) |
Output current range with overrange/underrange | 3.8 mA ... 20.5 mA | Load/output load current output | ≤ 520 Ω (At U |
Connection method | Pluggable screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Width | 12.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 |
Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 55 °C | Certificate | CE-compliant |
Standards/regulations | NAMUR recommendation NE 21 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
