Product Model

MCR-PS-120AC/24DC/100

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

19059

In Stock
Last updated: 2025/4/26
View Specifications

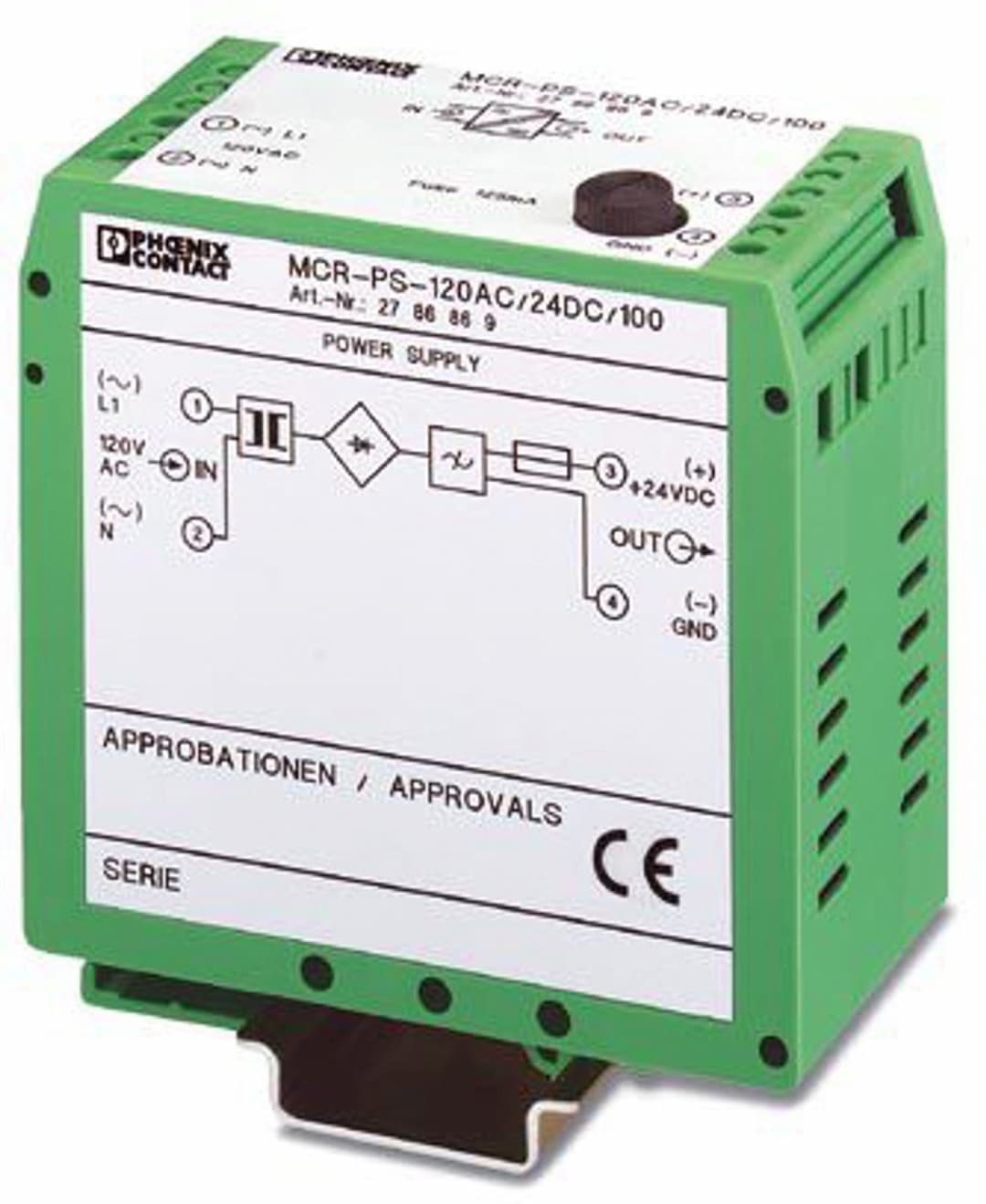

Phoenix Contact MCR-PS-120AC/24DC/100

Selling Points

  • 1The MCR-PS-120AC/24DC/100 is designed to be space-efficient, making it perfect for applications where size is a concern.
  • 2With a current consumption of approximately 70 mA, this power supply is energy-efficient and cost-effective.
  • 3Built with high-quality components, this power supply ensures stable operation and minimal downtime.
  • 4Compatible with AC frequencies from 50 Hz to 60 Hz, making it versatile for various applications.
  • 5Designed for straightforward installation, the MCR-PS-120AC/24DC/100 simplifies setup and integration into your system.
Product Details
MCR-PS-120AC/24DC/100
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Input voltage
120 V AC ±10 %
AC frequency range
50 Hz ... 60 Hz
Current consumption
approx. 70 mA
Nominal power consumption
approx. 8.4 VA
Nominal output voltage
24 V DC ±4 %
Nominal output current (I
100 mA
Residual ripple
≤ 50 mV
Output fuse
0.125 A (normal blow)
Connection method
Screw connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
8 mm
Screw thread
M3
Connection method
Screw connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
8 mm
Screw thread
M3
Test voltage input/output
4 kV AC
Product type
Power supply
Operating mode
100% operating factor
Width
40 mm
Height
85.5 mm
Depth
79 mm
Horizontal pitch
2.2 Div.
Assembly note
Can be aligned with spacing = 10 mm
Mounting position
On horizontal DIN rail
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 60 °C
Standards/regulations
IEC 664 IEC 664 A DIN VDE 0110-1 DIN VDE 0551

Specifications may be subject to change without notice
