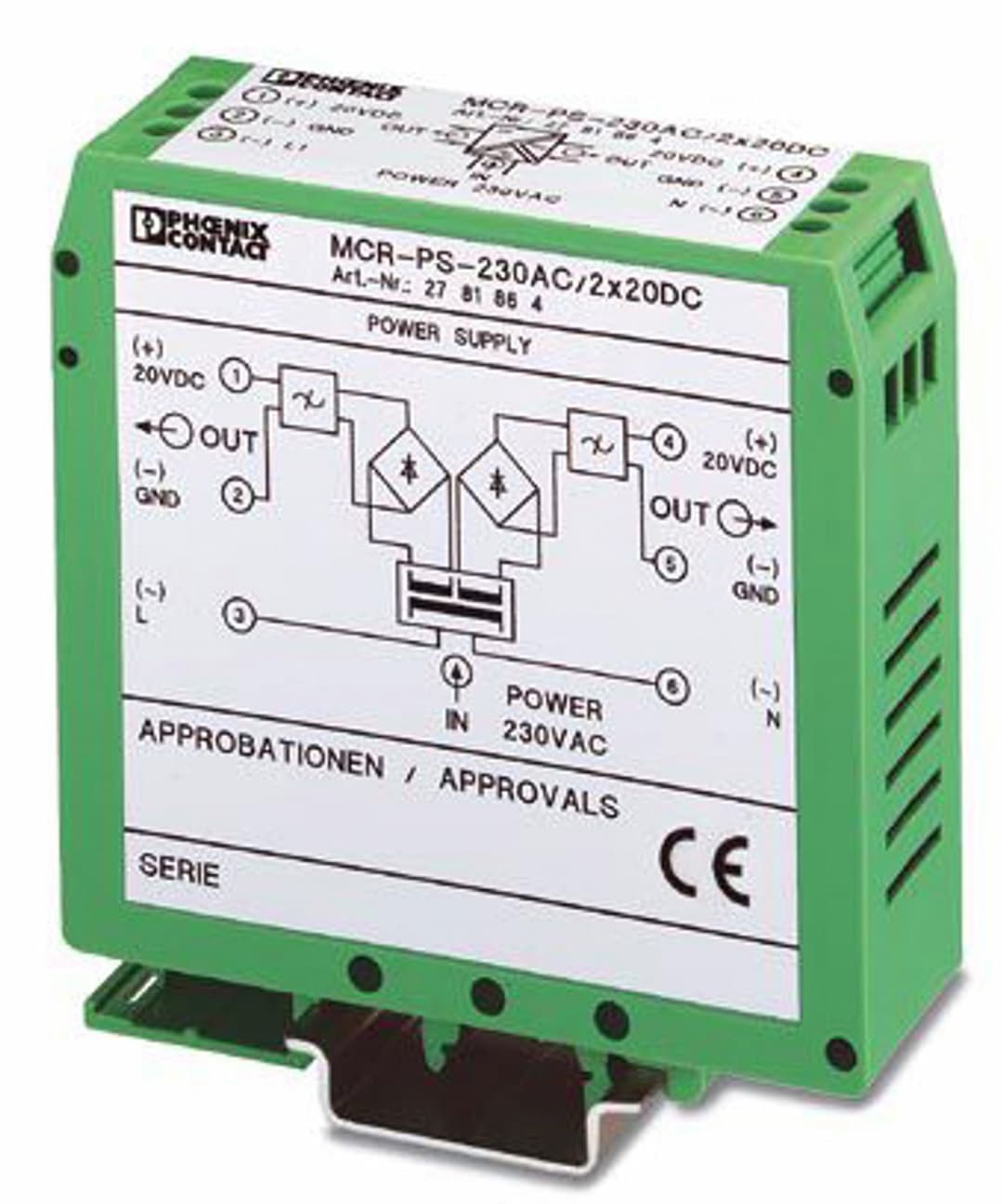

Product Model
MCR-PS-230AC/2X20DC
Selling Points
- 1Fixed Voltage Regulator: Stabilized output voltage ensures reliable performance.
- 2230 V AC Input: Compatible with standard household AC power.
- 32 x 20 V DC Output: Dual outputs for versatile use in electronic systems.
- 4High Current Capability: 2 x 25 mA output current for efficient power distribution.
- 5Durable Construction: Built to withstand various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 230 V AC +10 % -5 % | Voltage type of supply voltage | AC |
AC frequency range | 50 Hz ... 60 Hz | Current consumption | approx. 11 mA |
Number of outputs | 2 | Nominal output voltage | 20 V DC (per output) |
Nominal output current (I | 25 mA (per output) | Residual ripple | < 50 mV |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Screw thread | M3 | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 8 mm | Screw thread | M3 |
Number of phases | 1.00 | Test voltage output/output | 4 kV AC |
Test voltage input/output | 2.5 kV AC | Product type | Power supply |
Operating mode | 100% operating factor | Width | 25 mm |
Height | 85.5 mm | Depth | 79 mm |
Horizontal pitch | 1.4 Div. | Assembly note | any |
Mounting position | any | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 60 °C | Standards/regulations | IEC 664
IEC 664 A
DIN VDE 0110-1
DIN VDE 0551 |
Specifications may be subject to change without notice
