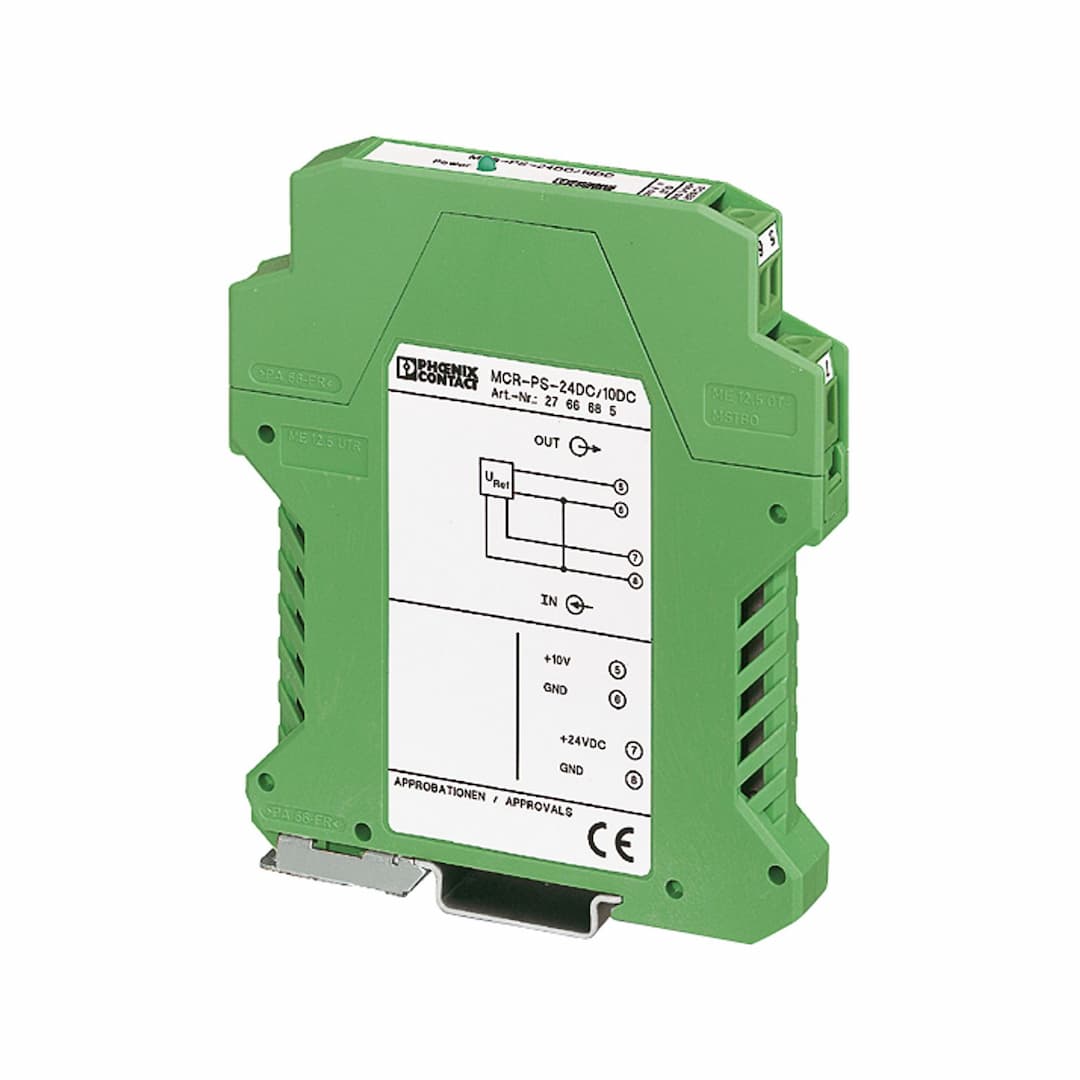

Product Model
MCR-PS- 24DC-10DC
Selling Points
- 1+10V DC with ±0.1% accuracy.
- 2Dimensions: 12.5 mm width, 99 mm height, and 114.5 mm depth.
- 3Short-circuit current of approximately 65 mA.
- 4Residual ripple ≤ 50 mV for stable output.
- 5Pluggable screw connections for solid or stranded conductors up to 2.5 mm².
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Constant voltage source | Maximum temperature coefficient | ≤ 0.015 %/K |
Nominal input voltage range | 18 V DC ... 30 V DC | Current consumption | approx. 10 mA (with no load on the output) |
Nominal output voltage | + 10 V DC ±0,1 % | Residual ripple | ≤ 50 mV |
Short-circuit current | approx. 65 mA | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 8 mm | Screw thread | M3 |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Width | 12.5 mm | Height | 99 mm |
Depth | 114.5 mm | Horizontal pitch | 0.7 Div. |
Housing material | Polyamide PA non-reinforced | Type of housing | Polyamide PA non-reinforced, color: green |
Ambient temperature (operation) | -20 °C ... 65 °C | Conformance | CE-compliant |
Mounting position | any |
Specifications may be subject to change without notice
