Product Model

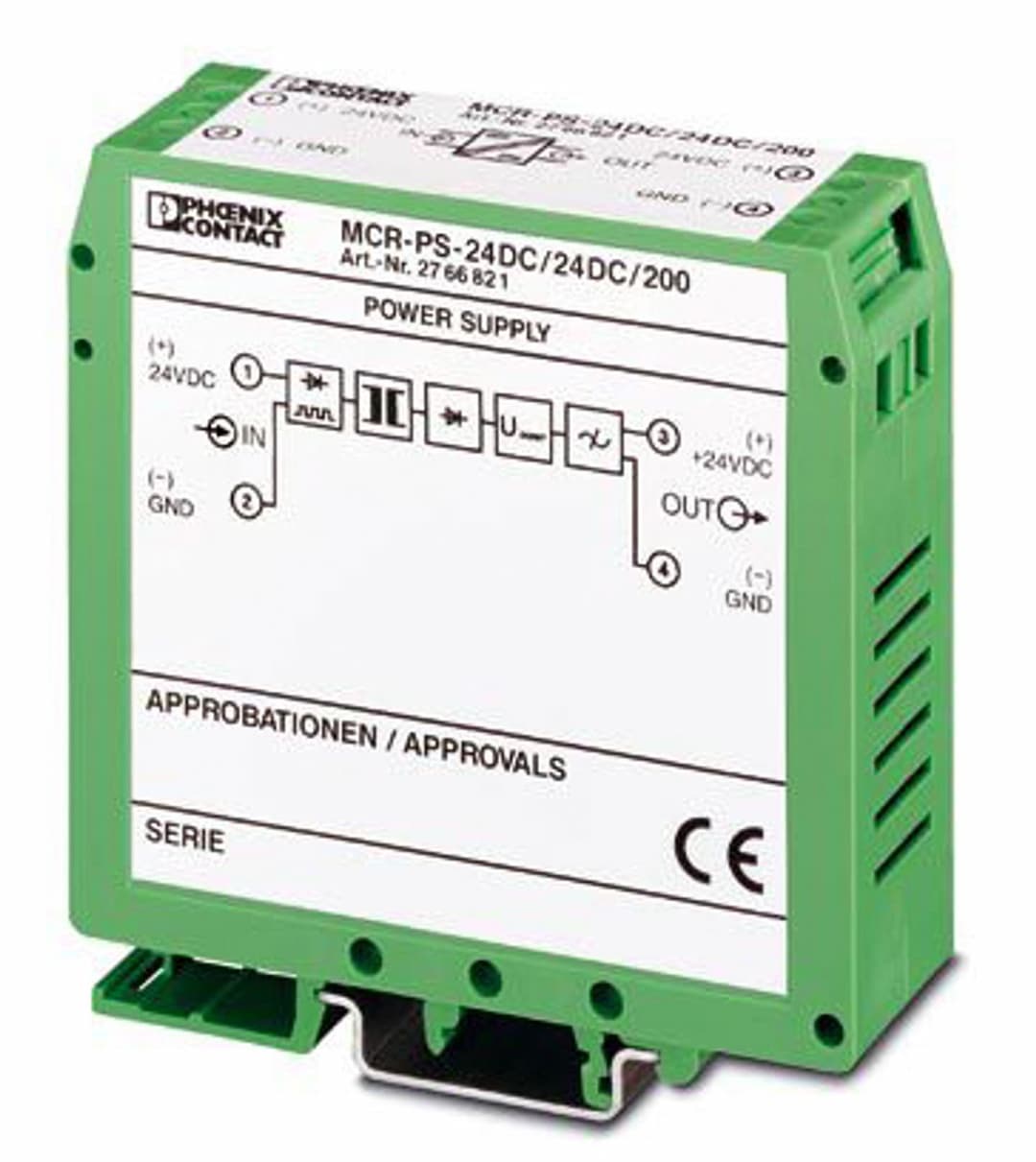

MCR-PS- 24DC/24DC/200
Selling Points
- 1Efficient Power Conversion: Converts 20-30V DC input to 24V DC output with high efficiency.
- 2High Reliability: Equipped with electrical isolation and reverse polarity protection for safe operation.
- 3Compact Design: Measures 25 mm wide, 85.5 mm high, and 79 mm deep, making it ideal for space-constrained applications.
- 4Wide Operating Range: Operates between 0°C and 55°C ambient temperature with IP20 protection.
- 5Versatile Connectivity: Supports solid and flexible conductor cross sections from 0.2 mm² to 2.5 mm², ensuring compatibility with various wiring configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage range | 20 V DC ... 30 V DC | Input voltage range DC | 20 V DC ... 30 V |
Voltage type of supply voltage | DC | Current consumption | approx. 380 mA |
Nominal power consumption | approx. 7.6 W | Protective circuit | Reverse polarity protection |
Input fuse | 0.5 A (normal blow, internal 5x20) | Nominal output voltage | 24 V DC 5 % |
Nominal output current (I | 200 mA | Residual ripple | ≤ 250 mV |
Protective circuit | Current limitation at approx. 250 mA | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 8 mm | Screw thread | M3 |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Screw thread | M3 | Test voltage input/output | 500 V AC |
Product type | DC/DC converters | Operating mode | 100% operating factor |
Overvoltage category | II | Degree of pollution | 2 |
Width | 25 mm | Height | 85.5 mm |
Depth | 79 mm | Horizontal pitch | 1.4 Div. |
Assembly note | Can be aligned with spacing = 10 mm | Mounting position | vertical |
With protective coating | no | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 55 °C | Standards/regulations | IEC 664
IEC 664 A
DIN VDE 0110-1 |
Specifications may be subject to change without notice
