Product Model

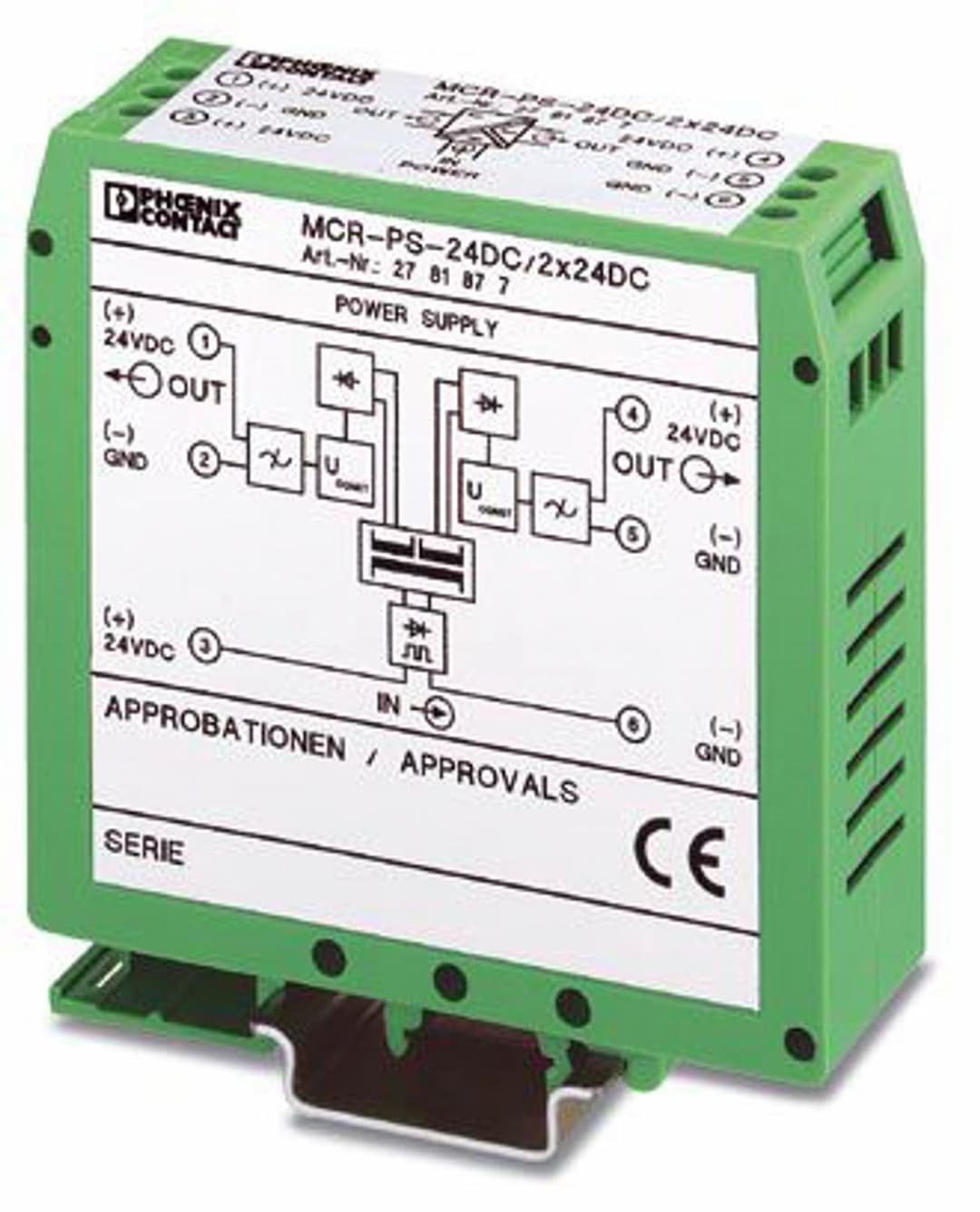

MCR-PS- 24DC/2X24DC
Selling Points
- 1Ensures electrical safety by isolating the input and output.
- 2Operates with input voltage 21.6V DC to 26.4V DC, providing flexibility.
- 3Delivers 2x30mA per output, meeting high current demands.
- 4Maintains a residual ripple of ≤50mVPP for stable output voltage.
- 5Measures 25mm x 85.5mm x 79mm, making it space-efficient.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 24 V DC ±10 % | Nominal input voltage range | 24 V DC |
Input voltage range | 21.6 V DC ... 26.4 V DC | Wide-range input | yes |
Voltage type of supply voltage | DC | Current consumption | approx. 100 mA |
Nominal output voltage | 24 V DC (2x) | Nominal output current (I | 30 mA (2x) |
Residual ripple | ≤ 50 mV | Short-circuit-proof | yes |
Output power | 1.5 W | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 8 mm | Screw thread | M3 |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Number of phases | 1.00 | Test voltage output/output | 1.5 kV AC |
Test voltage input/output | 2.5 kV AC | Product type | DC/DC converters |
Operating mode | 100% operating factor | Width | 25 mm |
Height | 85.5 mm | Depth | 79 mm |
Assembly note | any | Mounting position | any |
With protective coating | no | Housing material | Plastic |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 55 °C |
Standards/regulations | IEC 664
IEC 664 A
DIN VDE 0110-1 |
Specifications may be subject to change without notice
