Product Model

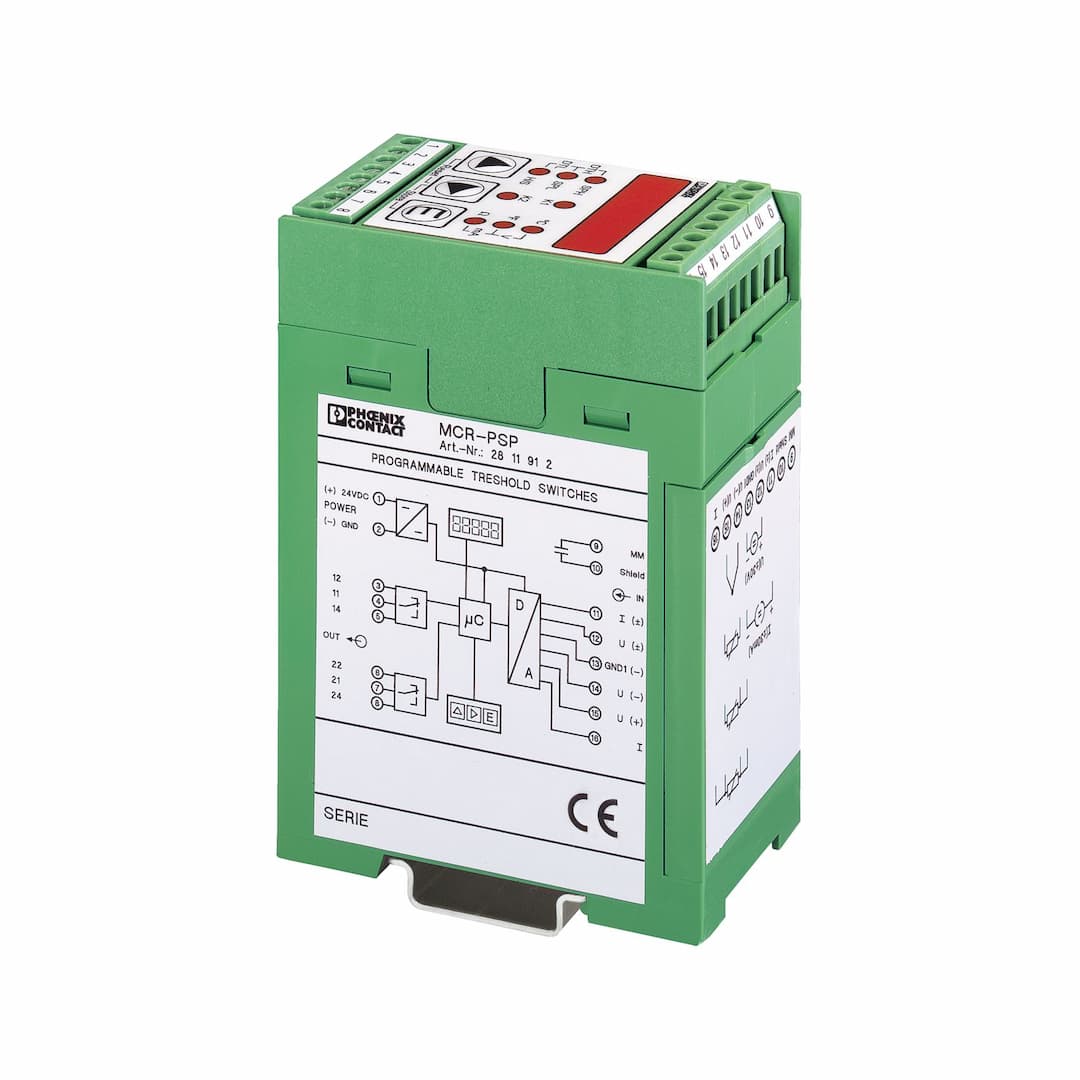

MCR-PSP
Selling Points
- 1Four adjustable thresholds for precise process control.
- 2Ensures safe and reliable operation with or without galvanic isolation of input signals.
- 3Supports various thermocouple sensors, resistance thermometers, and linear resistors.
- 4Configure using MCR-PI-CONF-WIN software or membrane keypad for adaptability.
- 5Continuous measured value display on the 5-position 7-segment LED display.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Limit value switch |
No. of channels | 1 | Display resolution | 0,1 °C / 0,01 V / 0,01 mA / 0,1 Ω |
Measuring rate | 2 Hz | Protective circuit | Transient protection, polarity protection |
Maximum temperature coefficient | ≤ 0.01 %/K | Maximum transmission error | 0.1 % (of final value) |
Supply voltage range | 20 V DC ... 30 V DC | Max. current consumption | < 60 mA |
Configurable/programmable | Yes, programmable | Voltage input signal | -30 V ... 30 V |
Current input signal | -30 mA ... 30 mA | Available input sources | Resistance temperature detectors in 2-, 3- or 4-conductor technology (in accordance with DIN 43760/DIN IEC 751 or SAMA RC 21-4-1966), e.g., PT sensors, Ni sensors, etc.
Thermocouple sensors (in acc. with DIN IEC 584-1/DIN 43710): B, E, J, K, L, N, R, S, T, U
Resistance: 0 kΩ ... 8 kΩ (2-conductor circuit only)
Current: - 30 mA...+ 30 mA
Voltage: - 30 V...+ 30 V |
Input resistance of voltage input | 200 kΩ | Input resistance current input | 50 Ω |
Discontinuous control resolution | 0,1 °C / 0,01 V / 0,01 mA / 0,1 Ω | Sensor type: | -200 °C ... 850 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-50 °C ... 160 °C (freely adjustable)
-70 °C ... 500 °C (freely adjustable)
-200 °C ... 600 °C (freely adjustable)
-200 °C ... 400 °C (freely adjustable)
-200 °C ... 900 °C (freely adjustable)
-210 °C ... 1200 °C (freely adjustable)
-226 °C ... 1000 °C (freely adjustable)
-200 °C ... 1372 °C (freely adjustable)
-200 °C ... 1300 °C (freely adjustable)
-50 °C ... 1768 °C (freely adjustable)
-50 °C ... 1768 °C (freely adjustable)
500 °C ... 1820 °C (freely adjustable) |
Linear resistance measuring range | 0 Ω ... 8000 Ω | Contact switching type | 2 x changeover contacts / 2 switching points each, de-energized/energized (switchable) |
Contact material | AgNi 0,15 + HTV (hard gold-plated) | Maximum switching voltage | 250 V AC |
Max. switching current | 2 A AC | Mechanical service life | 2x 10 |
Setting range of the response delay | 0 s ... 2 s (adjustable) | Status display | LED display |
Connection method | Pluggable screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Status display | 5-position 7-segment display and LEDs | Width | 45 mm |
Height | 75 mm | Depth | 110 mm |
Color | green (RAL 6021) | Housing material | ABS |
Ambient temperature (operation) | -20 °C ... 65 °C | Certificate | CE-compliant |
Identification | cULus | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
