Product Model

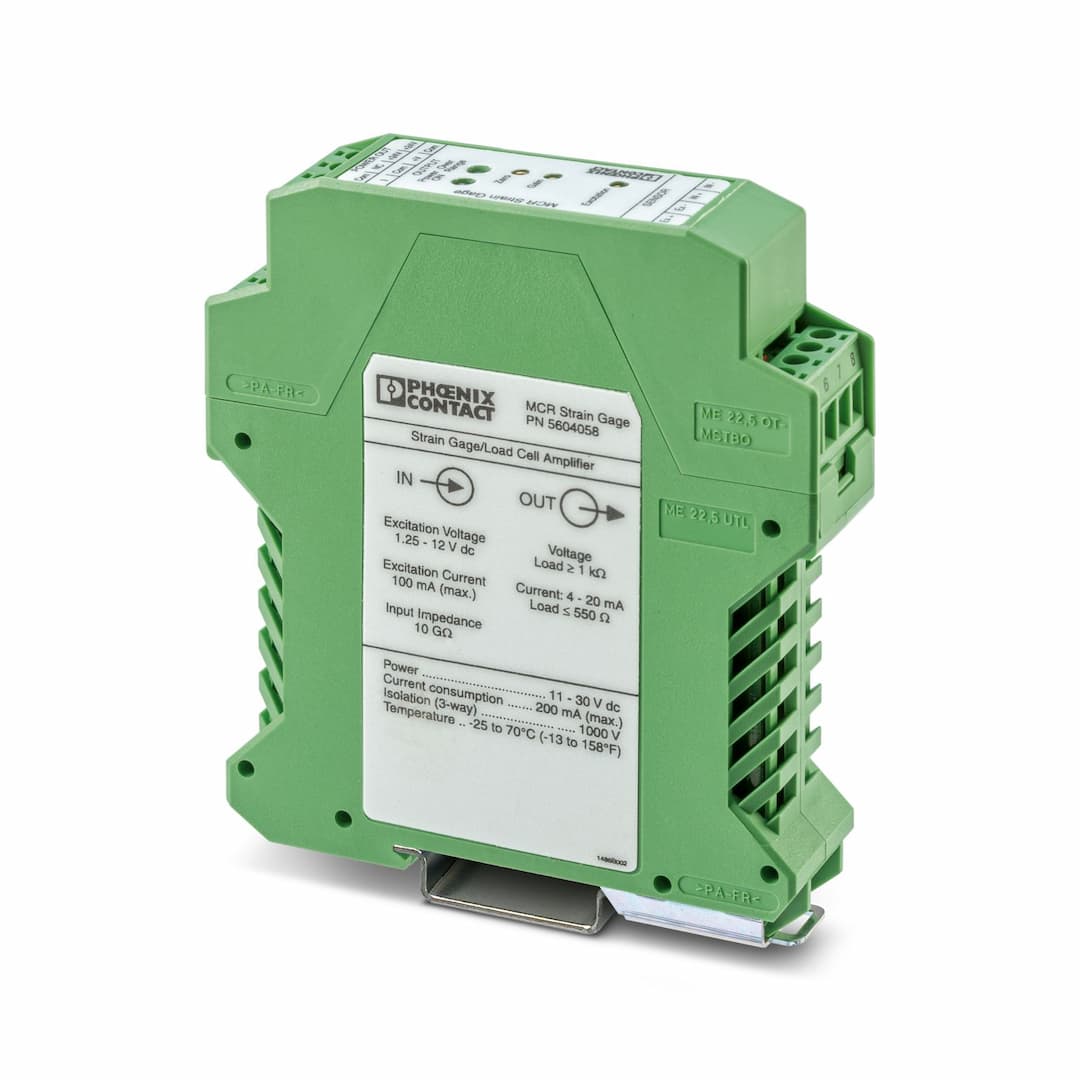

MCR-SGA-LN-DC
Selling Points
- 1Universal Compatibility: Suitable for various strain gages and load cells.
- 2Adjustable Excitation: 1.25 to 12-volt adjustable excitation for precise measurement control.
- 3Robust Output Options: Provides 0-5 V, 0-10 V, and 4-20 mA output signals.
- 4Reliable Protection: Equipped with short-circuit and thermal protection for safe operation.
- 5Compact Design: Compact size with a COMBICON plug-in screw terminal block for easy connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Signal conditioner | Supply voltage range | 11 V DC ... 30 V DC |
Typical current consumption | 105 mA | Max. current consumption | 250 mA (350 W, full bridge at 10 V Excitation) |
Description of the input | Excitation voltage | Voltage input signal | 1.25 V ... 12 V |
Max. current input signal | 100 mA | Protective circuit | Short-circuit and thermal protection |
Input impedance | 10 GΩ | Bridge resistance | 120 Ω ... 20000 Ω |
Gain range | 1 V ... 10000 V (13 steps) | Input range of the sensor | 0.1 mV ... 1000 mV |
Voltage output signal | 0 V ... 5 V
0 V ... 10 V
-10 V ... 10 V
-5 V ... 5 V | Current output signal | 4 mA ... 20 mA |
Connection method | COMBICON plug-in screw terminal block | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Width | 22.5 mm | Height | 99 mm |
Depth | 111 mm | Ambient temperature (operation) | -25 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 3300 m (Above sea level) |
Permissible humidity (operation) | 10 % ... 90 % |
Specifications may be subject to change without notice
