Product Model

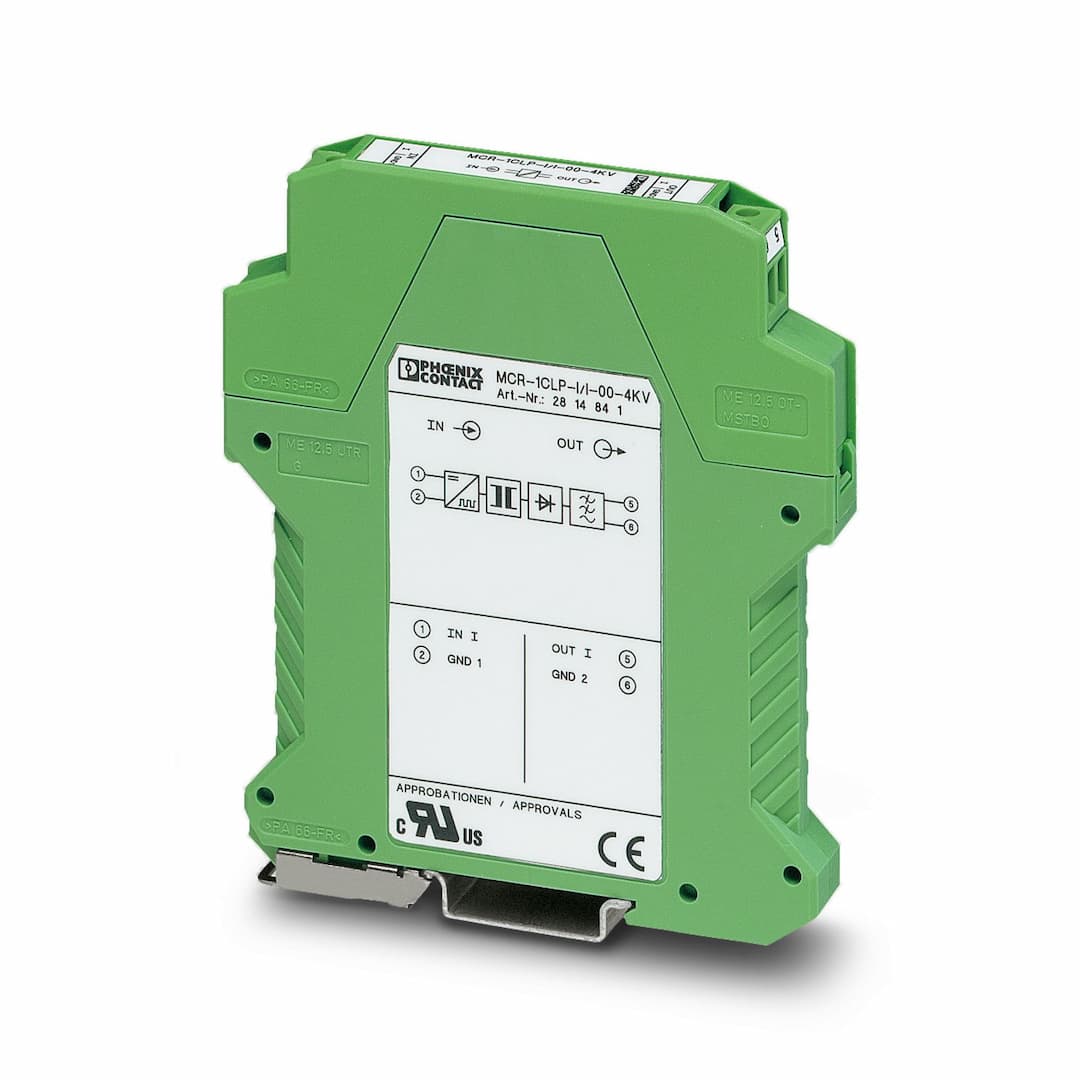

MCR-SL-1CLP-I-I-00-4KV
Selling Points
- 1Electrical isolation without auxiliary power: Operates using the input signal, eliminating the need for an additional power source.
- 2Safe and reliable operation: Ensures safe isolation between input and output signals, reducing the risk of electrical shock.
- 3Compact design: Dimensions: 12.5 mm width, 99 mm height, and 114.5 mm depth, making it ideal for space-constrained applications.
- 4High accuracy: Maximum transmission error ≤ 0.1%, ensuring precise signal transmission.
- 5Compliance with standards: Meets DIN EN 61010-1 and VDE 0100-410 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Passive separator | No. of channels | 1 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | < 75 Hz (at I = 20 mA and maximum load) |
Maximum power dissipation for nominal condition | 50 mW | Test voltage input/output | 4 kV AC (50 Hz, 60 s) |
Signal transmission behavior | In = Out | Step response (10-90%) | 5 ms (with 500 Ω load) |
Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) | Maximum transmission error | ≤ 0.1 % (of final value) |
Additional error, load-dependent | 0.02 % (of measured value / 100 Ω load) | Supply voltage range | no separate supply voltage necessary |
Description of the input | Current input | Number of inputs | 1 |
Configurable/programmable | no | Max. voltage input signal | 30 V (30 V overload) |
Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Max. current input signal | 50 mA (100 mA overload) |
Response current | < 50 µA | Input voltage limitation | 33 V 5 % (with Zener diode) |
Voltage dissipation | 2.5 V (I = 20 mA) | Number of outputs | 1 |
Configurable/programmable | no | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Max. current output signal | < 50 mA | Load/output load current output | ≤ 1375 Ω (at I = 20 mA output signal) |
Ripple | < 5 mV (rms) | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Width | 12.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Color | green (RAL 6021) | Housing material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Ambient temperature (operation) | -10 °C ... 70 °C |
Certificate | CE-compliant | Identification | cULus |
Standards/regulations | DIN EN 61010-1
VDE 0100-410
VDE 0106-101 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
