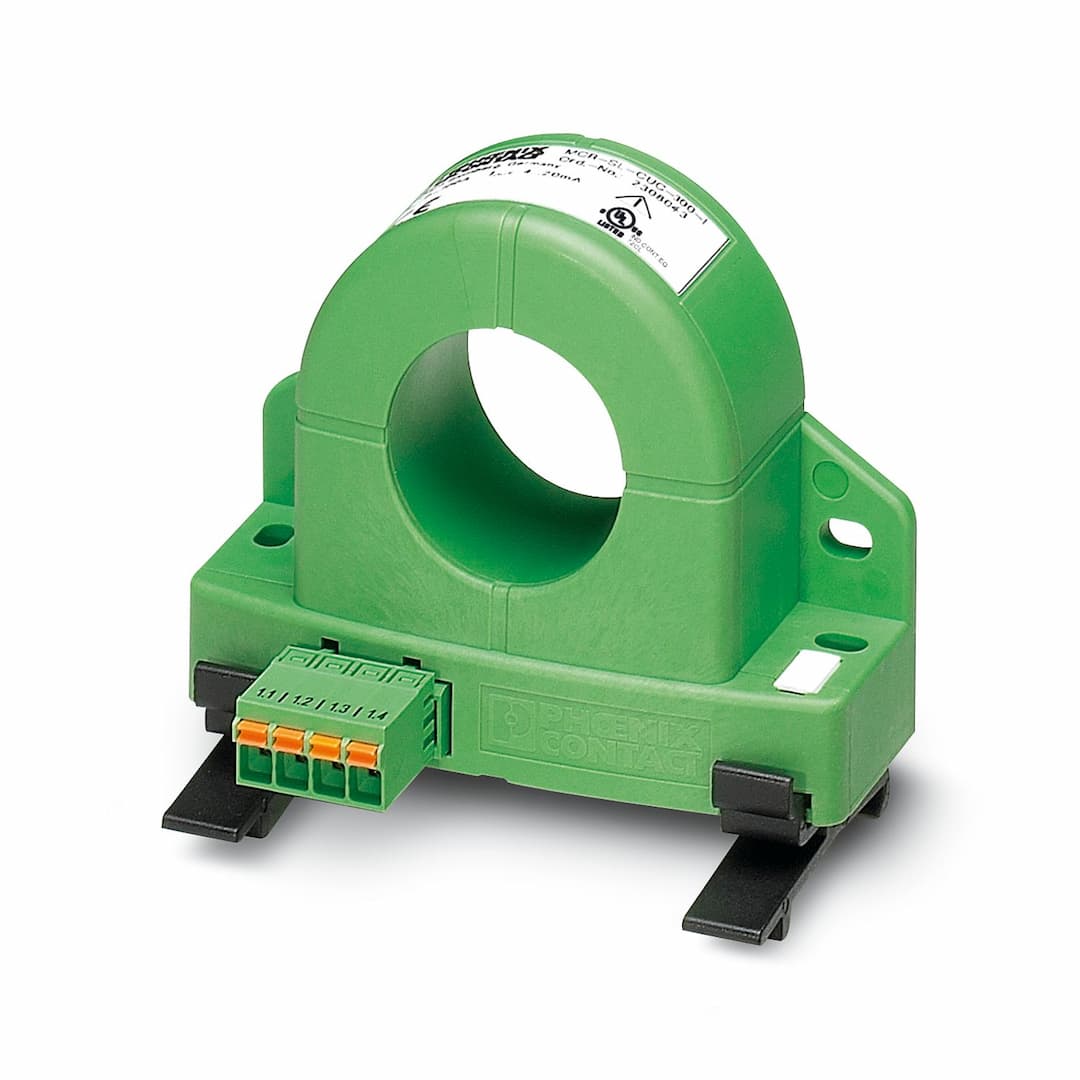

Product Model
MCR-SL-CUC-300-I
Selling Points
- 1Measures AC, DC, and distorted currents with high accuracy.
- 2Compact dimensions for distributed use on DIN rail or mounting plate.
- 3Simple connection technology via COMBICON plug-in connection terminal blocks.
- 43-way isolation ensures safe and reliable measurement.
- 5No shunt required for universal current measurement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Current transducer | Article revision | 04 |
Overvoltage category | III | Pollution degree | 2 |
Linearity error | — | Maximum power dissipation for nominal condition | 1 W |
Step response (10-90%) | 150 ms | Temperature coefficient, typical | 0.02 %/K (0 °C ... 60 °C)
0.04 %/K (-40 °C ... 65 °C) |
Maximum transmission error | — | Rated insulation voltage | 300 V AC |
Test voltage | 3.5 kV AC (50 Hz, 60 s) | Test voltage | 3.5 kV AC (50 Hz, 60 s) |
Accuracy class | 1 | Nominal supply voltage | 24 V DC |
Supply voltage range | 20 V DC ... 30 V DC | Max. current consumption | (30 + I |
Power consumption | 1.65 W | Number of inputs | 1 |
Input current range | 0 A AC/DC ... 300 A AC/DC | Overload capacity | 3.33 x I |
Frequency measuring range | 20 Hz ... 6000 Hz (0 Hz) | Curve type | AC, DC or distorted currents |
Rated frequency: Standard converter | 20 Hz ... 6000 Hz | Primary rated current I | 300 A |
Accuracy class | 1 | Current output signal | 4 mA ... 20 mA |
Max. current output signal | < 25 mA | Load/output load current output | < 300 Ω |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.25 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | Through connection |
Width | 90 mm | Height | 33.8 mm |
Depth | 85 mm | Diameter | 32 mm |
Color | green (RAL 6021) | Housing material | Frianyl B63 V0 GV30 |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Certificate | UKCA-compliant | Identification | UL/C-UL Listed UL 508 |
Noise immunity | EN 61000-6-2 | Noise emission | EN 61000-6-4 |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
