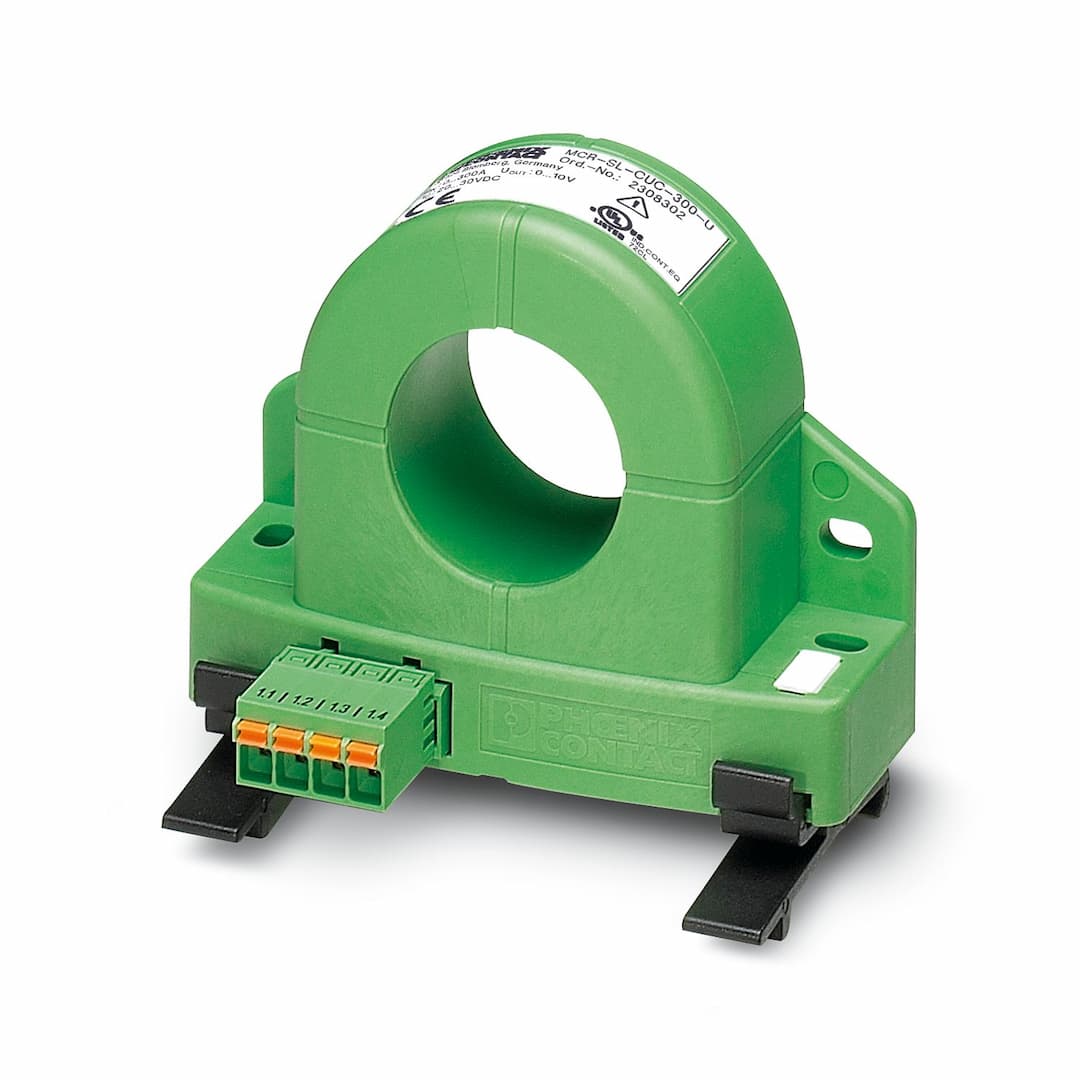

Product Model
MCR-SL-CUC-300-U
Selling Points
- 1Measures DC, AC, and distorted currents with high accuracy.
- 2Compact dimensions for distributed use on DIN rail or mounting plate.
- 3Simple connection technology via COMBICON plug-in connection terminal blocks.
- 43-way isolation ensures safe and reliable measurement.
- 5No shunt required for universal current measurement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Current transducer | Article revision | 04 |
Overvoltage category | III | Pollution degree | 2 |
Linearity error | — | Maximum power dissipation for nominal condition | 1 W |
Step response (10-90%) | 150 ms | Temperature coefficient, typical | 0.02 %/K (0 °C ... 60 °C)
0.04 %/K (-40 °C ... 65 °C) |
Maximum transmission error | — | Rated insulation voltage | 300 V AC |
Test voltage | 3.5 kV AC (50 Hz, 60 s) | Test voltage | 3.5 kV AC (50 Hz, 60 s) |
Nominal supply voltage | 24 V DC | Supply voltage range | 20 V DC ... 30 V DC |
Max. current consumption | 30 mA | Number of inputs | 1 |
Configurable/programmable | no | Input current range | 0 A AC/DC ... 300 A AC/DC |
Overload capacity | 3.33 x I | Frequency measuring range | 20 Hz ... 6000 Hz (0 Hz) |
Curve type | AC, DC or distorted currents | Voltage output signal | 0 V ... 10 V |
Load/output load voltage output | ≥ 10 kΩ | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.25 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Through connection | Width | 90 mm |
Height | 33.8 mm | Depth | 85 mm |
Diameter | 32 mm | Color | green (RAL 6021) |
Housing material | Frianyl B63 V0 GV30 | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | UL/C-UL Listed UL 508 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
