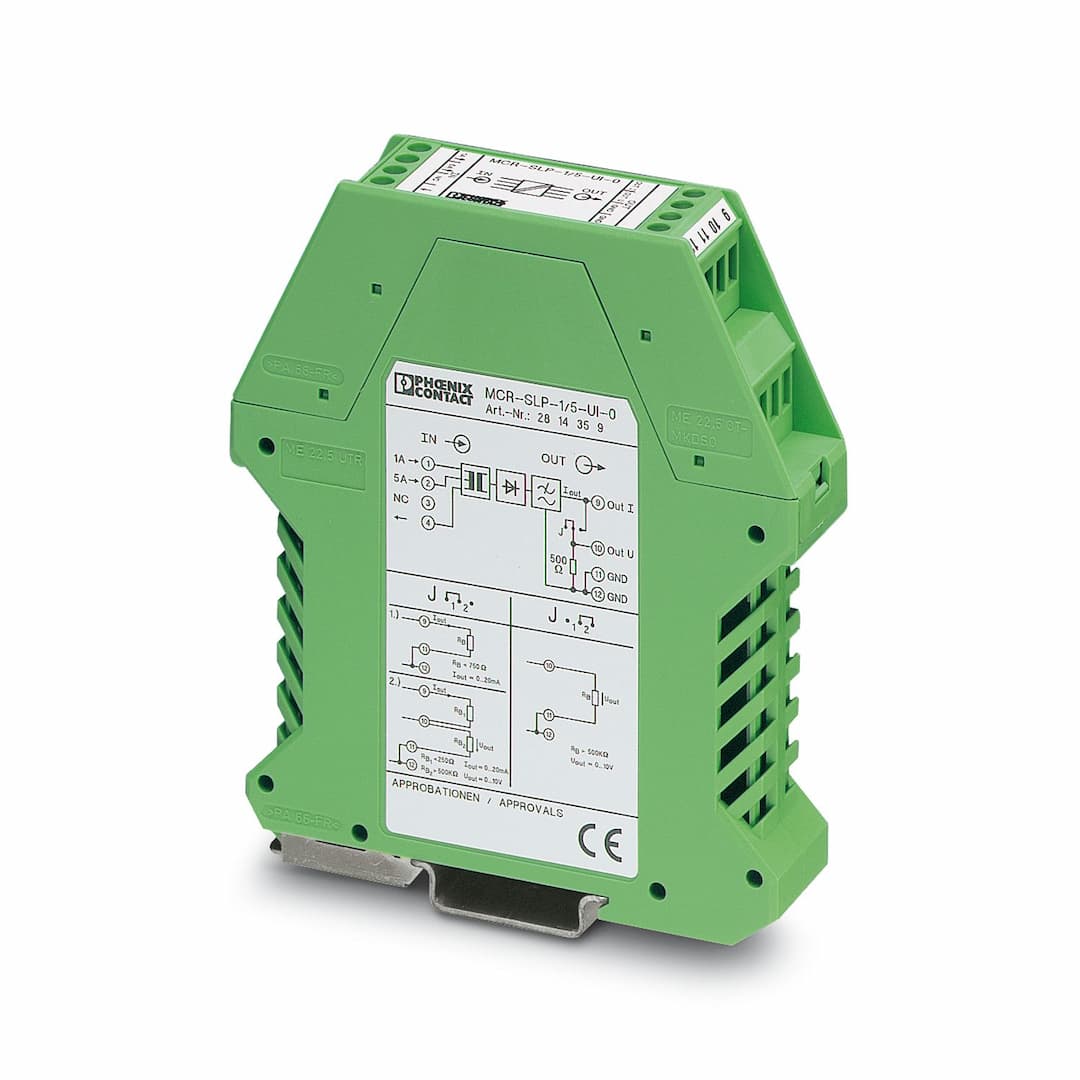

Product Model
MCR-SLP-1-5-UI-0
Selling Points
- 1Powered purely through the loop, eliminating the need for external power.
- 2Transmission error of less than 0.5%, ensuring precise measurements.
- 3Measures sinusoidal alternating currents from 0 to 5 A AC.
- 4Effortlessly integrates into your cabinet for easy installation.
- 5Withstood surge strength of up to 100 A (1 s) and ambient temperature range of -25°C to +60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Current transducer |
Article revision | 12 | Overvoltage category | III |
Pollution degree | 2 | Total error | ≤ 1.175 % (Temperature range) |
Test voltage | 3.5 kV | Measuring category | III |
Step response (10-90%) | < 200 ms | Maximum temperature coefficient | < 0.015 %/K |
Maximum transmission error | < 0.5 % (of final value) | Rated insulation voltage | 300 V AC (to earth) |
Configurable/programmable | no | Input current range | 0 A AC ... 1 A AC (Permitted continuous overload: 120%) |
Overload capacity | 2 x I | Surge strength | 50 A (1 s) |
Permissible output range | 1.2 x I | Nominal frequency f | 50 Hz |
Frequency measuring range | 45 Hz ... 60 Hz | Power dissipation | 1.6 VA (at I |
Curve type | Sine | Input current range | 0 A AC ... 5 A AC (Permitted continuous overload: 120%) |
Impulse form | Sine | Overload capacity | 2 x I |
Surge strength | 100 A (1 s) | Permissible output range | 1.2 x I |
Nominal frequency f | 50 Hz | Frequency measuring range | 45 Hz ... 60 Hz |
Power dissipation | 2.2 VA (I = 20 mA) | Voltage output signal | 0 V ... 10 V |
Max. voltage output signal | 20 V | Load/output load voltage output | > 100 kΩ |
Ripple | < 50 mV | Current output signal | 0 mA ... 20 mA |
Max. current output signal | 30 mA | Load/output load current output | < 750 Ω
< 250 Ω (when current and voltage outputs are used simultaneously) |
Ripple | < 50 mV | Residual ripple, in reference to the measured value | 0.5 % (pp of measured value) |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Width | 22.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color | green (RAL 6021) |
Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 80 °C (non-condensing) |
Altitude | < 2000 m | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | IEC 61010-2-030 |
Mounting type | DIN rail mounting | Mounting position | < 50 °C: any; > 50 °C: vertical (installation on horizontal DIN rail) |
Specifications may be subject to change without notice
