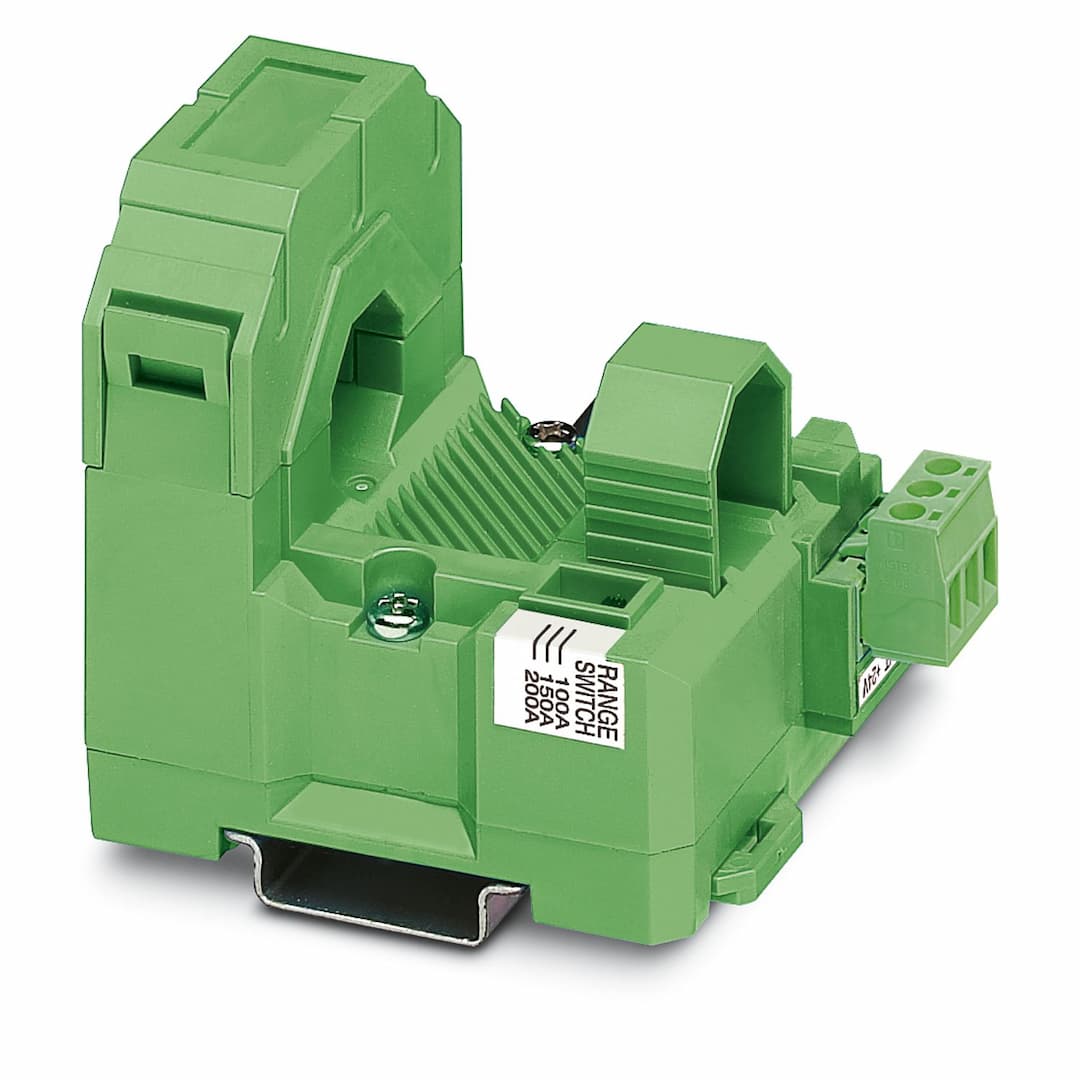

Product Model
MCR-SL-S-200-U
Selling Points
- 1Measures sinusoidal and non-sinusoidal alternating currents with high accuracy.
- 2Input current range: 0 to 200 A, output voltage range: 0 to 10 V.
- 3True r.m.s. value measurement up to 6000 Hz.
- 4Measuring range selection via slide switch for easy configuration.
- 5Loop-powered design for reduced wiring complexity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Current transducer | Article revision | 03 |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 1 W | Test voltage input/output | 4.13 kV AC (50 Hz, 60 s) |
Step response (10-90%) | < 340 ms | Maximum temperature coefficient | < 0.035 %/K |
Maximum transmission error | < 1 % (of final value) | Rated insulation voltage | 300 V AC (to earth) |
Nominal supply voltage | 24 V DC | Supply voltage range | 20 V DC ... 30 V DC |
Max. current consumption | < 30 mA | Configurable/programmable | Yes |
Current input signal | 0 A ... 200 A | Input current range | 0 A AC ... 100 A AC
0 A AC ... 150 A AC
0 A AC ... 200 A AC |
Setting range for min. input current | 0 A AC ... 100 A AC | Setting range for max. input current | 0 A AC ... 200 A AC |
Overload capacity | Depending on laid conductor | Surge strength | Depending on through connected conductor |
Frequency measuring range | 30 Hz ... 6000 Hz | Curve type | Sinusoidal and non-sinusoidal |
Operate threshold | 1 % (of final value) | Voltage output signal | 0 V ... 5 V
0 V ... 10 V |
Max. voltage output signal | (0 V ... 10 V) 14 V, (0 V ... 5 V) 7 V | Load/output load voltage output | ≥ 10 kΩ |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Tightening torque | 0.5 Nm ... 0.6 Nm (4,4 ... 5,31 lbf-in.) | Connection method | Through connection |
Width | 55 mm | Height | 85 mm |
Depth | 70.5 mm | Diameter | ≤ 18.5 mm |
Color | green (RAL 6021) | Housing material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | UL/C-UL Listed UL 508
Class I, Div. 2, Groups A, B, C, D T4A
Class I, Zone 2, Group IIC T4A
Or Non-Hazardous Locations only | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
