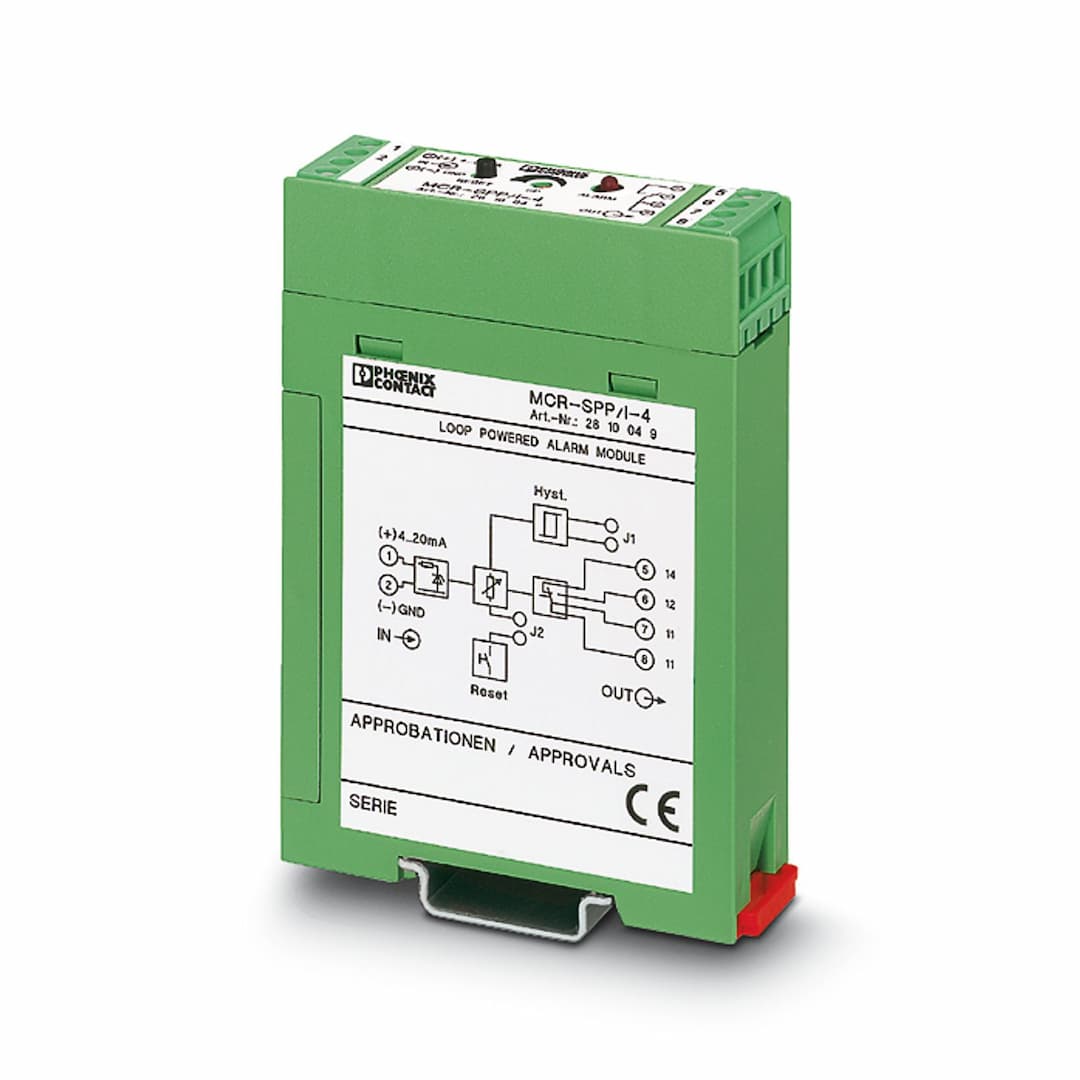

Product Model
MCR-SPP-I-4
Selling Points
- 1Hysteresis and Relay Functionality: The MCR-SPP-I-4 features hysteresis and a bistable relay for precise control and reliable switching.
- 24-20 mA Input Signal: Compatible with 4-20 mA input signals, making it versatile for various industrial measurement applications.
- 3High Switching Performance: Operates with a max. switching voltage of 150 V DC and 125 V AC, ensuring robust performance.
- 4Durable Construction: Built with rhodium contacts and an ABS housing, providing long mechanical service life and resistance to ambient temperatures.
- 5Comprehensive Specifications: Meets EMC guidelines and is CE-compliant, ensuring compatibility with a wide range of industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Limit value switch |
No. of channels | 1 | Electrical isolation between input and output | no |
Step response (10-90%) | 2 ms | Maximum temperature coefficient | ≤ 0.01 %/K |
Description of the input | Current input | Current input signal | 4 mA ... 20 mA |
Voltage dissipation | approx. 7 V (6.7 V ... 7.5 V) | Min setting range of the current threshold value | 4 mA ... 20 mA |
Setting range of the current hysteresis | 0.1 mA ... 1 mA | Internal current hysteresis | ± 60 µA (around the lower/upper switching point) |
Contact switching type | 1 changeover contact | Contact material | Rhodium |
Maximum switching voltage | 150 V DC
125 V AC | Max. switching current | 1 A |
Interrupting rating (ohmic load) max. | 30 W (with DC)
60 VA (with AC) | Mechanical service life | < 10 |
Status display | LED | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 14 | Width | 22.5 mm |
Height | 75 mm | Depth | 110 mm |
Color | green (RAL 6021) | Housing material | ABS |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -20 °C ... 65 °C | Certificate | CE-compliant |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
