Product Model

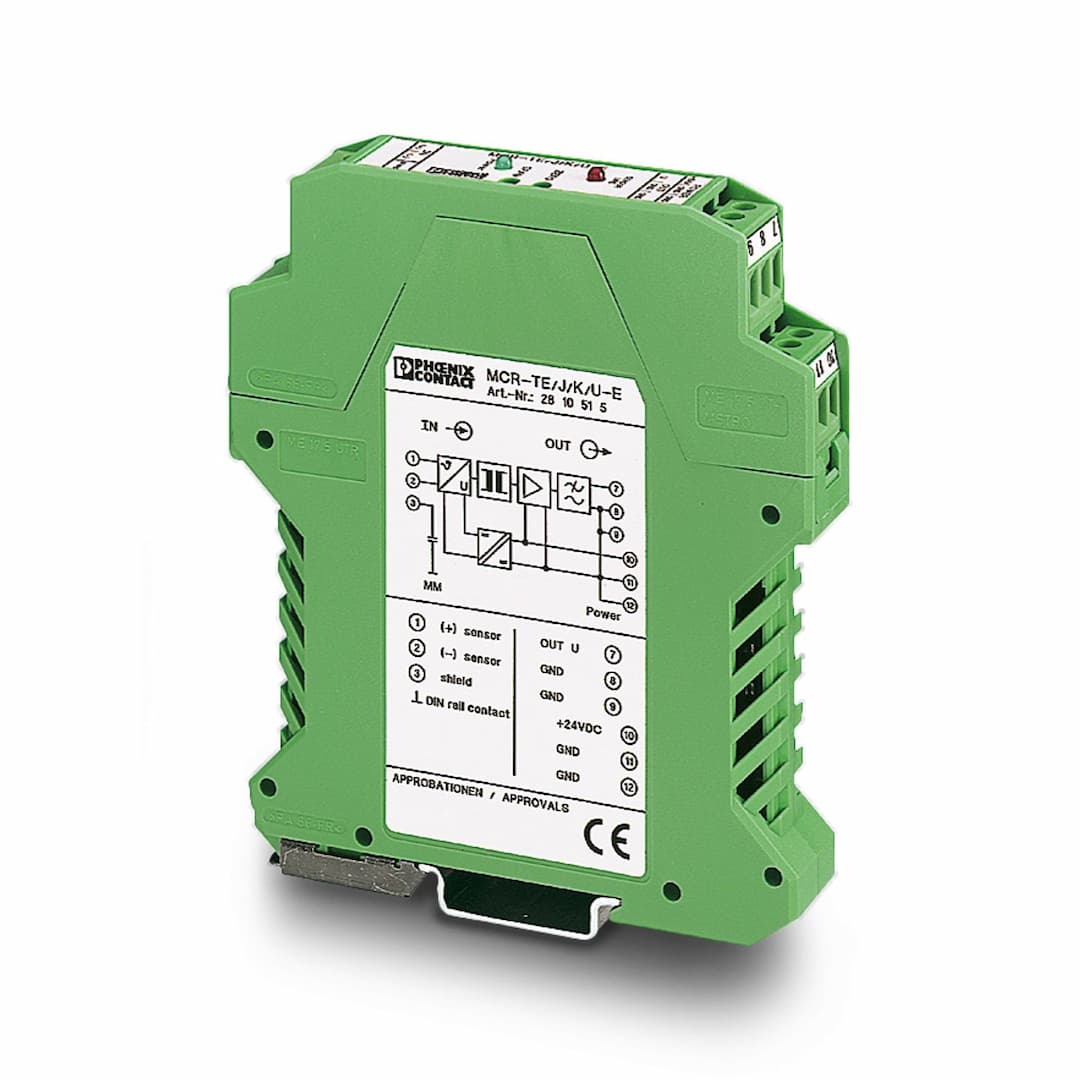

MCR-TE-JK-U-E
Selling Points
- 1High Accuracy: Measures temperature with maximum transmission error ≤ 1.2% for type K and < 2.5% for type J.
- 2Versatile Range: Supports thermocouples type J and K with measurement ranges from 0-400°C to 0-1200°C.
- 3Electrical Isolation: Ensures input is electrically isolated for safe operation.
- 4Configurable Output: Output signal configurable to 0-10 V, with max output voltage 15 V.
- 5CE and UL Compliant: Meets CE and UL standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Temperature transmitter |
Alignment span | ± 5 % (of final value) | Alignment zero | ± 60 K |
Limit frequency (3 dB) | 30 Hz | Typical cold point errors | ± 2.5 K |
Cold point error, max. | ± 4 K | Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) |
Test voltage input/power supply | 1.5 kV AC (50 Hz, 60 s) | Step response (10-90%) | 11 ms |
Maximum temperature coefficient | < 0.02 %/K | Maximum transmission error | ≤ 1.2 % (of end value, for type K)
< 2 % (of end value, for type J, 0 °C ... 400°C and 0 °C ... 800°C)
< 2.5 % (of end value, for type J, 0 °C ... 1000°C and 0 °C ... 1200°C) |
Supply voltage range | 18 V DC ... 30 V DC | Max. current consumption | 20 mA |
Input signal | Temperature | Configurable/programmable | Yes |
Sensor types that can be used (TC) | J, K | Temperature measuring range | 0 °C ... 400 °C
0 °C ... 800 °C
0 °C ... 1000 °C
0 °C ... 1200 °C |
Sensor type: | 0 °C ... 400 °C (fixed setting)
0 °C ... 800 °C (fixed setting)
0 °C ... 1000 °C (fixed setting)
0 °C ... 1200 °C (fixed setting)
0 °C ... 400 °C (fixed setting)
0 °C ... 800 °C (fixed setting)
0 °C ... 1000 °C (fixed setting)
0 °C ... 1200 °C (fixed setting) | Configurable/programmable | Yes |
Voltage output signal | 0 V ... 10 V | Max. voltage output signal | 15 V |
Output voltage with wire break | > 11 V | Load/output load voltage output | ≥ 10 kΩ |
Connection method | Pluggable screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Width | 17.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color | green (RAL 6021) |
Housing material | Polyamide PA non-reinforced | Ambient temperature (operation) | -20 °C ... 65 °C |
Certificate | CE-compliant | Identification | cULus |
Mounting position | any |
Specifications may be subject to change without notice
